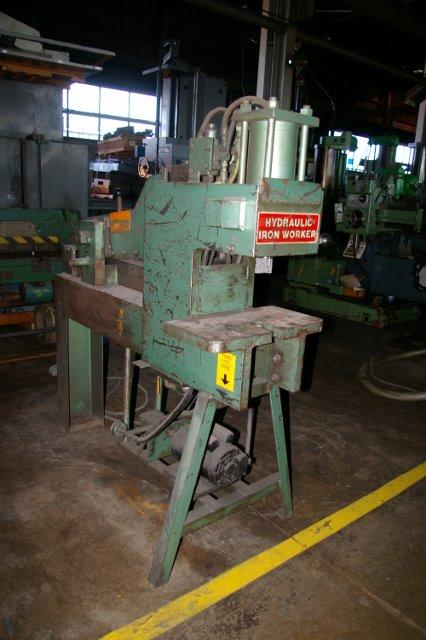

35 TON METAL MUNCHER HYDRAULIC IRONWORKER: STOCK #11078

Stock #: 11078

Equipped With

MODEL MM35

PUNCH CAPACITIES:
 TONS ------------------------------------- 35
 HOLE CAPACITY (DIA. THRU THICKNESS) ------ 1-1/16" THRU 5/16"
 HOLE CAPACITY (DIA. THRU MAX. THICKNESS) - 7/8" THRU 1/2"
 THROAT DEPTH ----------------------------- 7"

SHEARING CAPACITIES:
 ANGLES (90 DEGREES) ---------------------- 3" X 3" X 5/16"
 ROUND BARS ------------------------------- 1"
 SQUARE BARS ------------------------------ 1"
 FLATS ------------------------------------ 3/16" X 16", 1/4" X 15", 5/16" X 14"
   FLATS, CONTINUED ----------------------- 3/8" X 12", 1/2" X 8", 3/4" X 6"
COPER (SQUARE NOTCH) ---------------------- 2-1/16" X 2-1/16" X 5/16"
MAIN DRIVE MOTOR -------------------------- 5 HP 220/1/60


EQUIPPED WITH ---
PUNCH UNIT WITH STRIPPER
COPER/NOTCHER

Buy Machines

35 TON METAL MUNCHER HYDRAULIC IRONWORKER: STOCK #11078

Stock # 11078

Share Machine
Print Details

Machine Specifications

MODEL MM35

PUNCH CAPACITIES:
 TONS ------------------------------------- 35
 HOLE CAPACITY (DIA. THRU THICKNESS) ------ 1-1/16" THRU 5/16"
 HOLE CAPACITY (DIA. THRU MAX. THICKNESS) - 7/8" THRU 1/2"
 THROAT DEPTH ----------------------------- 7"

SHEARING CAPACITIES:
 ANGLES (90 DEGREES) ---------------------- 3" X 3" X 5/16"
 ROUND BARS ------------------------------- 1"
 SQUARE BARS ------------------------------ 1"
 FLATS ------------------------------------ 3/16" X 16", 1/4" X 15", 5/16" X 14"
   FLATS, CONTINUED ----------------------- 3/8" X 12", 1/2" X 8", 3/4" X 6"
COPER (SQUARE NOTCH) ---------------------- 2-1/16" X 2-1/16" X 5/16"
MAIN DRIVE MOTOR -------------------------- 5 HP 220/1/60


EQUIPPED WITH ---
PUNCH UNIT WITH STRIPPER
COPER/NOTCHER

Specifications
Dimensions 096" X 048" X 085"
Weight 1860 pounds
