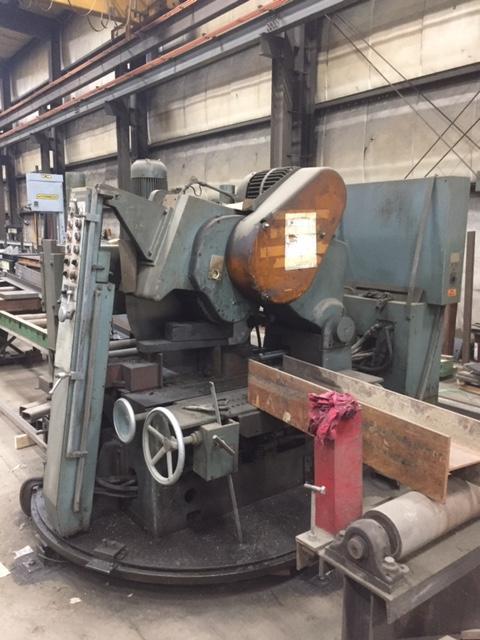

35.8" KALTENBAH MODEL #HDM 800 MITRE AUTO FEED COLD SAW WITH CONVEYOR: STOCK 11849

Stock #: 11849

Equipped With

Serial 19841
Model: HDM 800
Maximum Blade Diameter: 35.8″ (910mm)
Cutting Capacity – Round @ 90°: 11.8″ (300mm)
Cutting Capacity – Squares @ 90°: 9.4″ (240 mm)
Cutting Capacity – Rectangles @ 90°: 23.6″ x 7.9″ (600mm x 200mm)
Feed Speed: 0 to 1000 mm / Min.
Blade Speed: 43 / 86 SFPM
Hydraulic Horizontal Vise
Motorized Top Clamp
Variable Down feed Rate
Coolant Pump
Two Speed Motor
In feed Conveyor 5 stands
Out feed Conveyor 21'

Buy Machines

35.8" KALTENBAH MODEL #HDM 800 MITRE AUTO FEED COLD SAW WITH CONVEYOR: STOCK 11849

Stock # 11849

Share Machine
Print Details

Machine Specifications

Serial 19841
Model: HDM 800
Maximum Blade Diameter: 35.8″ (910mm)
Cutting Capacity – Round @ 90°: 11.8″ (300mm)
Cutting Capacity – Squares @ 90°: 9.4″ (240 mm)
Cutting Capacity – Rectangles @ 90°: 23.6″ x 7.9″ (600mm x 200mm)
Feed Speed: 0 to 1000 mm / Min.
Blade Speed: 43 / 86 SFPM
Hydraulic Horizontal Vise
Motorized Top Clamp
Variable Down feed Rate
Coolant Pump
Two Speed Motor
In feed Conveyor 5 stands
Out feed Conveyor 21'

Specifications
Max Blade Dia. 36 inches
Dimensions 104″ L x 44″ W x 80″ H
Weight 7500 ounces
