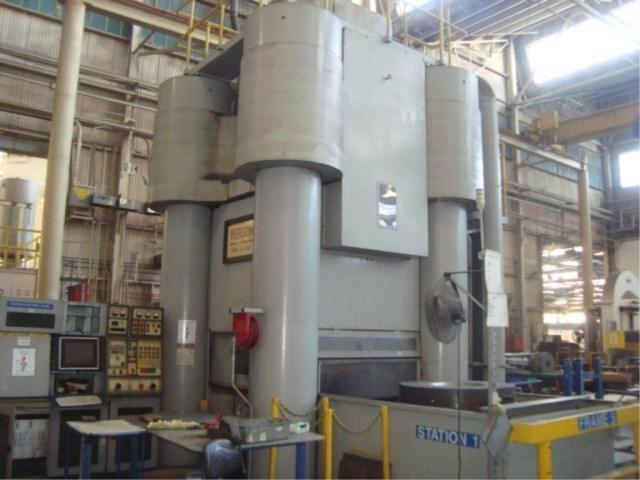

VERSON "FRAME-5" HYDROFORM PRESS: STOCK#12699

Stock #: 12699

Equipped With

SERIAL .................. 2G422
MODEL ................... "5-FRAME"
FORMING FORCE ........... 3,300 TON
STRIPING FORCE .......... 15 TON
BLANK DIAMETER .......... 32"
DRAW DEPTH .............. 12"
PUNCH DIAMETER .......... 26"
PRESSURE ................ 15,000 PSI MAX
GAIN PRESSURE ........... 15,000 PSI MAX
SPEED CLOSING ........... 480 IPM
SPEED FORM .............. 52 IPM
SPEED RETURN ............ 480 IPM
SPEED STRIPPING ......... 262 IPM
PUNCH RAPID ADVANCE ..... 262 IPM
REMOTE CONTROL STATION .. YES
SHUTTLE TABLE ........... YES
CO2 FIRE SUPPRESSION .... YES
MAIN MOTORS ............. (2) 350 HP
PILOT MOTOR ............. 25 HP
FILTER/COOLER MOTOR ..... 10 HP

Buy Machines

VERSON "FRAME-5" HYDROFORM PRESS: STOCK#12699

Stock # 12699

Share Machine
Print Details

Machine Specifications

SERIAL .................. 2G422
MODEL ................... "5-FRAME"
FORMING FORCE ........... 3,300 TON
STRIPING FORCE .......... 15 TON
BLANK DIAMETER .......... 32"
DRAW DEPTH .............. 12"
PUNCH DIAMETER .......... 26"
PRESSURE ................ 15,000 PSI MAX
GAIN PRESSURE ........... 15,000 PSI MAX
SPEED CLOSING ........... 480 IPM
SPEED FORM .............. 52 IPM
SPEED RETURN ............ 480 IPM
SPEED STRIPPING ......... 262 IPM
PUNCH RAPID ADVANCE ..... 262 IPM
REMOTE CONTROL STATION .. YES
SHUTTLE TABLE ........... YES
CO2 FIRE SUPPRESSION .... YES
MAIN MOTORS ............. (2) 350 HP
PILOT MOTOR ............. 25 HP
FILTER/COOLER MOTOR ..... 10 HP
