Machine Information

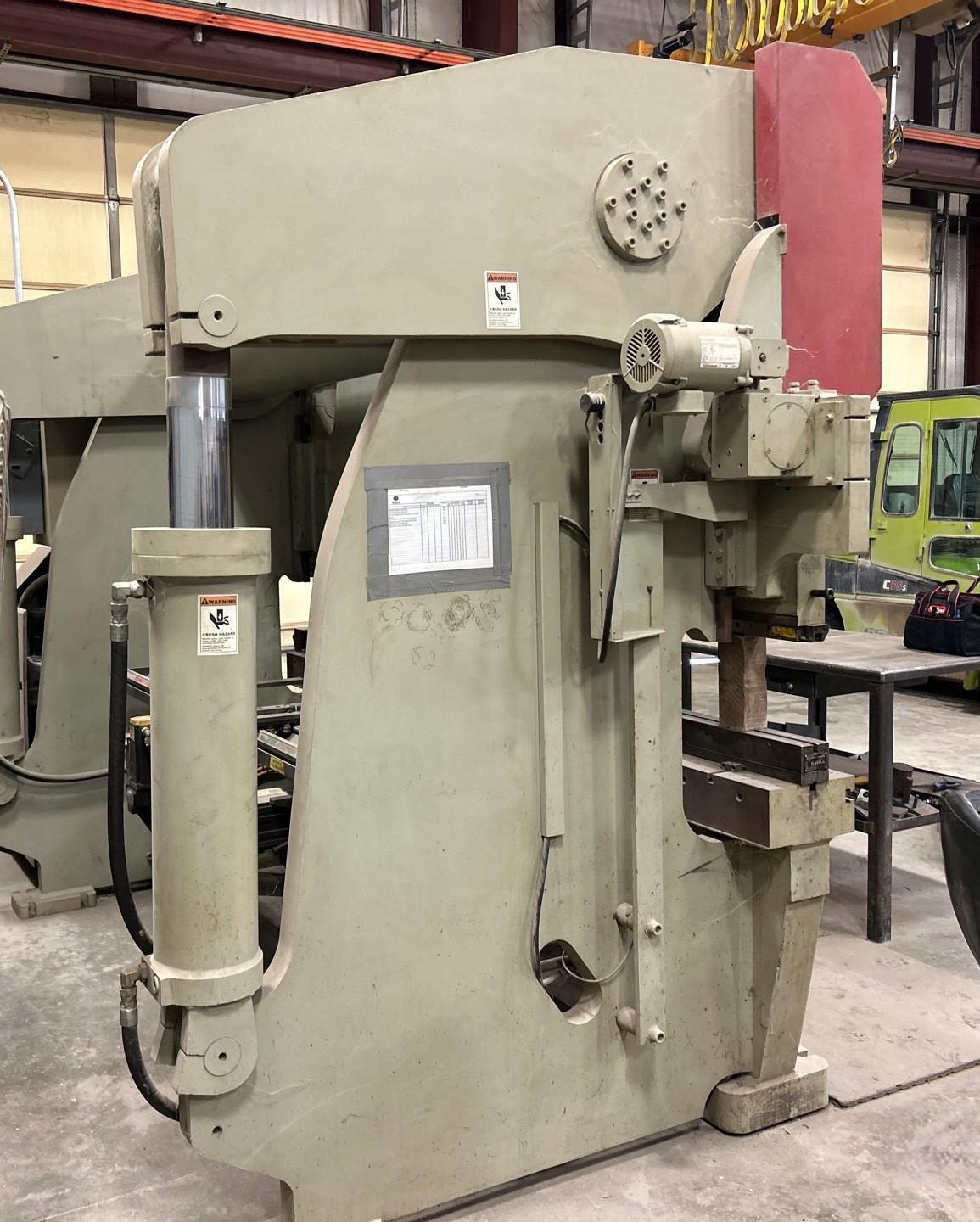

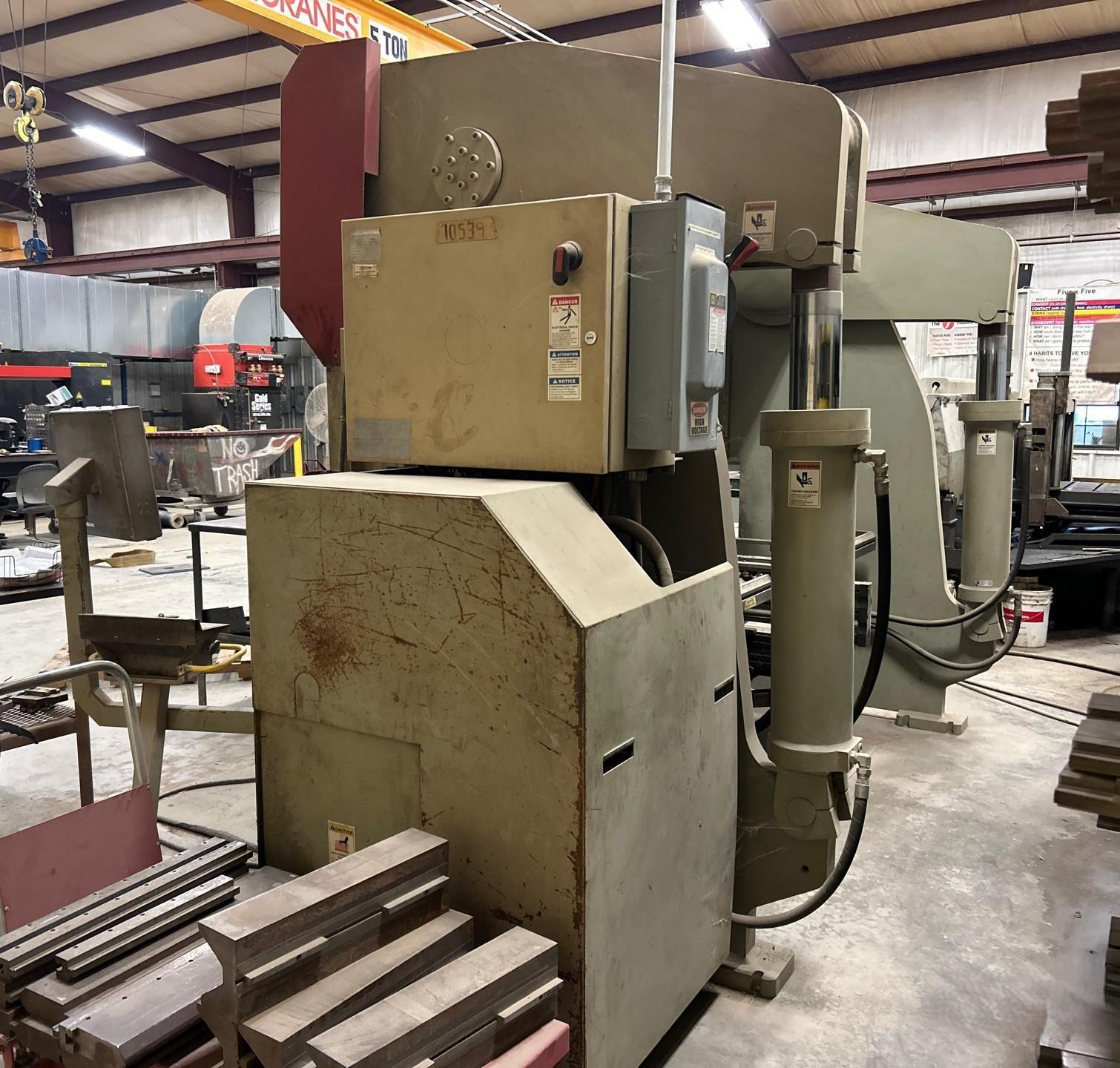

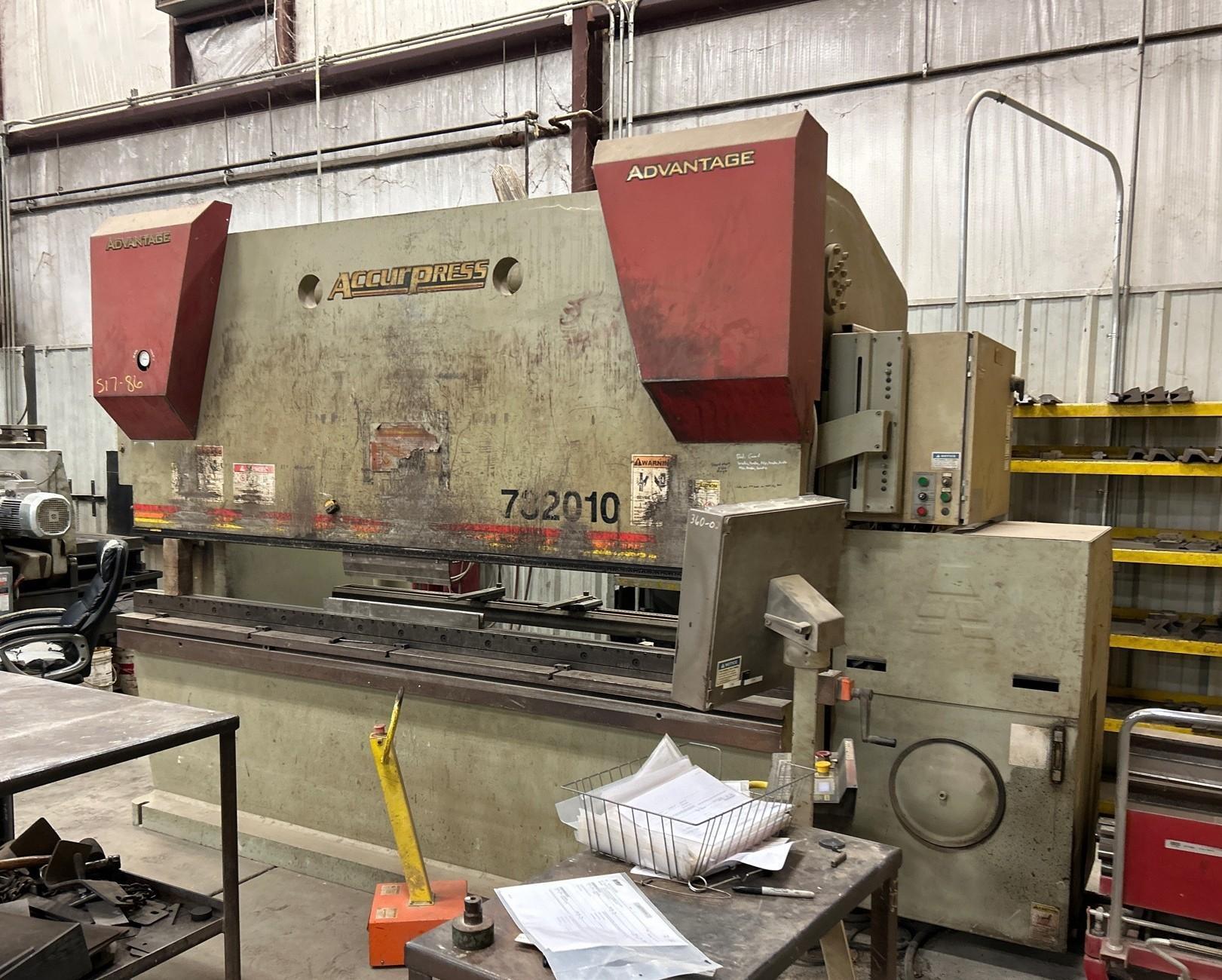

320 TON X 10' ACCURPRESS MODEL #732010 ADVANTAGE HYDRAULIC PRESS BRAKE, W/ ETS 3000 CONTROLS, NEW 2010: YOBRO #24910

Stock #: 24910

Equipped With

SERIAL ............................ 10528
MODEL ............................. 732012 ADVANTAGE
YEAR NEW .......................... 2010
CAPACITY .......................... 320 TONS
LENGTH OF BED & RAM ............... 120" (10 FT)
DISTANCE BETWEEN HOUSING .......... 102"
STROKE ............................ 10"
OPEN HEIGHT ....................... 18"
CLOSED HEIGHT ..................... 8
STROKES PER MINUTE FULL STROKE .... 6
THROAT ............................ 10"
RAM SPEED (FAST APPROACH) ......... 65 IPM
RAM SPEED (SLOW BEND) ............. 19 IPM
RAM SPEED (FAST RETURN) ........... 112"
HYDRAULIC DIE CLAMPING ............ YES

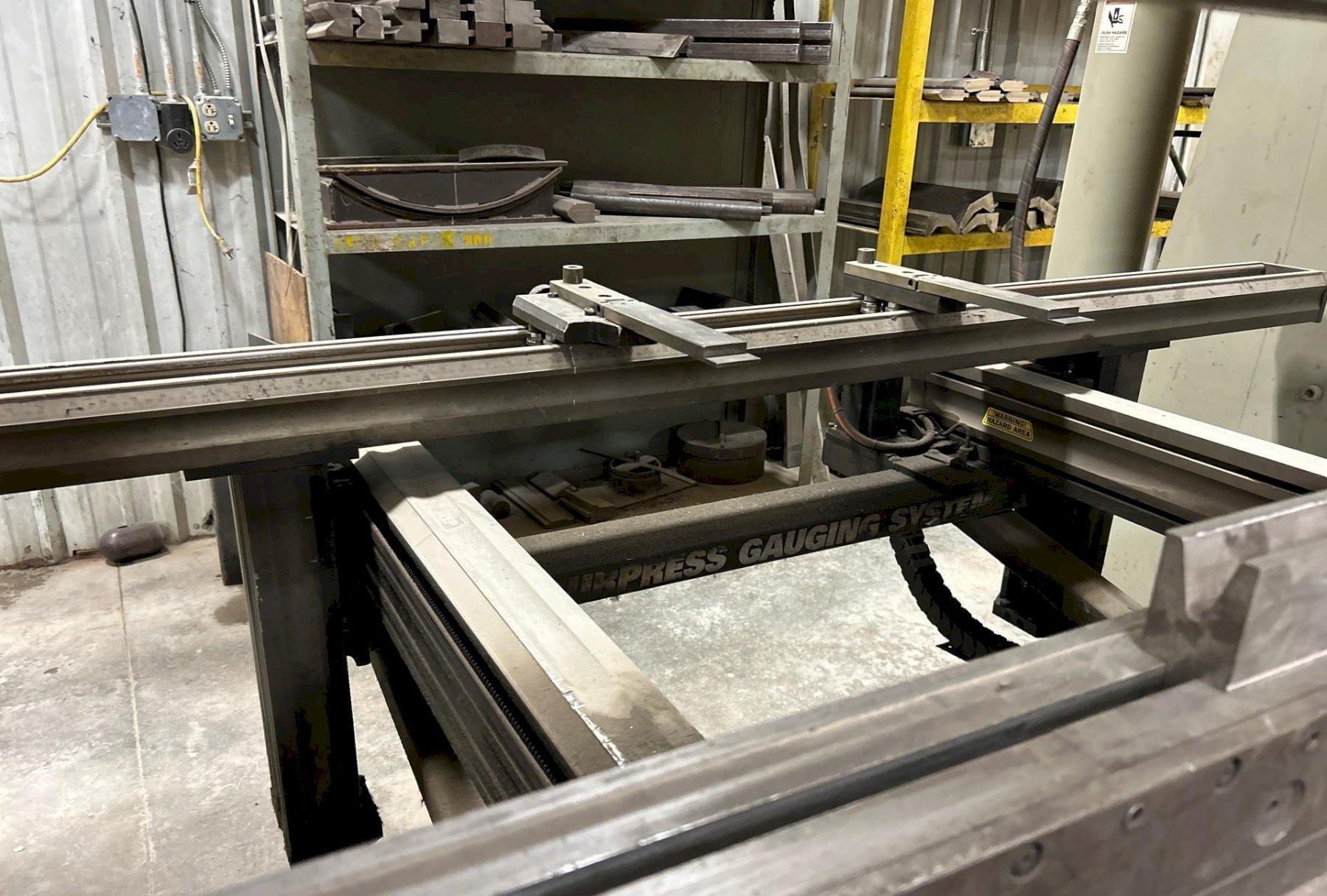

CNC BACK GAUGE CONTROL 2 AXIS ..... ETS 3000

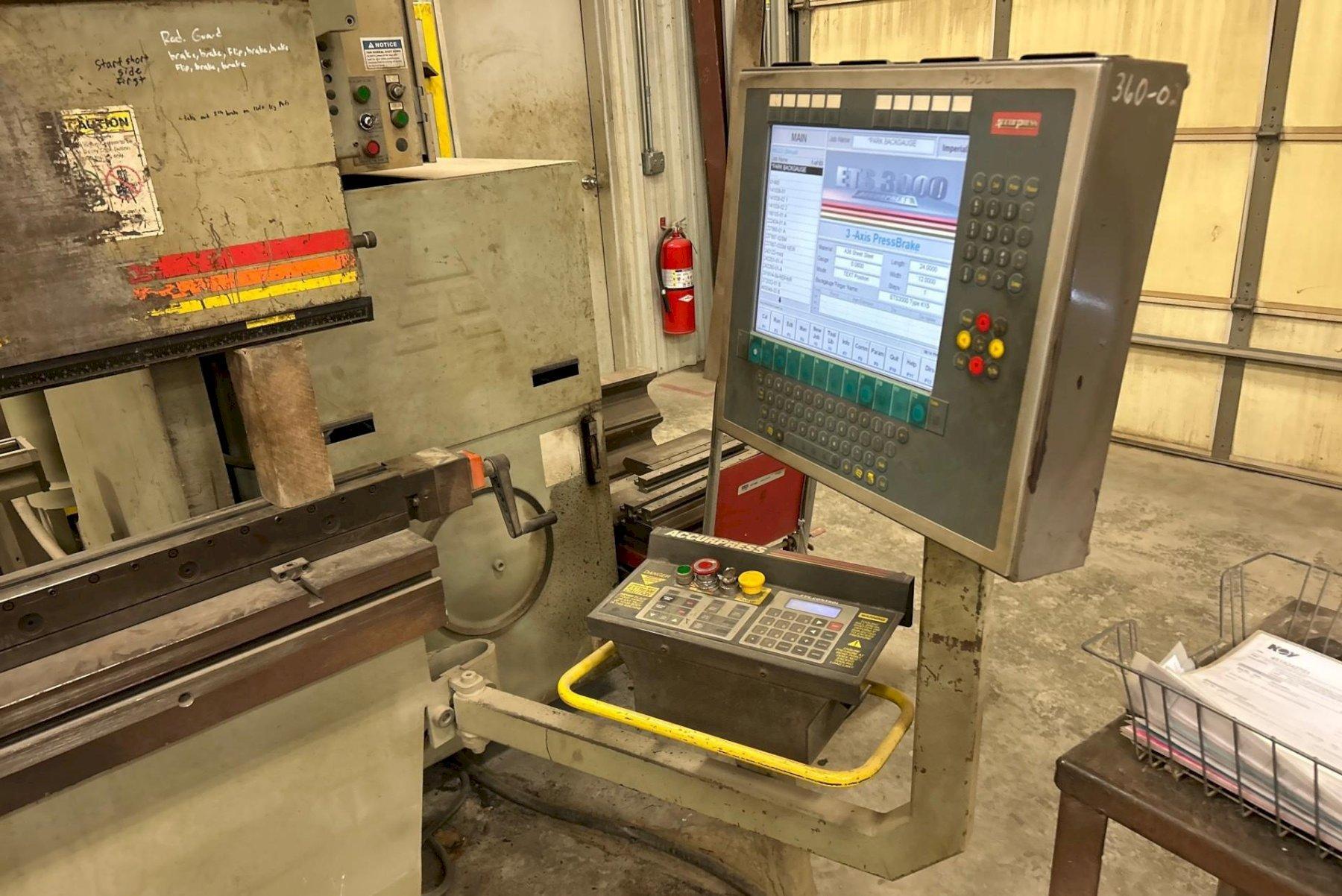

TOUCH SCREEN CONTROL STATION ...... YES
ELECTRIC FOOT PEDAL ............... YES
FLOOR STANDING - NO PIT ........... *** YES ***
MOTOR ............................. 40 HORSEPOWER
