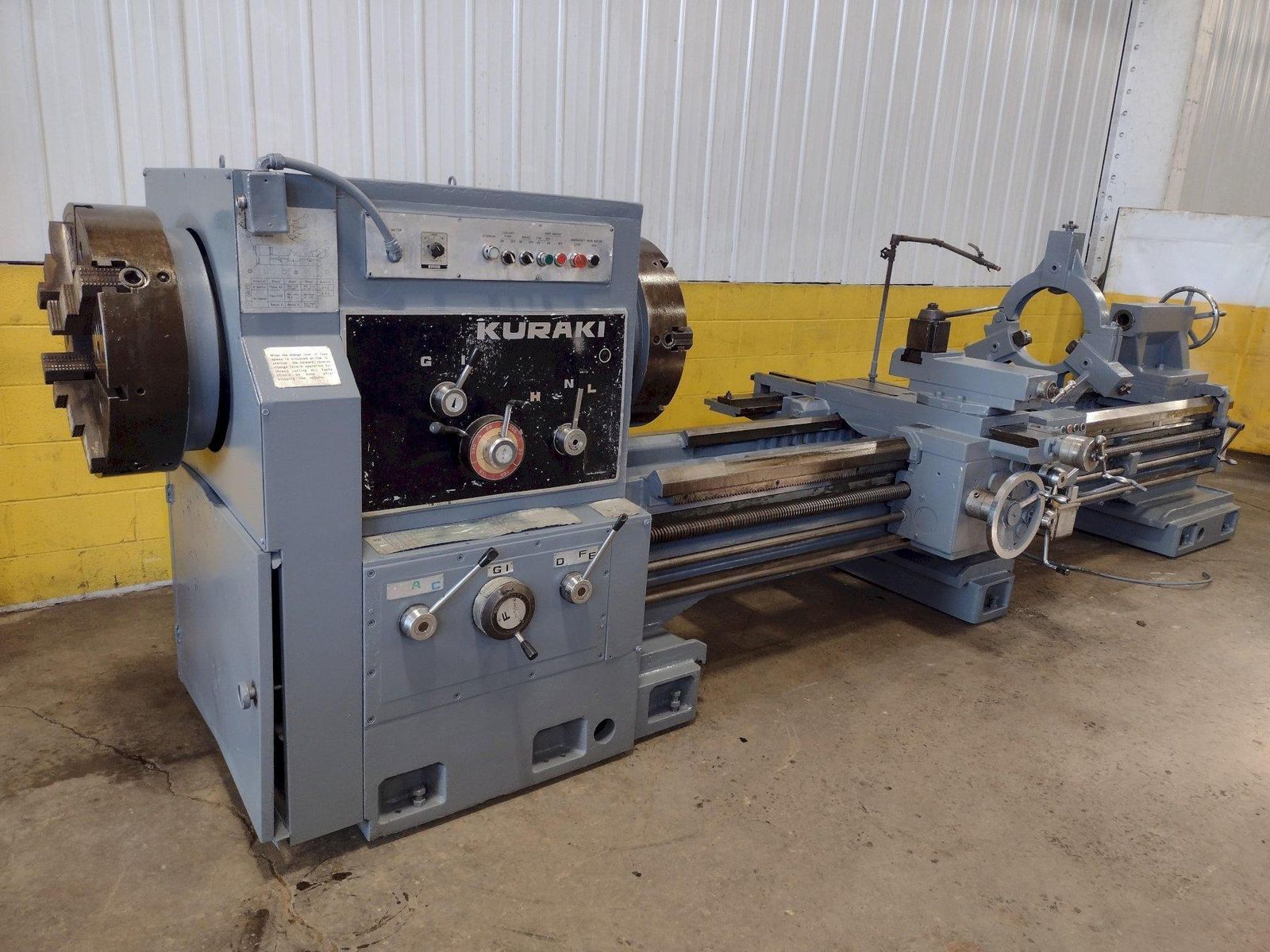

Overview

SERIAL ................... 289
MODEL .................... LC-403
YEAR NEW ................. 1982
SWING OVER WAYS .......... 32"
SWING OVER CROSSLIDE ..... 22"
CENTER DISTANCE .......... 120"
SPINDLE HOLE DIAMETER .... *** 12.5" ***
SPINDLE NOSE ............. A2-20
SPINDLE SPEEDS ........... (12) 6 TO 350 RPM
FRONT & REAR CHUCK ....... 24", 4-JAW
STEADY RESTS ............. 14", 3-POINT ROLLER
FEEDS .................... (48) .003 TO .207 IPR
INCH THREADS ............. (41) 1.75 TO 56 TPI
METRIC THREADS ........... (41) 0.75 TO 28 MM
TAPER ATTACHMENT ......... YES
RAPID TRAVERSE ........... YES
THREAD DIAL .............. YES
MOTOR SPINDLE JOG ........ YES
AJUSTABLE BRAKE .......... YES
E-STOP BUTTON ............ YES
COOLANT .................. YES
MOTOR .................... 30 HP
