Machine Information

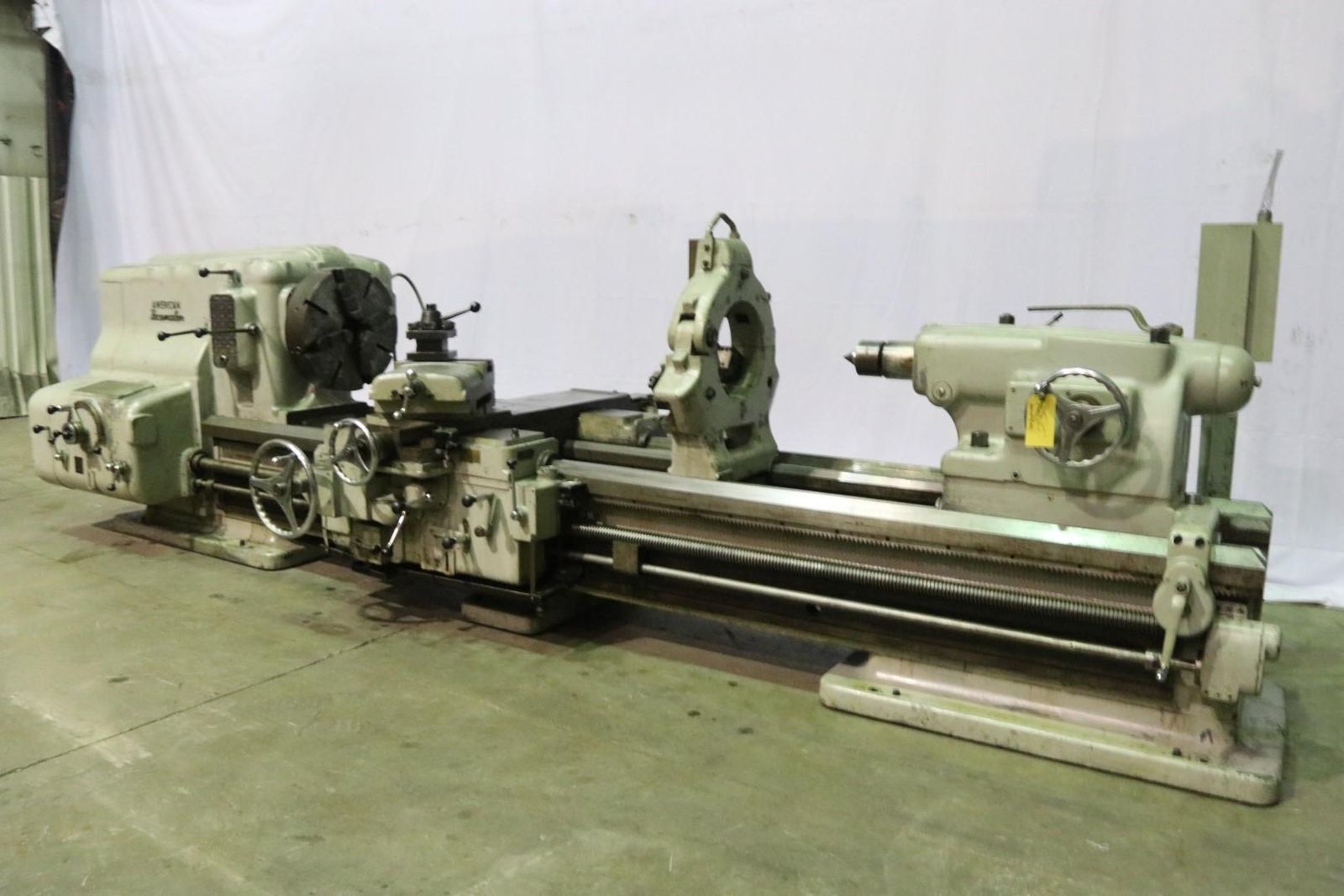

36" X 108" AMERICAN PACEMAKER HEAVY DUTY ENGINE LATHE: STOCK #10535

Stock #: 10535

Equipped With

SERIAL ...................... 70757-43
MODEL ....................... HEAVY DUTY PACEMAKER
SWING OVER WAYS ............. 36"
SWING OVER CROSSLIDE ........ 24"
DISTANCE BETWEEN CENTERS .... 108"
SPEEDS ...................... (18) 7 TO 600 RPM
DIAMETER OF SPINDLE HOLE .... 2-3/4"
THREADS ..................... (60) 1/2 TO 30 TPI
FEEDS ....................... (60) .0040 TO .240 IPR
LEADS ....................... (60) .0333 TO 2
CHUCK ....................... 24" 4 JAW
STEADY REST ................. 14" ROLLER TYPER
TAILSTOCK ................... #6 MT
SPINDLE AUTO JOB BUTTON ..... YES
TAPER ATTACHMENT ............ YES
COOLANT ..................... YES
4 WAY TOOLPOST .............. YES
HARD WAYS ................... YES
THREAD DIAL ................. YES
MOTOR ....................... 25 HP

DIMENSIONS: 228" LONG X 84" WIDE X 72" HIGH
