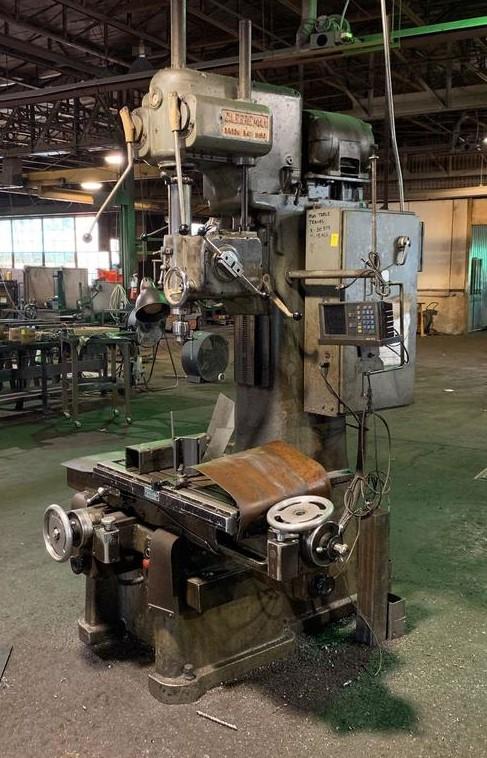

32" CLEEREMAN SINGLE SPINDLE LAYOUT DRILL: STOCK #10551

Stock #: 10551

Equipped With

MODEL ............................... LAYOUT
DEPTH OF THROAT ..................... 14"
WORKING SURFACE OF TABLE ............ 35-1/2" X 18"
SPINDLE SPEEDS ...................... (24)4 TO 1500 RPM
FEEDS ............................... .0023 TO .023 IPR
LONGITUDINAL TABLE TRAVEL ........... 28"
CROSS TABLE TRAVEL .................. 16"
TRAVEL OF HEAD ON COLUMN ............ 16"
DISTANCE SPINDLE TO TABLE ........... 12" MIN, 24" MAX
SPINDLE TRAVEL ...................... 8"
DIAMETER OF SPINDLE ................. 3-3/4"
FORWARD AND REVERSE ................. YES
DIGITAL READOUTS .................... 2 AXIS ACCURITE

COOLANT ............................. YES
FLOOR TO TABLE ...................... 34"

MAIN MOTOR .......................... 5 HORSEPOWER

Buy Machines

32" CLEEREMAN SINGLE SPINDLE LAYOUT DRILL: STOCK #10551

Stock # 10551

Share Machine
Print Details

Machine Specifications

MODEL ............................... LAYOUT
DEPTH OF THROAT ..................... 14"
WORKING SURFACE OF TABLE ............ 35-1/2" X 18"
SPINDLE SPEEDS ...................... (24)4 TO 1500 RPM
FEEDS ............................... .0023 TO .023 IPR
LONGITUDINAL TABLE TRAVEL ........... 28"
CROSS TABLE TRAVEL .................. 16"
TRAVEL OF HEAD ON COLUMN ............ 16"
DISTANCE SPINDLE TO TABLE ........... 12" MIN, 24" MAX
SPINDLE TRAVEL ...................... 8"
DIAMETER OF SPINDLE ................. 3-3/4"
FORWARD AND REVERSE ................. YES
DIGITAL READOUTS .................... 2 AXIS ACCURITE

COOLANT ............................. YES
FLOOR TO TABLE ...................... 34"

MAIN MOTOR .......................... 5 HORSEPOWER
