Machine Information

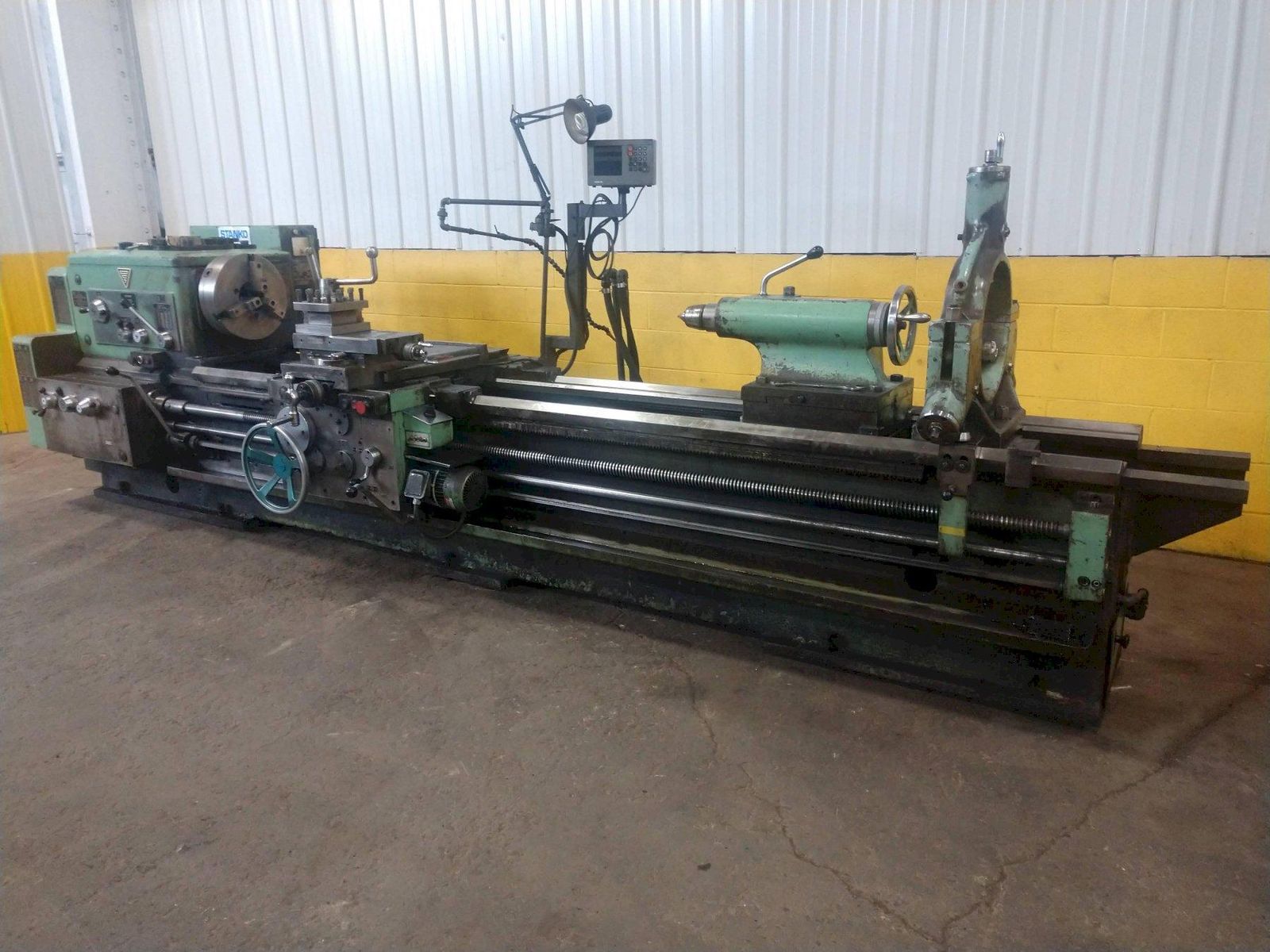

28/36" X 120" STANKO MODEL #1M63B GAP BED ENGINE LATHE: STOCK #14670

Stock #: 14670

Equipped With

SERIAL ...................... 3385
MODEL ....................... 1M63B
SWING OVER BED .............. 28"
SWING OVER CROSSLIDE ........ 14-1/2"
SWING IN GAP ................ 36"
LENGTH OF GAP ............... 14"
DISTANCE BETWEEN CENTERS .... 120"
SPINDLE BORE ................ 3.25"
SPEEDS ...................... (24) 10 TO 1250 RPM
THREADS ..................... .25 TO 28 TPI
THREADS, METRIC ............. .25 TO 192 MM
FEEDS ....................... .0010 TO .1575 IPR
RAPID TRAVERSE ON CARRIAGE .. 4 WAY
RAPID TRAVERSE MOTOR ........ 1.5 HP
CHUCK .......................
16" 3-JAW
DIGITAL READ OUT ............ HEIDENHAIN 2-AXIS
STEADY REST ................. 15" 3 POINT ROLLER
4 WAY TOOL HOLDER ........... YES
COOLANT ..................... YES
E-STOP BUTTON ............... YES
MAIN MOTOR .................. 20 HP

Buy Machines

28/36" X 120" STANKO MODEL #1M63B GAP BED ENGINE LATHE: STOCK #14670

Stock # 14670

Share Machine
Print Details

Machine Specifications

SERIAL ...................... 3385
MODEL ....................... 1M63B
SWING OVER BED .............. 28"
SWING OVER CROSSLIDE ........ 14-1/2"
SWING IN GAP ................ 36"
LENGTH OF GAP ............... 14"
DISTANCE BETWEEN CENTERS .... 120"
SPINDLE BORE ................ 3.25"
SPEEDS ...................... (24) 10 TO 1250 RPM
THREADS ..................... .25 TO 28 TPI
THREADS, METRIC ............. .25 TO 192 MM
FEEDS ....................... .0010 TO .1575 IPR
RAPID TRAVERSE ON CARRIAGE .. 4 WAY
RAPID TRAVERSE MOTOR ........ 1.5 HP
CHUCK .......................
16" 3-JAW
DIGITAL READ OUT ............ HEIDENHAIN 2-AXIS
STEADY REST ................. 15" 3 POINT ROLLER
4 WAY TOOL HOLDER ........... YES
COOLANT ..................... YES
E-STOP BUTTON ............... YES
MAIN MOTOR .................. 20 HP

Specifications
Dimensions 18' X 60" X 72" HIGH
Weight 14500 pounds
