Machine Information

30,000 LBS X 36" PERFECTO COIL FEED LINE, COIL REEL UNCOILER & STRAIGHTENER: YOBRO #24871

Stock #: 24871

Equipped With

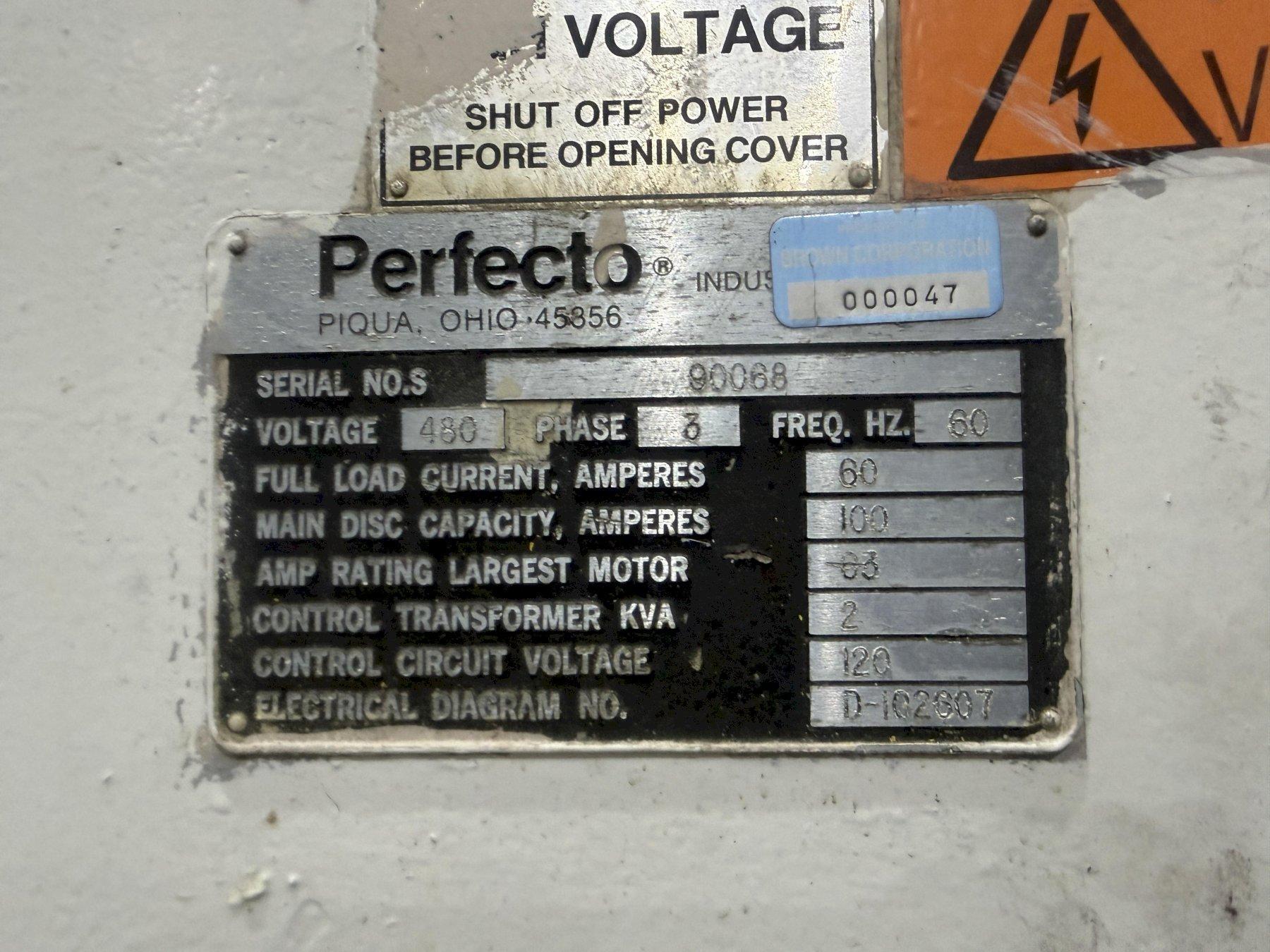

Serial # RS-90064
Model: RS30-36B . 28-36-7

Description: Perfecto Coil Feed Line 30,000 Lbs. x 36" Wide
Coil weight capacity:: 30000 pounds
Stock Width Capacity: 36 inches
Max Stock Thickness Capacity At Full Width: .104 inches
Minimum expansion range:: 20 inches
Maximum expansion range:: 24 inches
Coil O.D. capacity:: 72 inches

Stock thickness capacities:
Max stock thickness at 36" wide:  .104"
Max stock thickness at 18" wide: .140"

Perfecto Coil Reel Model No. RS30-36B
Three leaf mandrel
Hydraulic mandrel expansion
Threading drive for jog forward and reverse
Air brake (adjustable tensioning)
Traveling coil load car
Powered lift and travel

Perfecto Powered Coil Straightener Model No. 28-36-7
Entry and exit pinch rolls with air operated adjustment
Seven straightening rolls x 2.8" diameter
Back up support rollers on upper and lower straightening rolls
Individual upper roll adjustments
Coil hold down arm with motorized end wheel
Stock peeler table
Adjustable stock width edge guides
AC VFD drive and control system
Operator's control station
Jog forward and reverse
Auto / Run cycle - loop control
Perfecto Exit Threading Table
