Machine Information

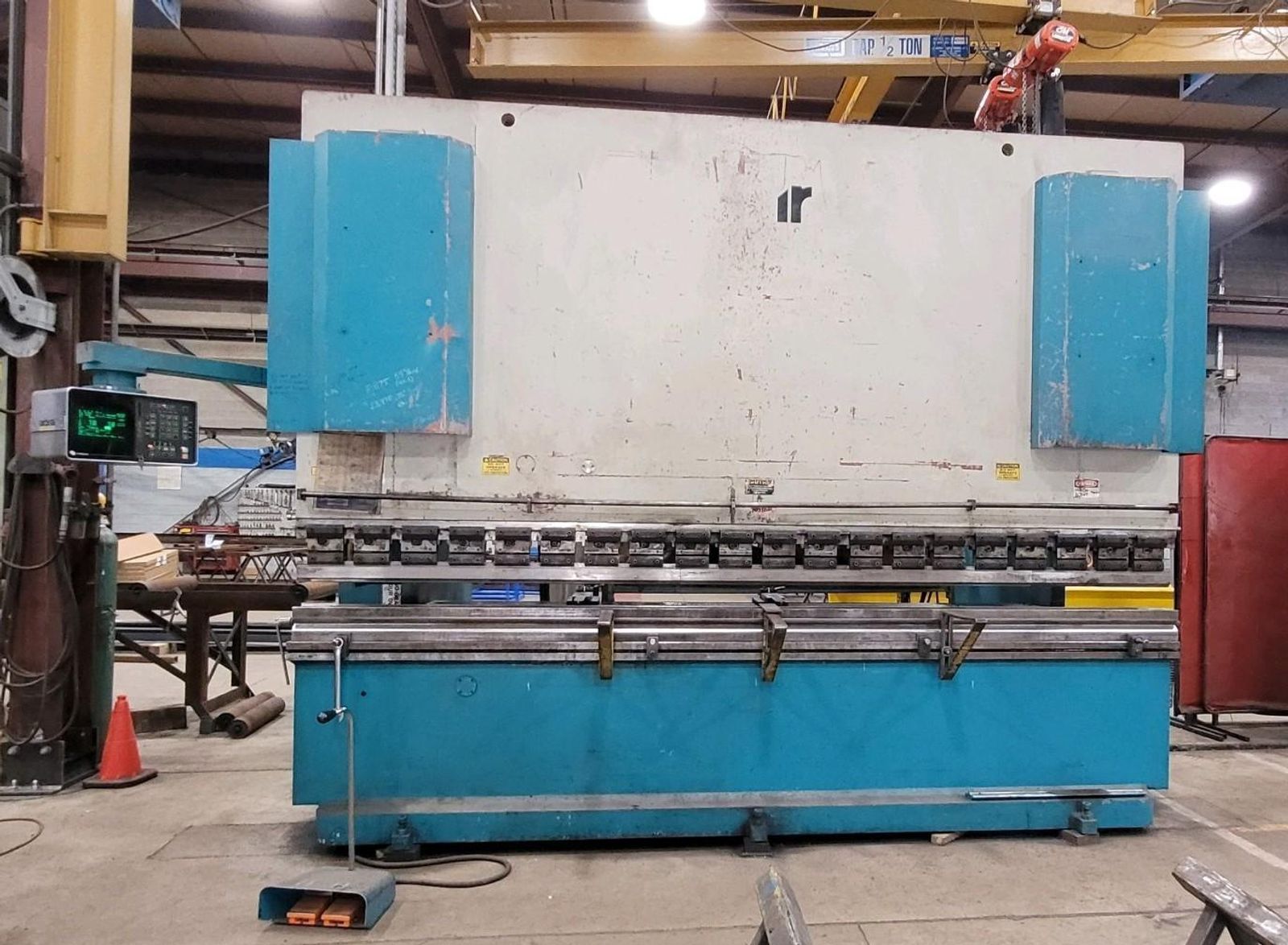

300 TON X 13' ADIRA MODEL #QHD-30040 CNC HYDRAULIC PRESS BRAKE, NEW 1997: STOCK #17161

Stock #: 17161

Equipped With

SERIAL ...................... 4643/8722
MODEL ....................... QHD-30040
YEAR NEW .................... 1997
CAPACITY .................... 300 TON
OVERALL BED & RAM LENGTH .... 13' (157" OR 4000mm)
DISTANCE BETWEEN HOUSINGS ... 11'8"
STROKE OF RAM (ADJUSTABLE) .. 5/8" TO 7-7/8"
RAM SPEED (ADVANCE) ......... 3" PER SECOND (15 FPM)
RAM SPEED (WORKING PRESS) ... 3/8" PER SECOND (1.75 FPM)
TIME UNDER LOAD PRESSURE .... ADJUSTABLE
CNC CONTROLS ................ CYBELEC DNC70
BACK GUAGE LENGTH ........... 48"
2 AXIS BACK GAUGE ........... X & R
OPERATING RUN MODES ......... INCH, SINGLE, SINGLE W/ AUTO RETURN
BOTTOM DIE .................. 13' 4-WAY DIE
TOP DIE ..................... GOOSNECK PUNCH
UPPER DIE CLAMPING .......... AMERICAN
FLOOR STANDING .............. YES
FOOT PEDAL STATION .......... YES
E-STOP BUTTON ............... YES
MOTOR ....................... 25 HP


Buy Machines

300 TON X 13' ADIRA MODEL #QHD-30040 CNC HYDRAULIC PRESS BRAKE, NEW 1997: STOCK #17161

Stock # 17161

Share Machine
Print Details

Machine Specifications

SERIAL ...................... 4643/8722
MODEL ....................... QHD-30040
YEAR NEW .................... 1997
CAPACITY .................... 300 TON
OVERALL BED & RAM LENGTH .... 13' (157" OR 4000mm)
DISTANCE BETWEEN HOUSINGS ... 11'8"
STROKE OF RAM (ADJUSTABLE) .. 5/8" TO 7-7/8"
RAM SPEED (ADVANCE) ......... 3" PER SECOND (15 FPM)
RAM SPEED (WORKING PRESS) ... 3/8" PER SECOND (1.75 FPM)
TIME UNDER LOAD PRESSURE .... ADJUSTABLE
CNC CONTROLS ................ CYBELEC DNC70
BACK GUAGE LENGTH ........... 48"
2 AXIS BACK GAUGE ........... X & R
OPERATING RUN MODES ......... INCH, SINGLE, SINGLE W/ AUTO RETURN
BOTTOM DIE .................. 13' 4-WAY DIE
TOP DIE ..................... GOOSNECK PUNCH
UPPER DIE CLAMPING .......... AMERICAN
FLOOR STANDING .............. YES
FOOT PEDAL STATION .......... YES
E-STOP BUTTON ............... YES
MOTOR ....................... 25 HP


Videos
Specifications
Dimensions 190" X 94" X 136" HIGH
Weight 42000 pounds
