Machine Information

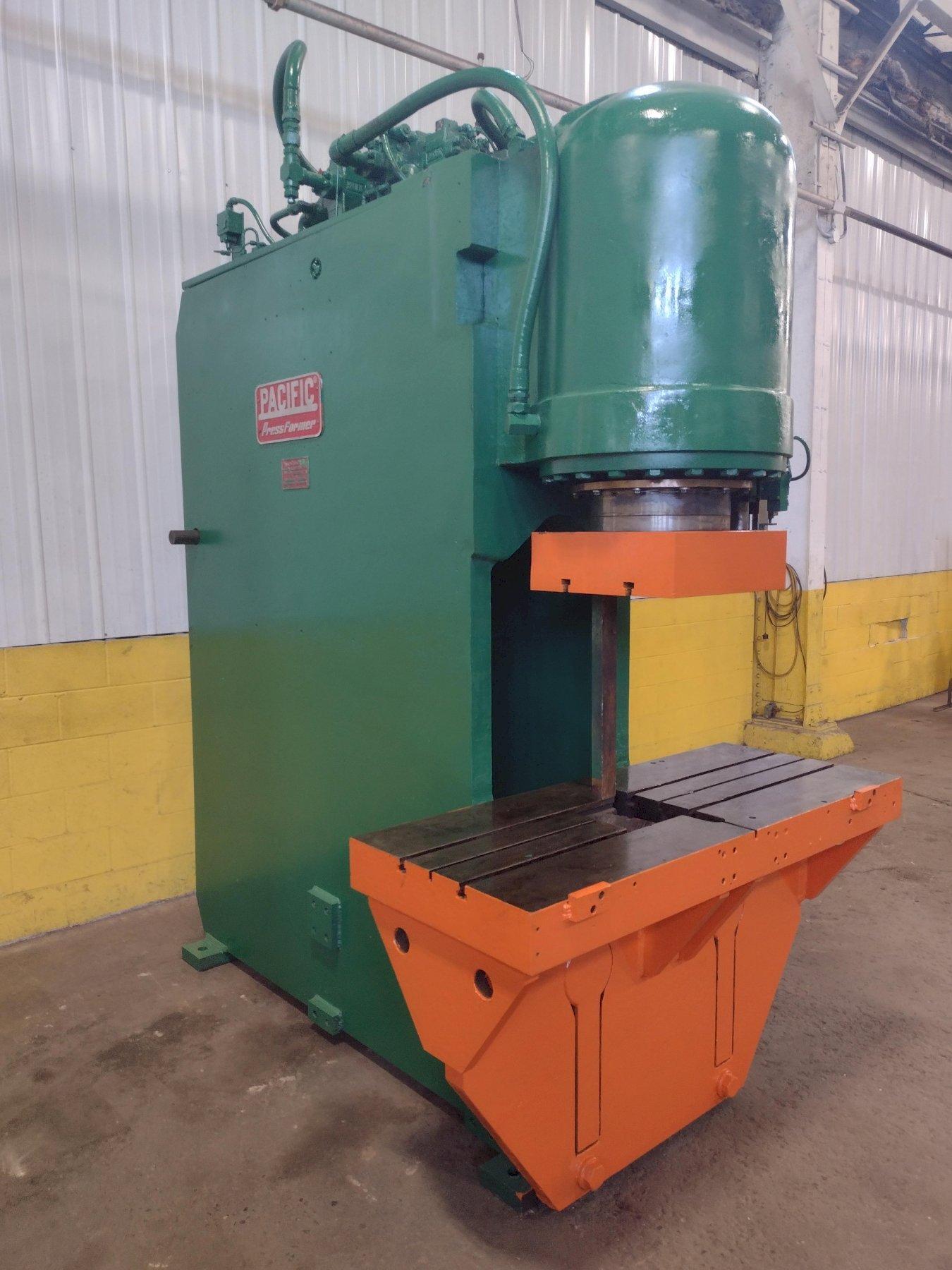

300 TON PACIFIC PRESSFORMER MODEL #300PF HYDRAULIC C-FRAME PRESS: STOCK#14883

Stock #: 14883

Equipped With

SERIAL ..................... 5556
NEW ........................ 1973
MODEL ...................... 300 PF
CAPACITY ................... 300 TON
STROKE ..................... 12"
OPEN HEIGHT ................ 24"
CLOSED HEIGHT .............. 12"
BED AREA ................... 24" X 60"
RAM AREA ................... 18" X 18"
RAM & BED T-SLOTTED ........ YES
PASS HEIGHT ................ 34"
THROAT ..................... 14"
DISTANCE BETWEEN HOUSINGS .. 20"
ADVANCE SPEEDS ............. 72 & 36 IPM
RETURN SPEED ............... 72 IPM
FLUSH FLOOR DESIGN ......... YES
MOTOR ...................... 40 HP

Buy Machines

300 TON PACIFIC PRESSFORMER MODEL #300PF HYDRAULIC C-FRAME PRESS: STOCK#14883

Stock # 14883

Share Machine
Print Details

Machine Specifications

SERIAL ..................... 5556
NEW ........................ 1973
MODEL ...................... 300 PF
CAPACITY ................... 300 TON
STROKE ..................... 12"
OPEN HEIGHT ................ 24"
CLOSED HEIGHT .............. 12"
BED AREA ................... 24" X 60"
RAM AREA ................... 18" X 18"
RAM & BED T-SLOTTED ........ YES
PASS HEIGHT ................ 34"
THROAT ..................... 14"
DISTANCE BETWEEN HOUSINGS .. 20"
ADVANCE SPEEDS ............. 72 & 36 IPM
RETURN SPEED ............... 72 IPM
FLUSH FLOOR DESIGN ......... YES
MOTOR ...................... 40 HP

Specifications
Weight 23000 pounds
