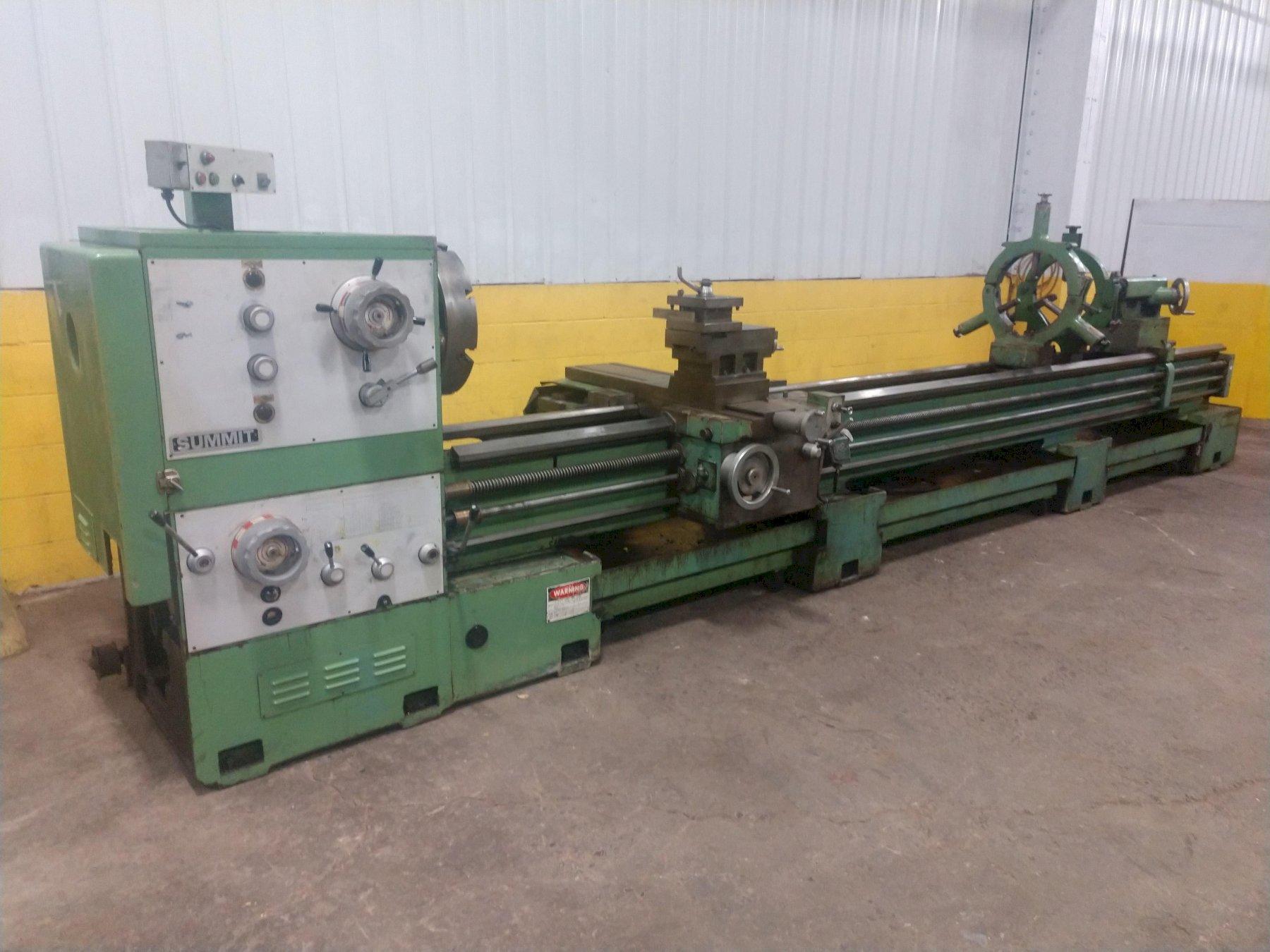

30" x 210" SUMMIT MODEL #30-4-200 GEARED HEAD ENGINE LATHE: STOCK #14146

Stock #: 14146

Equipped With

MODEL ........................... 30-4-200
SPINDLE HOLE .................... 4"
SWING OVER WAYS ................. 30"
SWING OVER CROSS SLIDE .......... 20"
SWING IN GAP .................... 40-1/2"
LENGTH OF GAP ................... 15"
DISTANCE BETWEEN CENTERS ........ 200"
SPINDLE SPEEDS .................. (16) 14 TO 1010 RPM
DIAMETER OF SPINDLE HOLE ........ 4-1/8"
THREADS STANDARD ................ .25 TO 56 TPI
THREADS METRIC .................. .875 TO 32 MM
FEEDS STANDARD .................. .002 TO .032 IPR
FEEDS METRIC .................... .25 TO 14 MMPR
TAILSTOCK TAPER ................. #5MT
CHUCK ........................... 4-JAW
STEADY REST ..................... YES
TAPER ATTACHMENT ................ YES
HARD WAYS ....................... YES
RAPID TRAVERSE .................. YES
COOLANT ......................... YES
CHIP PAN ........................ YES
MOTOR ........................... 15 HORSEPOWER

Buy Machines

30" x 210" SUMMIT MODEL #30-4-200 GEARED HEAD ENGINE LATHE: STOCK #14146

Stock # 14146

Share Machine
Print Details

Machine Specifications

MODEL ........................... 30-4-200
SPINDLE HOLE .................... 4"

SWING OVER WAYS ................. 30"
SWING OVER CROSS SLIDE .......... 20"
SWING IN GAP .................... 40-1/2"
LENGTH OF GAP ................... 15"
DISTANCE BETWEEN CENTERS ........ 200"
SPINDLE SPEEDS .................. (16) 14 TO 1010 RPM
DIAMETER OF SPINDLE HOLE ........ 4-1/8"
THREADS STANDARD ................ .25 TO 56 TPI
THREADS METRIC .................. .875 TO 32 MM
FEEDS STANDARD .................. .002 TO .032 IPR
FEEDS METRIC .................... .25 TO 14 MMPR
TAILSTOCK TAPER ................. #5MT
CHUCK ........................... 4-JAW
STEADY REST ..................... YES
TAPER ATTACHMENT ................ YES
HARD WAYS ....................... YES
RAPID TRAVERSE .................. YES
COOLANT ......................... YES
CHIP PAN ........................ YES
MOTOR ........................... 15 HORSEPOWER

Videos
Specifications
Weight 13500 pounds
