Machine Information

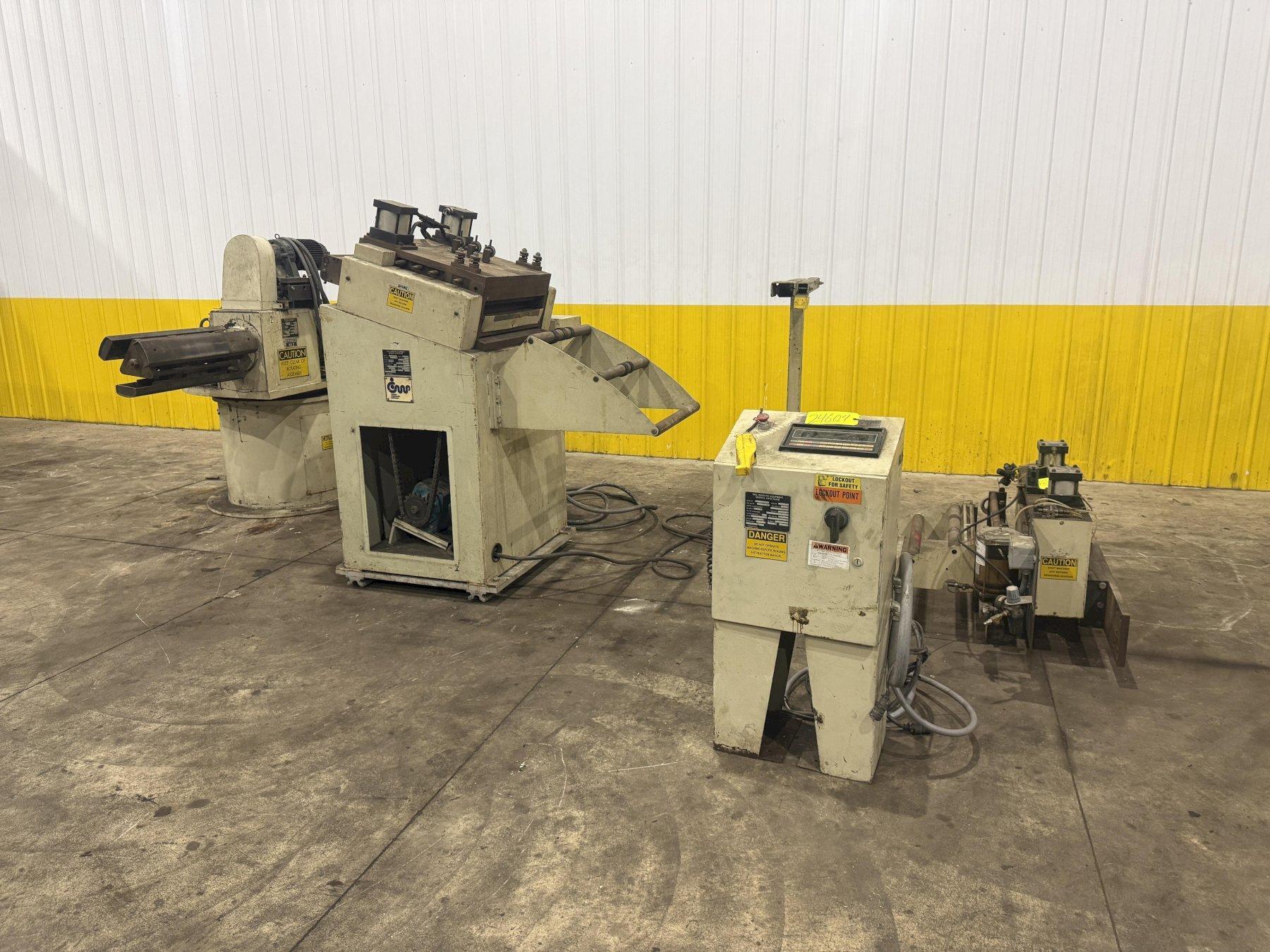

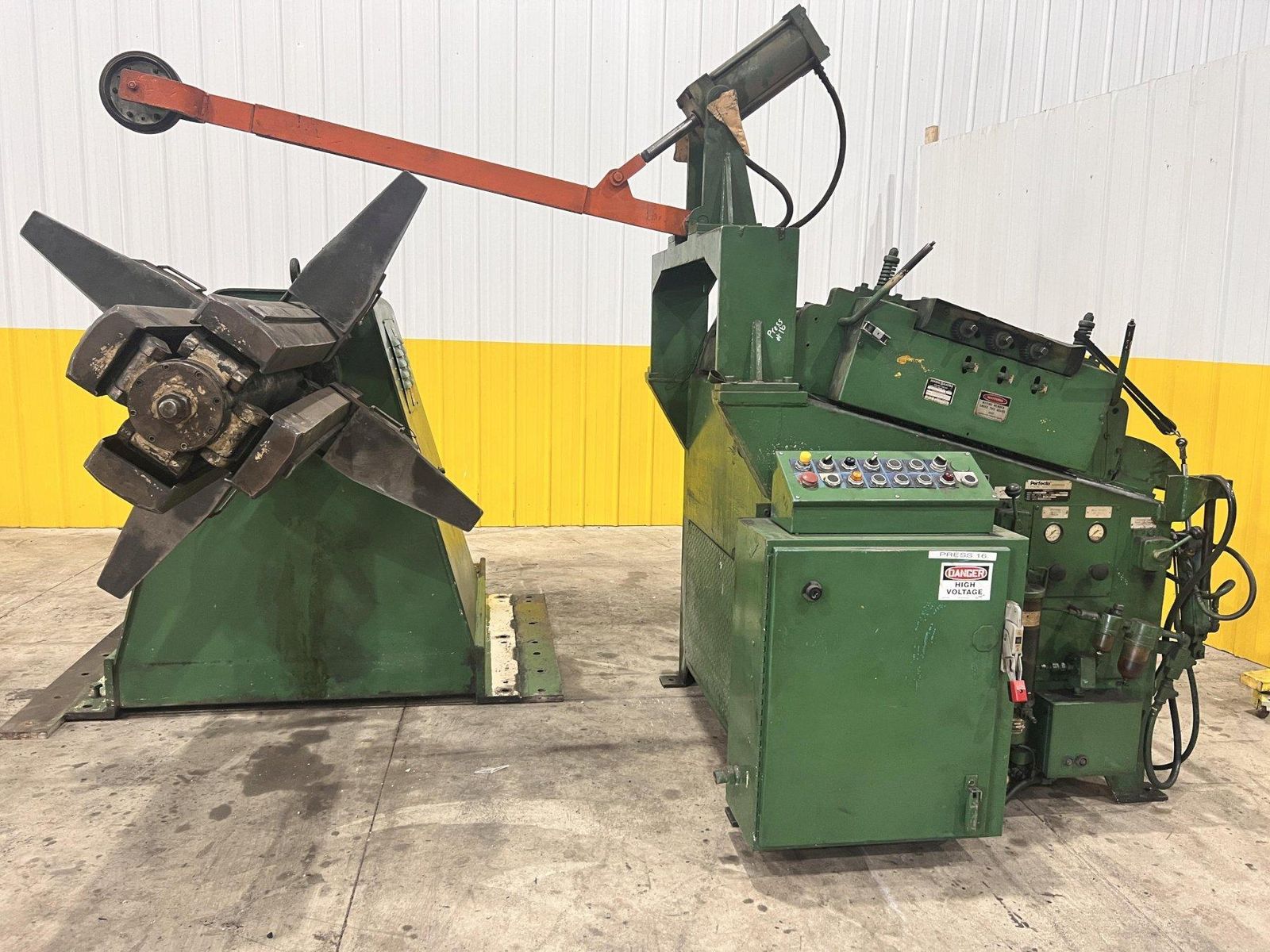

30" X 12,000 LBS X .125" PERFECTO COIL REEL & STRAIGHTENER FEED LINE: STOCK #21650

Stock #: 21650

Equipped With

30" X 12,000 LBS X .125" PERFECTO COIL REEL & STRAIGHTENER FEED LINE: STOCK #21650
Coil Weight .............. 12000 pounds
Coil Width ............... 30 inches
Coil Thickness ........... .125 inches
Coil Capacity ............ 12,000 lbs
Coil Width ............... 30"
Capacity at Full Width ... .125"
Max Coil O.D. ............ 60"
I.D. Range ............... 60"

4 Leaf Mandrel
Set of Keeper Arms
Hydraulic Tank
Hydraulic Expansion
Air Brake Mounted on Coil Reel Spindle
Adjustable Tensioning
Jog, Forward and Reverse

Perfecto Powered Straightener Model #28-7-30
Entry and exit Powered Coil Straightener pinch rolls
Air Operated Adjustment rolls
Seven coil straightening rolls x 2.8" Diameter

Manual individual or unison upper coil straightening roll adjustments
Coil hold down arm with neoprene end wheel (non motorized)
Stock peeler table with extension
Heavy duty hand crank edge guides
Exit cascade loop support rollers
Automatic lubrication system
Variable speed powered coil straightener drive system
Operator's control console
Jog forward and reverse
Auto / run cycle
Loop control
