Brand
ROWE
Type
Coil Feed Lines
Stock No.
11867
 |
419-269-2000 |
Stock #: 11867

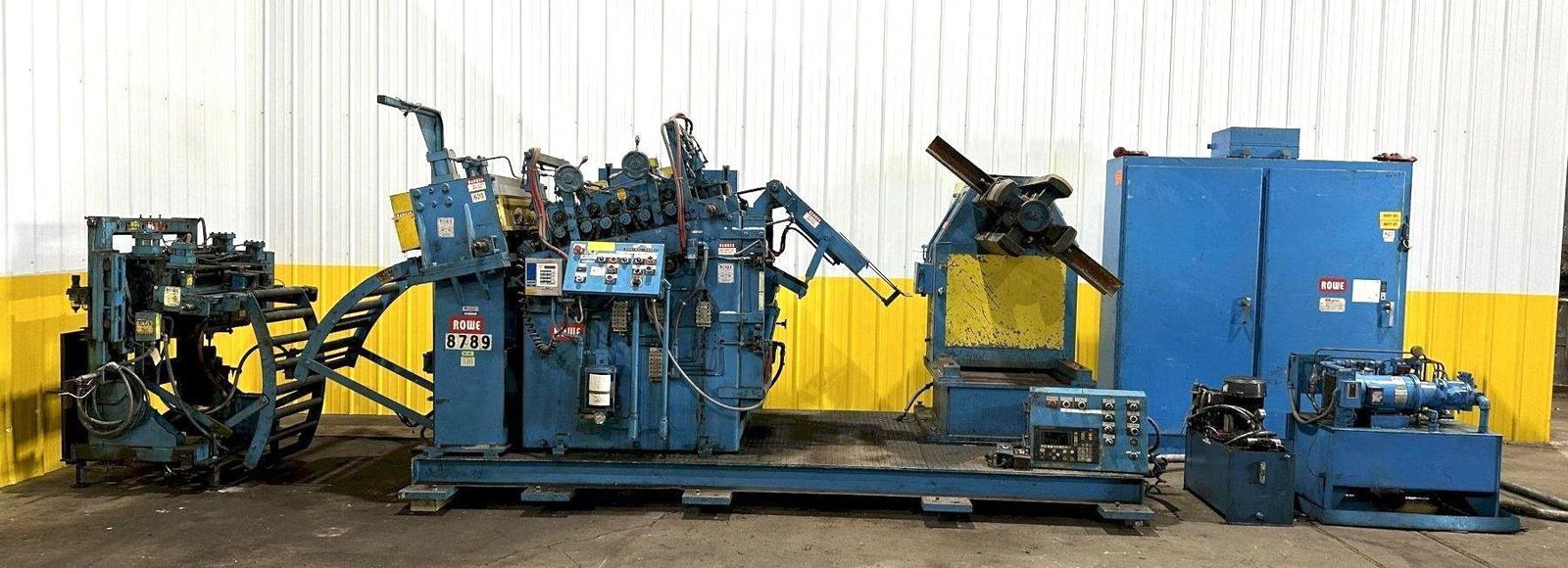

ROWE SERVER FEED & SHEAR LINE
CAPACITY .................... 30" WIDE X .125" MATERIAL
LINE SPEED .................. 7 TO 100 FPM
LINE DIRECTION .............. RIGHT TO LEFT
LINE COMPONENTS:
- UNCOILER
- FLIP UP PEELER TABLE
- STRAIGHTENER & SHEAR
- SERVO FEEDER
- CONTROL STATION & PANEL
ROWE / EGAN UNCOILER:
SERIAL ...................... 28256MODEL ....................... CPR-PO-15024CAPACTIY .................... 6,000 LBSWIDTH OF MANDRAL ............ 30"COIL I.D. ...................COIL O.D. ................... 60"BRAKE ADJUSTMENT ............ VARIABLE
HYDRAULIC EXPANSION ......... YESCOIL KEEPERS ................ YESROWE STRAIGHTENER:SERIAL ...................... 28259MODEL ....................... 1030-H-FSBCAPACITY .................... .020 TO .125" MILD STEELMAX WIDTH OF COIL ........... 30"NUMBER OF ROLLS ............. 7, 3 OVER 4DIAMETER OF ROLLS ........... 3"JOG / HAND / AUTO FEED ...... YESPINCH ROLL PRESSURE ADJ ..... YESDRAG BRAKE STRENGTH ADJ ..... YES
ADJUSTABLE ENTRY GUIDES ..... YESDANCER ARM LOOP CONTROL ..... YES
TRABON CENTRAL LUBE SYSTEM .. YES
REMOTE CONTROL .............. YES, JOG & SHEARMOTOR ....................... 10 HP
ROWE HYDRAULIC SHEAR
SERIAL ...................... 28257
MODEL ....................... 03-30
SHEAR COUNTER ............... YES, DIGITAL
EXIT ROLLER GUIDES & TABLE .. YES
HYDRAULIC UNIT .............. WOMACK
ROWE SERVO FEEDER
SERIAL ...................... 28261
MODEL ....................... PM-FAC-053-230-AB
CAPACITY .................... .020" TO .125"
