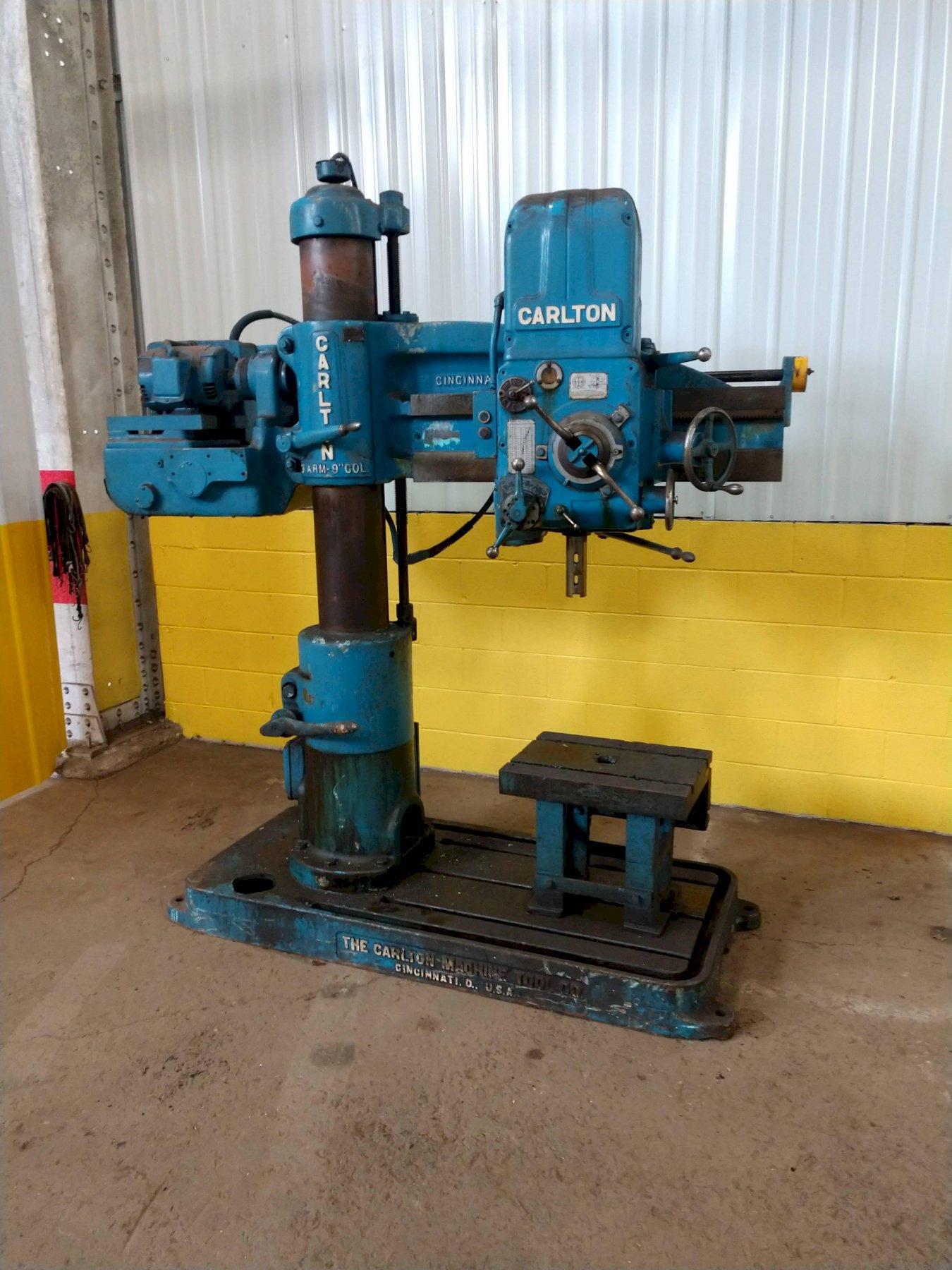

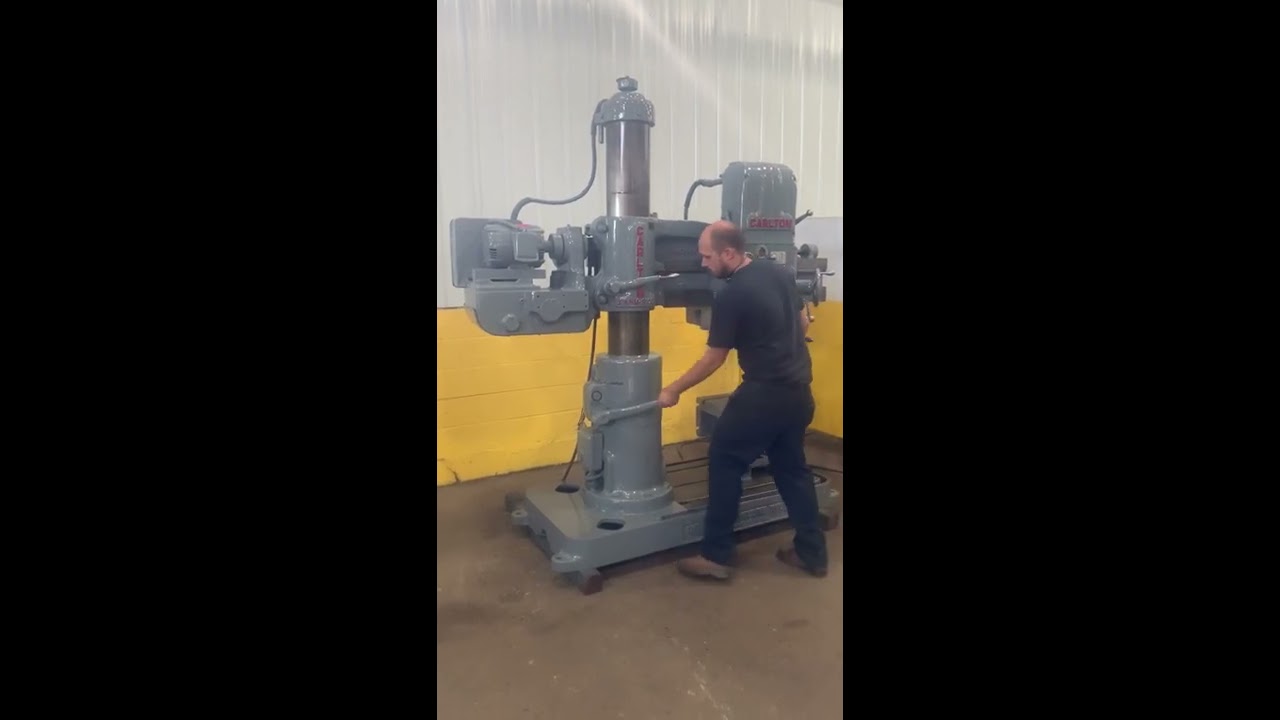

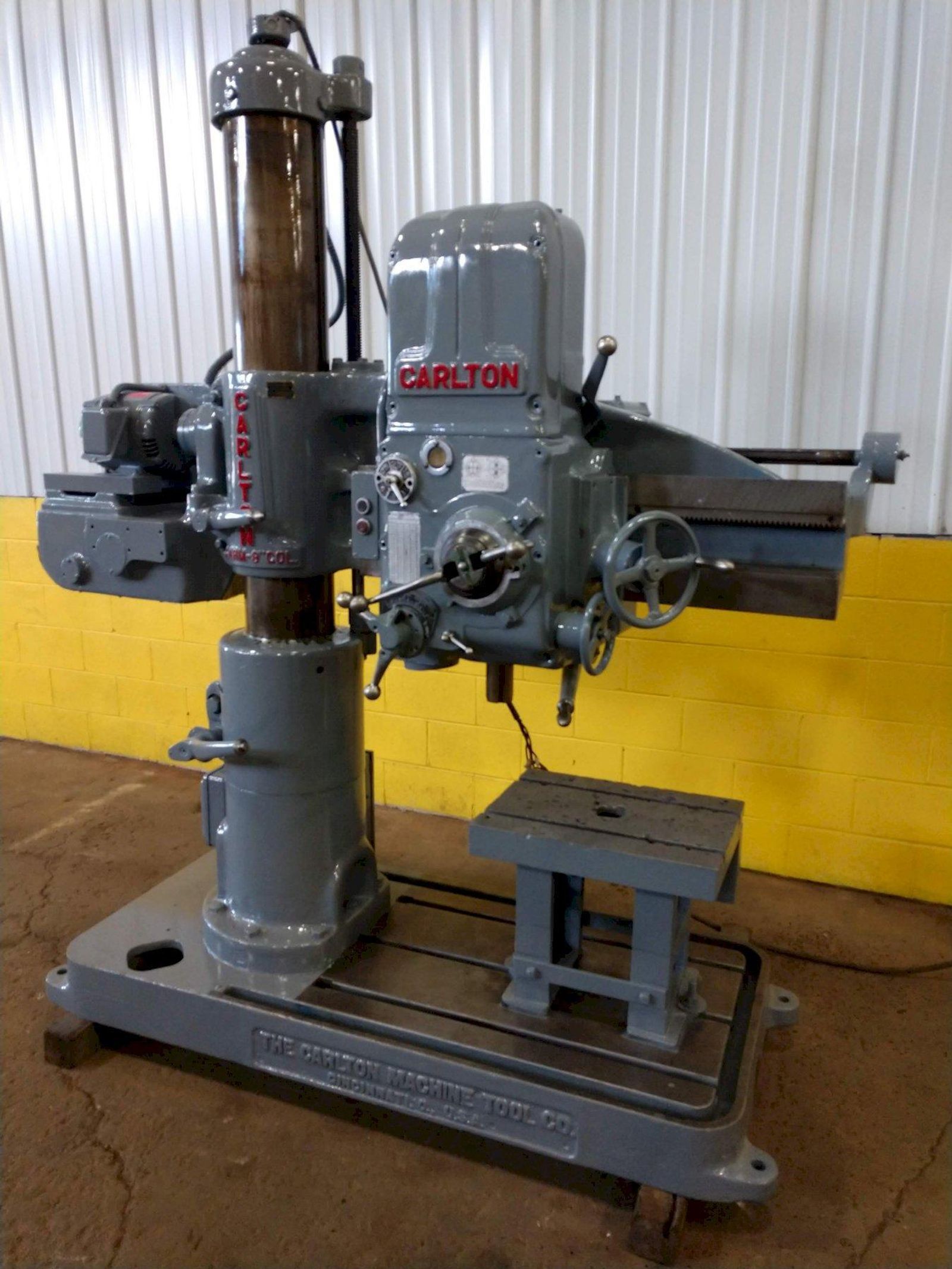

3' X 9" CARLTON MODEL #1A RADIAL DRILL: STOCK #10352

Stock #: 10352

Equipped With

SERIAL ............................... 1A2651
MODEL ................................ 1A
ARM LENGTH X COLUMN DIAMETER ......... 3' X 9"
SPINDLE SPEEDS ....................... (9) 60 TO 1500 RPM
SPINDLE FEEDS ........................ (4) .006 TO.025 IPR
SPINDLE RADIUS, MAXIMUM / MINIMUM .... 43"TO 16"
SPINDLE TO BASE, MAXIMUM / MINIMUM ... 42" TO 16"
SPINDLE STROKE ....................... 10"
SPINDLE TAPER ........................ #4 MT
VERTICAL ARM TRAVEL ON COLUMN ........ 27"
HEAD TRAVEL ON ARM ................... 27"
HEIGHT OF BASE ....................... 6"
HEAD & COLUMN CLAMPING ............... MANUAL
POWER ELEVATION ...................... YES
MOTOR ................................ 5 HORSEPOWER

Buy Machines

3' X 9" CARLTON MODEL #1A RADIAL DRILL: STOCK #10352

Stock # 10352

Share Machine
Print Details

Machine Specifications

SERIAL ............................... 1A2651
MODEL ................................ 1A
ARM LENGTH X COLUMN DIAMETER ......... 3' X 9"
SPINDLE SPEEDS ....................... (9) 60 TO 1500 RPM
SPINDLE FEEDS ........................ (4) .006 TO.025 IPR
SPINDLE RADIUS, MAXIMUM / MINIMUM .... 43"TO 16"
SPINDLE TO BASE, MAXIMUM / MINIMUM ... 42" TO 16"
SPINDLE STROKE ....................... 10"
SPINDLE TAPER ........................ #4 MT
VERTICAL ARM TRAVEL ON COLUMN ........ 27"
HEAD TRAVEL ON ARM ................... 27"
HEIGHT OF BASE ....................... 6"
HEAD & COLUMN CLAMPING ............... MANUAL
POWER ELEVATION ...................... YES
MOTOR ................................ 5 HORSEPOWER

Specifications
Arm Length 36 inches
Column Dia. 9 inches
