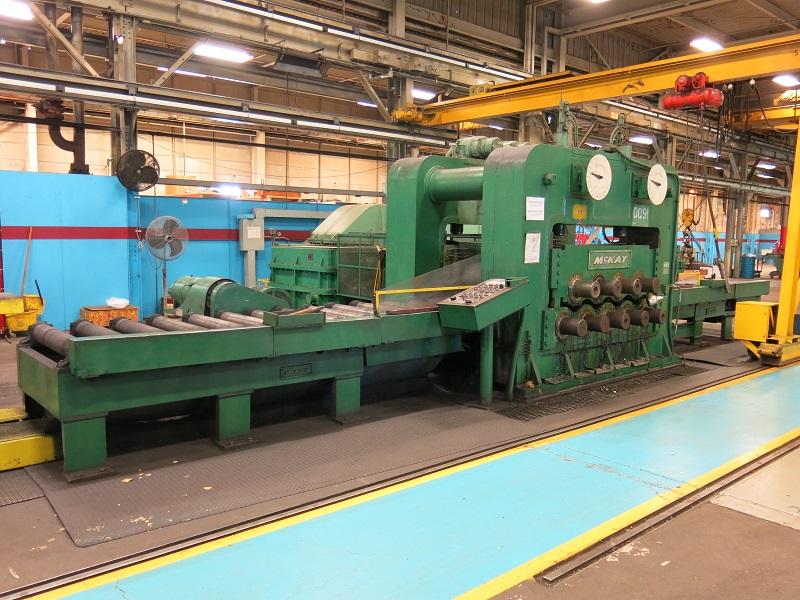

3" X 36" MCKAY 9 ROLL "HEAVY DUTY" PLATE LEVELER: STOCK 10735

Stock #: 10735

Equipped With

McKay 9 Roll Flattener
Serial....................................... 65/1443-11 Year of MFG.................................. 1965
Capacity: Maximum Thickness............................ 3" Minimum Thickness............................ 1/2" Maximum Width................................ 24-1/2" Minimum Width................................ 14" Width of Rolls............................... 36" Diameter of Rolls............................ 16" Journal Size................................. 7" Line Speed................................... 0 - 65 14' Entrance Powered Conveyor 12' Exit Powered Conveyor 4 Over 5 Roll Assembly Power Top Roll Adjustment Power Side Guide In & Out Power Leveler Lube System Controls: Forward & Reverse Jog: - Entrance Conveyor, Leveler, & Exit Conveyor. 200 HP DC Motor RPM: 500-1600
