Machine Information

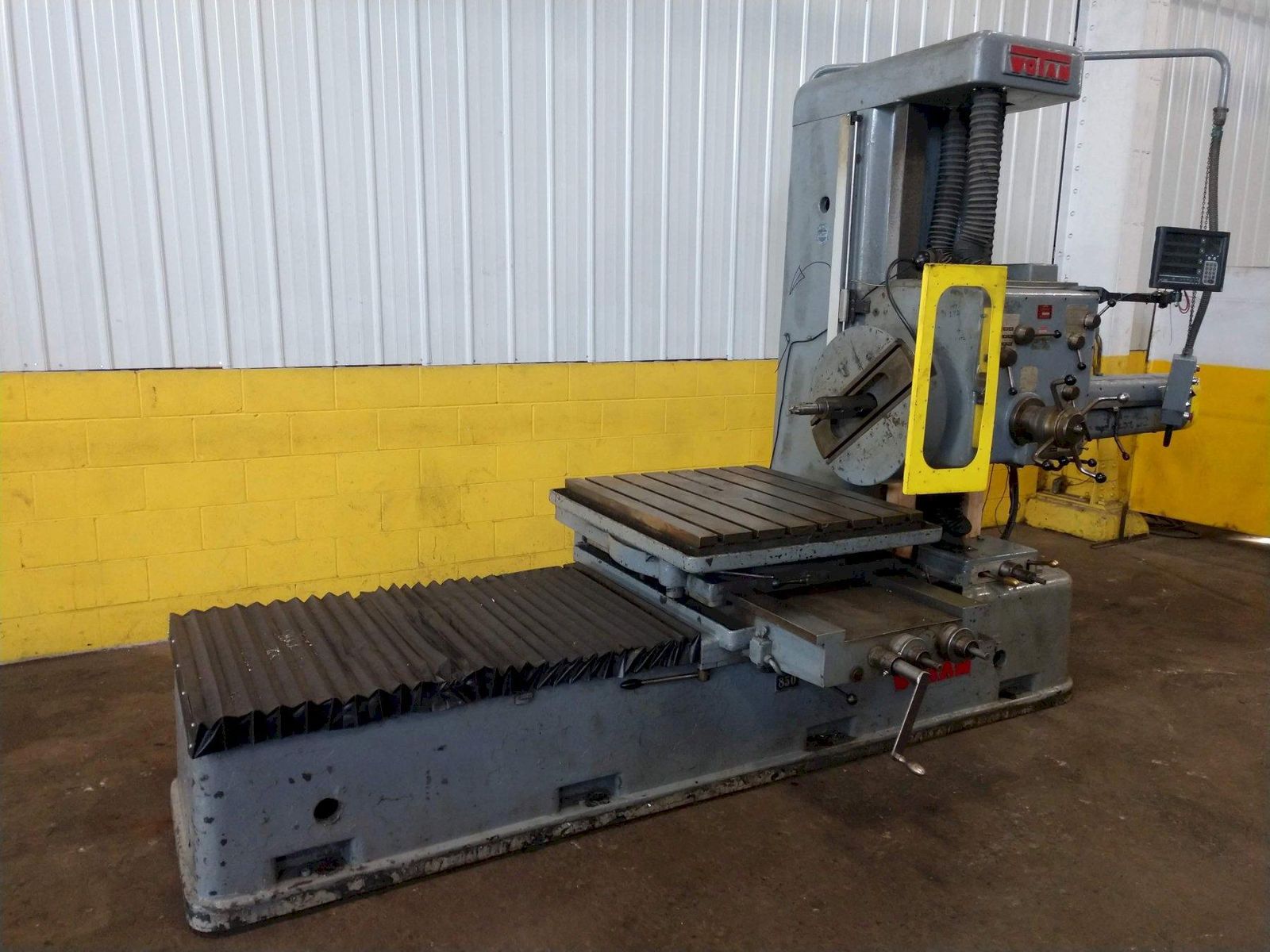

3" WOTAN MODEL #B85 ROTARY TABLE HORIZONTAL BORING MILL: STOCK #14853

Stock #: 14853

Equipped With

SERIAL ......................... 50307
MODEL .......................... B85
YEAR ........................... 1975
SPINDLE DIAMETER ............... 3"
ROTARY TABLE SIZE .............. 38-3/8" X 41-3/4"
TABLE SWIVEL RANGE ............. 360 DEGREES
SPINDLE TAPER .................. 5 MT
SPINDLE SPEEDS ................. 9 TO 1000 RPM
SPINDLE,HEADSTOCK,TABLE FEEDS .. .0008 TO .333 IPR
SPINDLE TRAVEL ................. 25"
VERTICAL HEADSTOCK TRAVEL ...... 36"
LONGITUDINAL TABLE TRAVEL ...... 48"
CROSS TABLE TRAVEL ............. 38"
PENDANT CONTROL ................ YES
FACING HEAD ATTACHMENT  ........ YES
MOTOR .......................... 12.5 HP

Buy Machines

3" WOTAN MODEL #B85 ROTARY TABLE HORIZONTAL BORING MILL: STOCK #14853

Stock # 14853

Share Machine
Print Details

Machine Specifications

SERIAL ......................... 50307
MODEL .......................... B85
YEAR ........................... 1975
SPINDLE DIAMETER ............... 3"
ROTARY TABLE SIZE .............. 38-3/8" X 41-3/4"
TABLE SWIVEL RANGE ............. 360 DEGREES
SPINDLE TAPER .................. 5 MT
SPINDLE SPEEDS ................. 9 TO 1000 RPM
SPINDLE,HEADSTOCK,TABLE FEEDS .. .0008 TO .333 IPR
SPINDLE TRAVEL ................. 25"
VERTICAL HEADSTOCK TRAVEL ...... 36"
LONGITUDINAL TABLE TRAVEL ...... 48"
CROSS TABLE TRAVEL ............. 38"
PENDANT CONTROL ................ YES
FACING HEAD ATTACHMENT  ........ YES
MOTOR .......................... 12.5 HP

Videos
Specifications
Weight 17600 pounds
