Machine Information

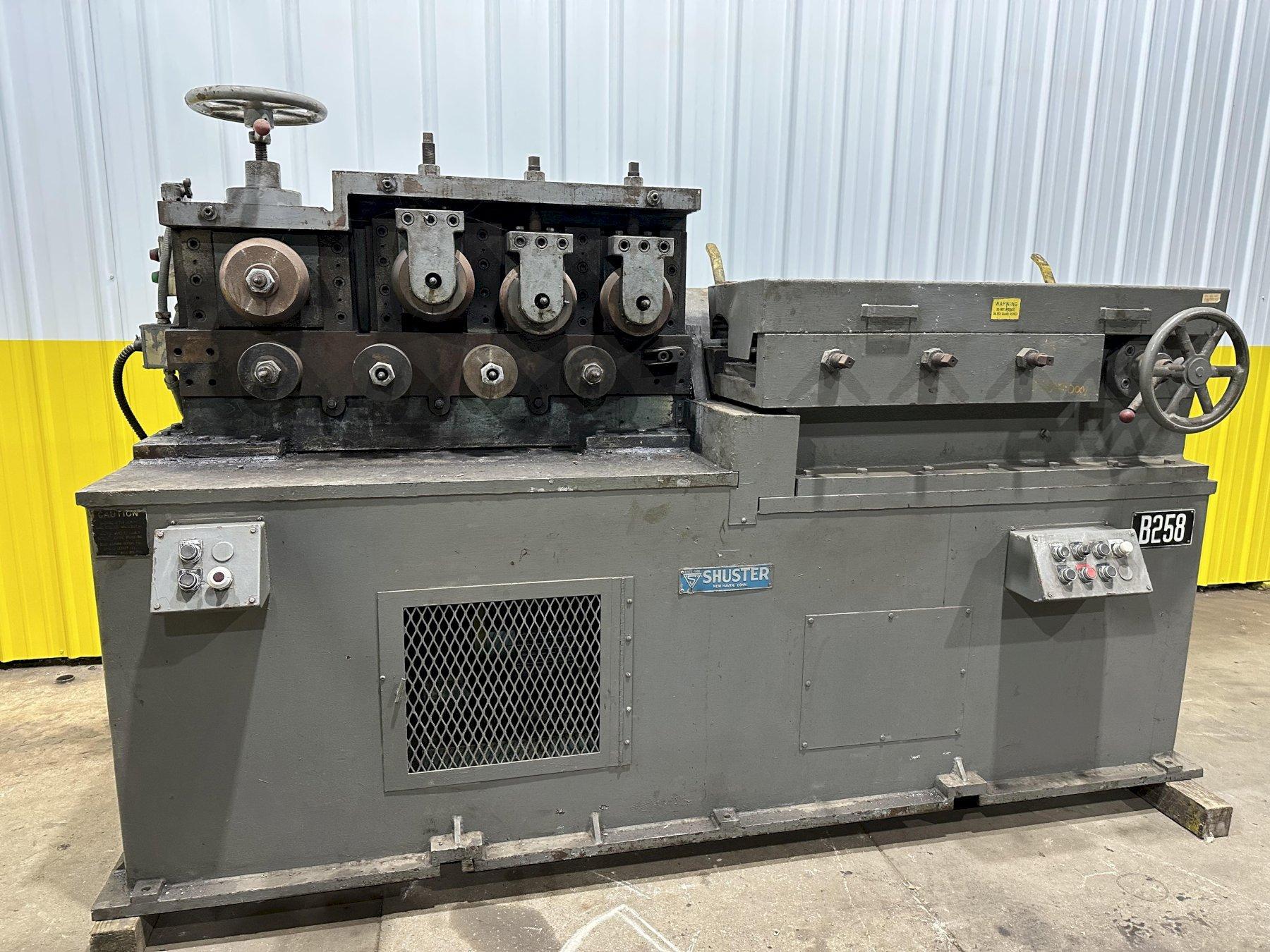

3" SHUSTER MODEL #5GRS 12-ROLL 2 PLANE STRAIGHTENER: STOCK #10001

Stock #: 10001

Equipped With

SERIAL .......................... 103-95
MODEL ........................... 5GRS (GEARED ROLL STRAIGHTENER)
DIMENSIONS ...................... 111" X 45" X 68" HIGH
WEIGHT .......................... 9925 LBS
NEW ............................. 1995
MAX DIA. OF WORKPIECE ........... 3"
TUBE CAPACITY ................... 3/8" TO 2-3/4"
NOMINAL CAPACITY ................ 2.75" X .125" WALL THICKNESS
SPEED ........................... 35 TO 280 FPM
NUMBER OF PLANES ................ 2
NUMBER OF ROLLS PER PLANE ....... 8
MOTOR (VARIABLE DRIVE) .......... 7.5 HP
