Overview

MODEL ......................... 1020

CAPACITY ...................... 3 TON

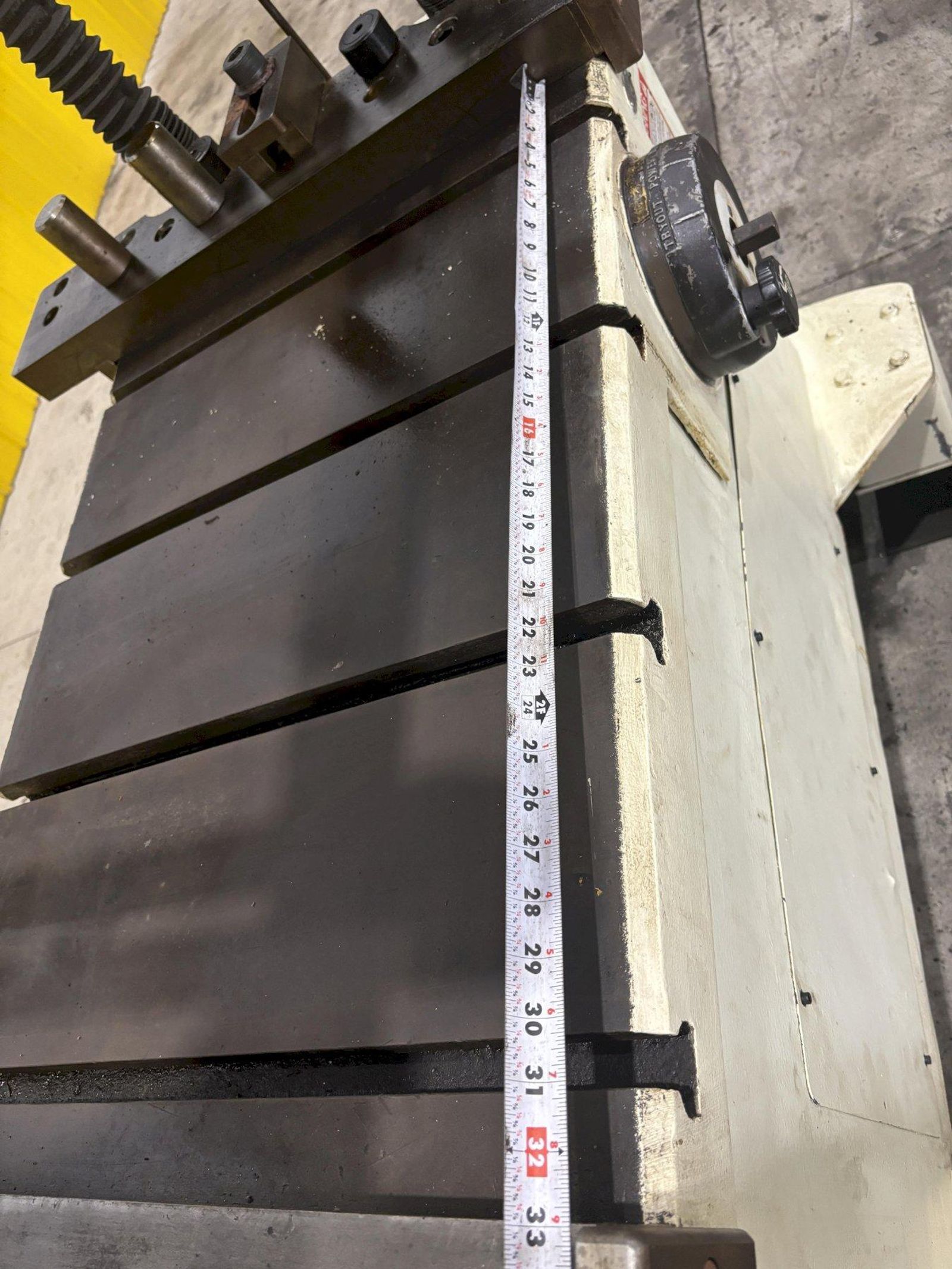

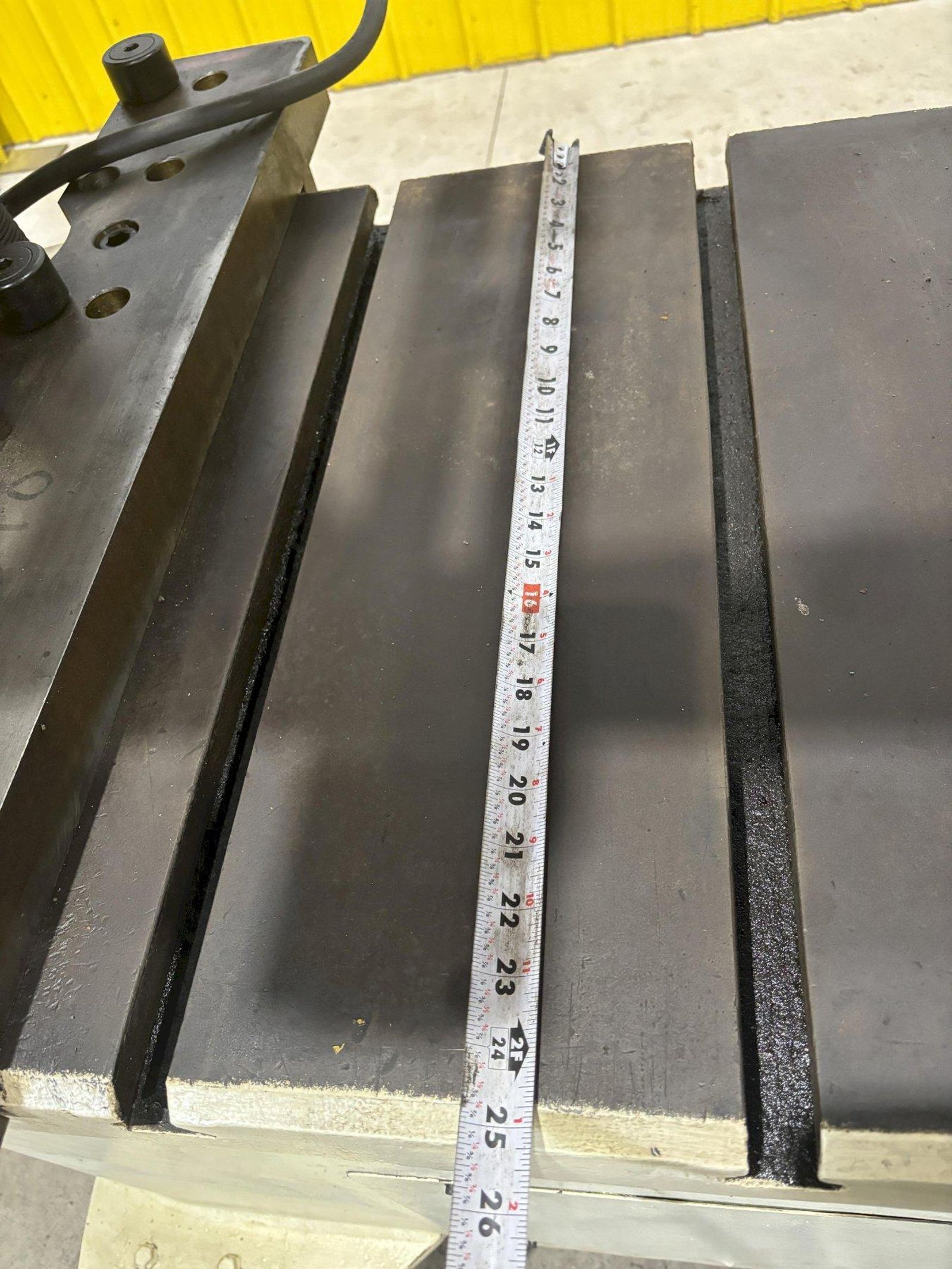

LOWER PLATEN AREA ............. 42-3/4" X 24"

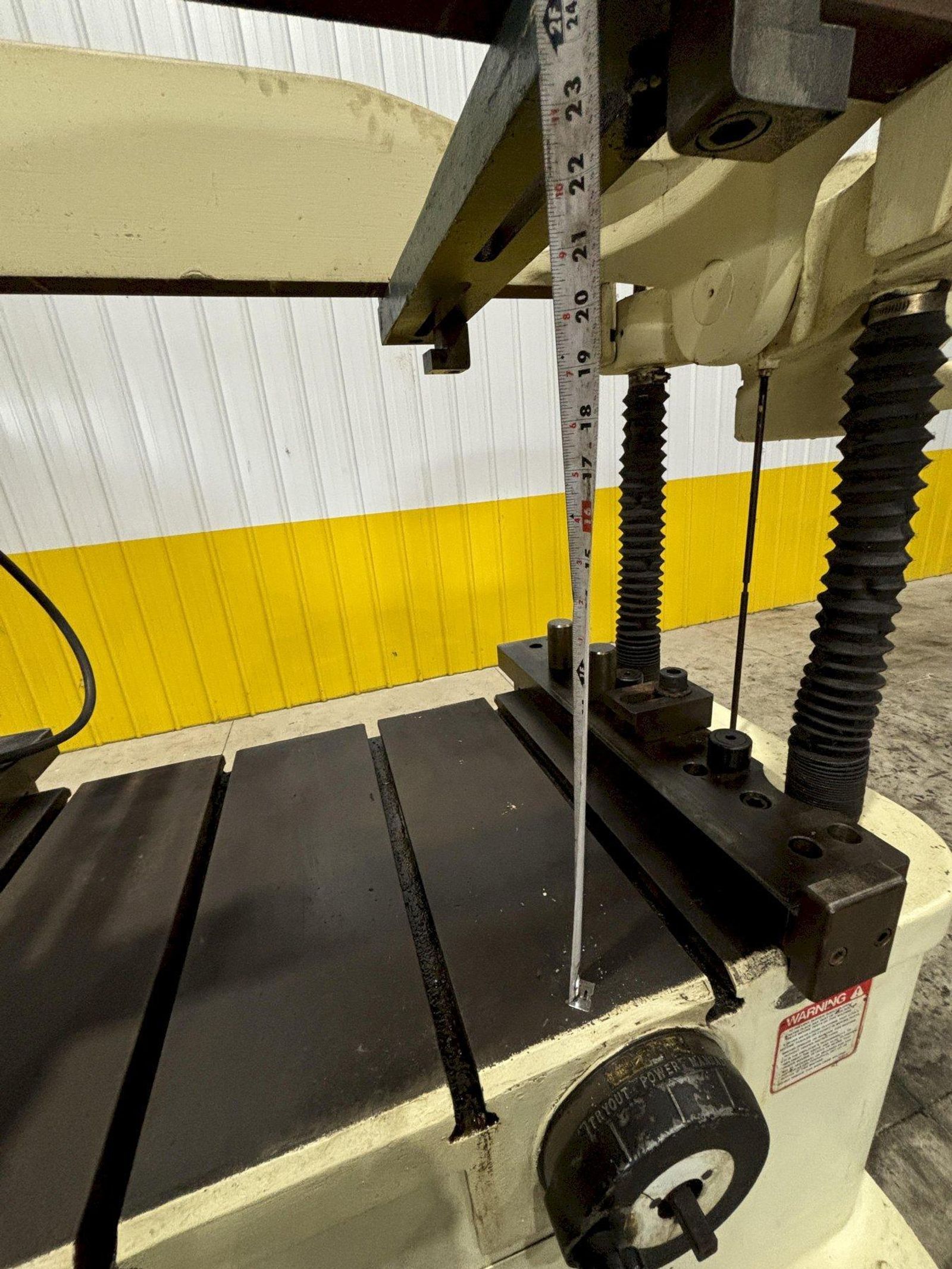

OPEN HEIGHT ................... 28"

TRAVEL UPPER PLATEN ........... 20"

SHUT HEIGHT ................... 8"

MANUAL POSITION TURNS ......... 48 PER INCH

TRY OUT POSITION TURNS ........ 344 PER INCH

ROTATION PLATEN TURN .......... 18 PER 360 DEGREES

DIE WEIGHT .................... 3000 LBS

DIE LOCK AT ................... 180 DEGREES

MOTOR ......................... 1-1/2 HORSEPOWER

3 TON X 43" X 24" HANSFORD MODEL #1020 DIE HANDLER: STOCK #21710

Brand
HANSFORD

Type
Die Handlers/Flippers

Stock No.
21710

Make an Offer

Request a Quote

Print Details

Contact Us

844-4YoBros | 419-269-2000

Yoder@YoderBrothersMachinery.com

419-269-2000
10559 Geiser Road
Holland, OH 43528

Machine Information

3 TON X 43" X 24" HANSFORD MODEL #1020 DIE HANDLER: STOCK #21710

Stock #: 21710

Equipped With

MODEL ......................... 1020
CAPACITY ...................... 3 TON
LOWER PLATEN AREA ............. 42-3/4" X 24"
OPEN HEIGHT ................... 28"
TRAVEL UPPER PLATEN ........... 20"
SHUT HEIGHT ................... 8"
MANUAL POSITION TURNS ......... 48 PER INCH
TRY OUT POSITION TURNS ........ 344 PER INCH
ROTATION PLATEN TURN .......... 18 PER 360 DEGREES
DIE WEIGHT .................... 3000 LBS
DIE LOCK AT ................... 180 DEGREES
MOTOR ......................... 1-1/2 HORSEPOWER

Overview

3 TON X 43" X 24" HANSFORD MODEL #1020 DIE HANDLER: STOCK #21710
