Machine Information

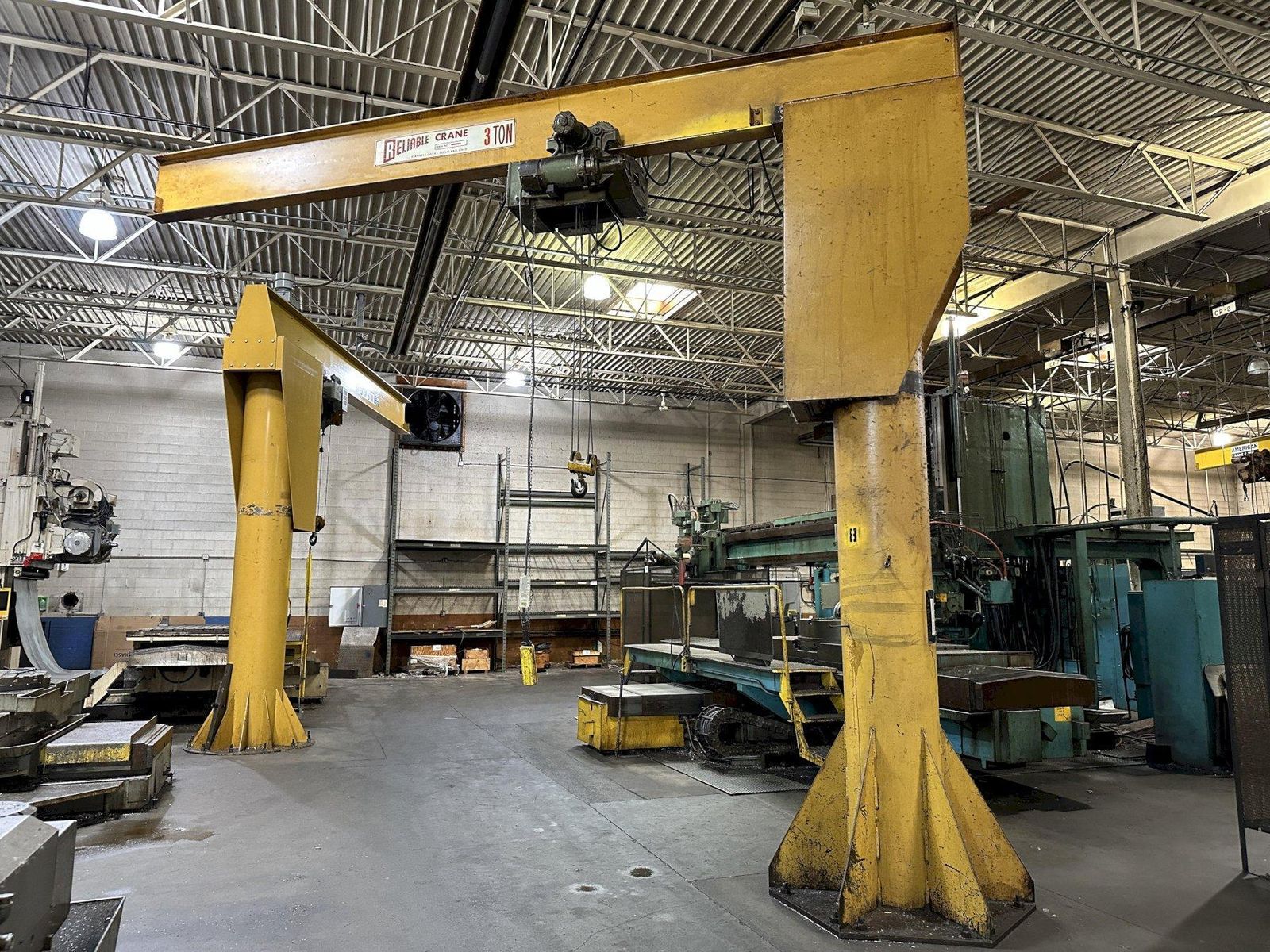

3 TON X 16’ ARM X 15' HIGH RELIABLE FREE STANDING JIB CRANE & 3 TON P&H CABLE HOIST: STOCK #21766

Stock #: 21766

Equipped With

SERIAL ............................ 11423-JB
ARM ROTATES ....................... 360 DEGREE
LENGTH OF ARM ..................... 19'
HOIST TRAVEL ON ARM ............... 16'
DISTANCE BOTTOM OF ARM TO FLOOR ... 15'
COLUMN DIAMETER ................... 25"
FLOOR MOUNT ....................... BASE PLATE
BASE DIAMETER ..................... 54"
NUMBER OF MOUNTING HOLES .......... 12

HOIST:
TYPE .............................. CABLE
HOIST CAPACITY .................... 6000 LBS (3 TON)
PENDANT CONTROL ................... 4 BUTTON
TROLLEY MOTOR ..................... 1/8 HORSEPOWER
HOIST MOTOR ....................... 1 HORSEPOWER
