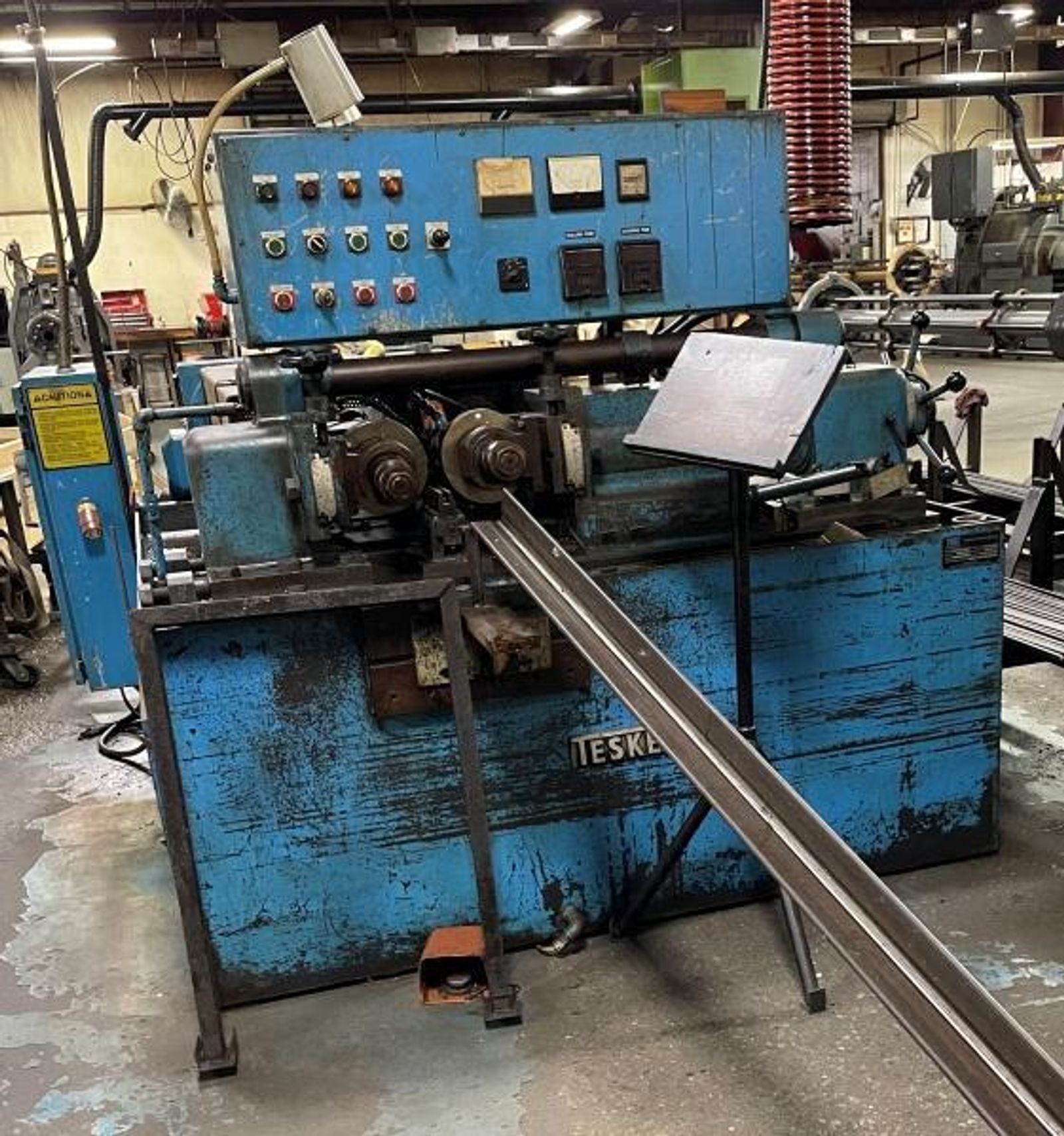

3" TESKER MODEL 320 THREAD ROLLING MACHINE: STOCK 18563

Stock #: 18563

Equipped With

MODEL ...................... 320
CAPACITY ................... 3" DIAMETER
SPINDLE SIZE ............... 2-1/8"
SPINDLE SPEED .............. 28 TO 170 RPM
SPINDLE TILT ............... 12 DEGREES EITHER DIRECTION
DIAMETER OF DIES ........... 8" MAX
ROLL FACE WIDTH ............ 6" MAX
INFEED & THRUFEED .......... YES
ROLLING PRESSURE ........... ADJUSTABLE TO 70,000 LBS
SPRING LOADED REAR STOP .... YES
FRONT "L" SUPPORT .......... YES
HYDRAULIC CAPACITY ......... 45 GALLONS
COOLANT CAPACITY ........... 80 GALLONS

SPINDLE MOTOR .............. 25 HP
HYDRAULIC MOTOR ............ 5 HP
COOLANT MOTOR .............. 1/4 HP
