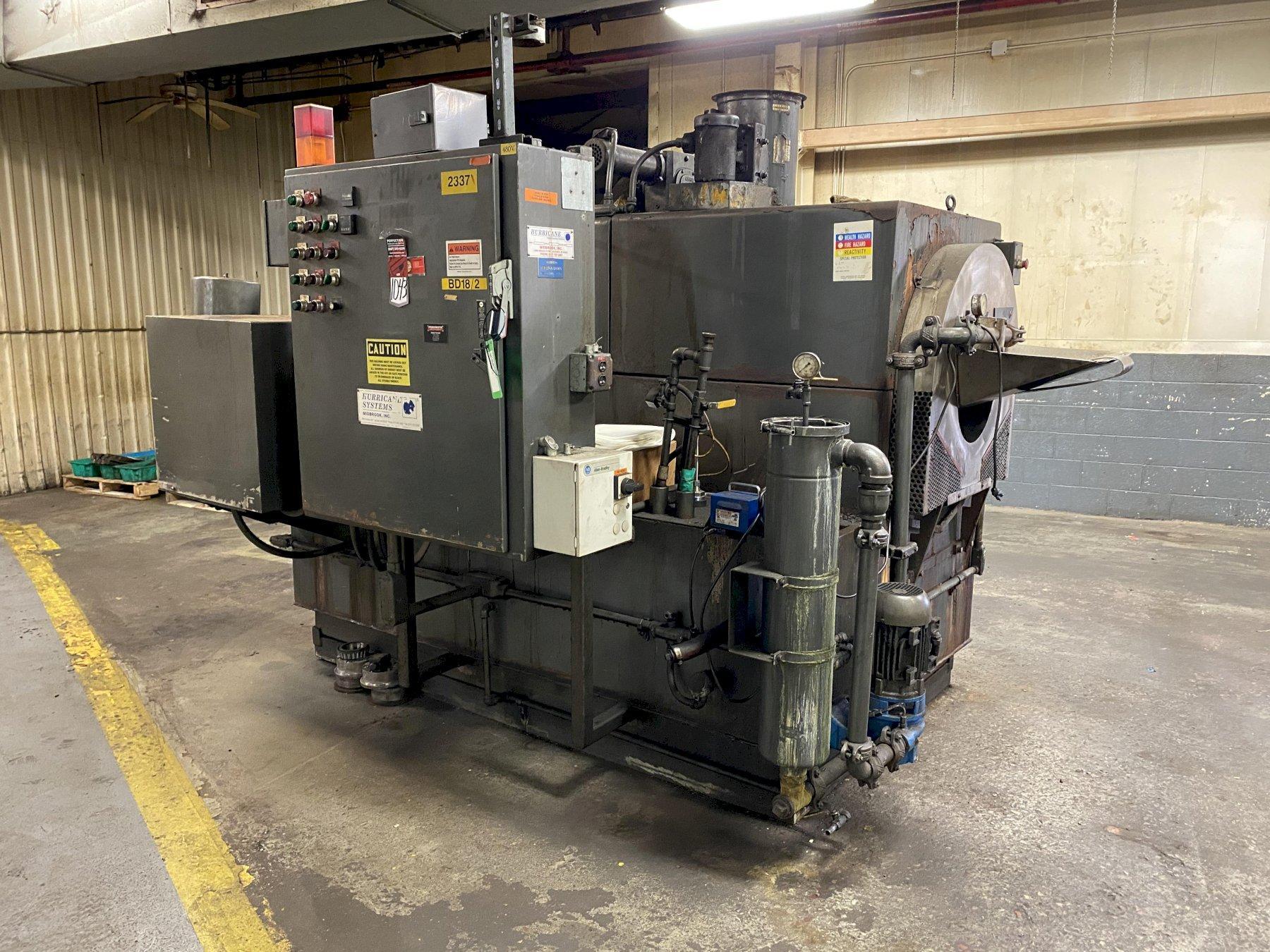

SERIAL ................. 43968
MODEL .................. 250
YEAR NEW ............... 1998
2 STAGE DESIGN ......... WASH/RINSE, DRY
ROTARY DRUM DIAMETER ... 24"
LOAD OPENING ........... 16.75" ID
DISCHARGE OPENING ...... 24"
AUGER .................. 3" FLIGHT ON 18" PITCH
BATCH WASH ENTRY DRUM .. 36.125" OD X 12 GA STAINLESS WITH END CONES
BLOW OFF EXIT DRUM ..... 24" OD X 11 GA WITH .125" PERFORATIONS
LINE SPEED ............. 1-4 RPM; 700 PARTS PER HOUR
WASH TANK .............. 366 GALLONS
GAS HEATED ............. YES
OPERATION TEMPERATURE .. 145 DEGREES F
PUSH BUTTON CONTROLS ... YES
SPRAY HEADER ........... 1.5" WITH VEE JET NOZZELS
WASH PUMP .............. 3 HP
BLOW OFF BLOWER ........ 10 HP
12" EXHAUST FAN ........ 3/4 HP
DRUM ROTATION ......... 1 HP DC
Brand
HURRICANE
Type
Washers
Stock No.
13539
Files
 |
419-269-2000 |
Stock #: 13539
SERIAL ................. 43968
MODEL .................. 250
YEAR NEW ............... 1998
2 STAGE DESIGN ......... WASH/RINSE, DRY
ROTARY DRUM DIAMETER ... 24"
LOAD OPENING ........... 16.75" ID
DISCHARGE OPENING ...... 24"
AUGER .................. 3" FLIGHT ON 18" PITCH
BATCH WASH ENTRY DRUM .. 36.125" OD X 12 GA STAINLESS WITH END CONES
BLOW OFF EXIT DRUM ..... 24" OD X 11 GA WITH .125" PERFORATIONS
LINE SPEED ............. 1-4 RPM; 700 PARTS PER HOUR
WASH TANK .............. 366 GALLONS
GAS HEATED ............. YES
OPERATION TEMPERATURE .. 145 DEGREES F
PUSH BUTTON CONTROLS ... YES
SPRAY HEADER ........... 1.5" WITH VEE JET NOZZELS
WASH PUMP .............. 3 HP
BLOW OFF BLOWER ........ 10 HP
12" EXHAUST FAN ........ 3/4 HP
DRUM ROTATION ......... 1 HP DC
