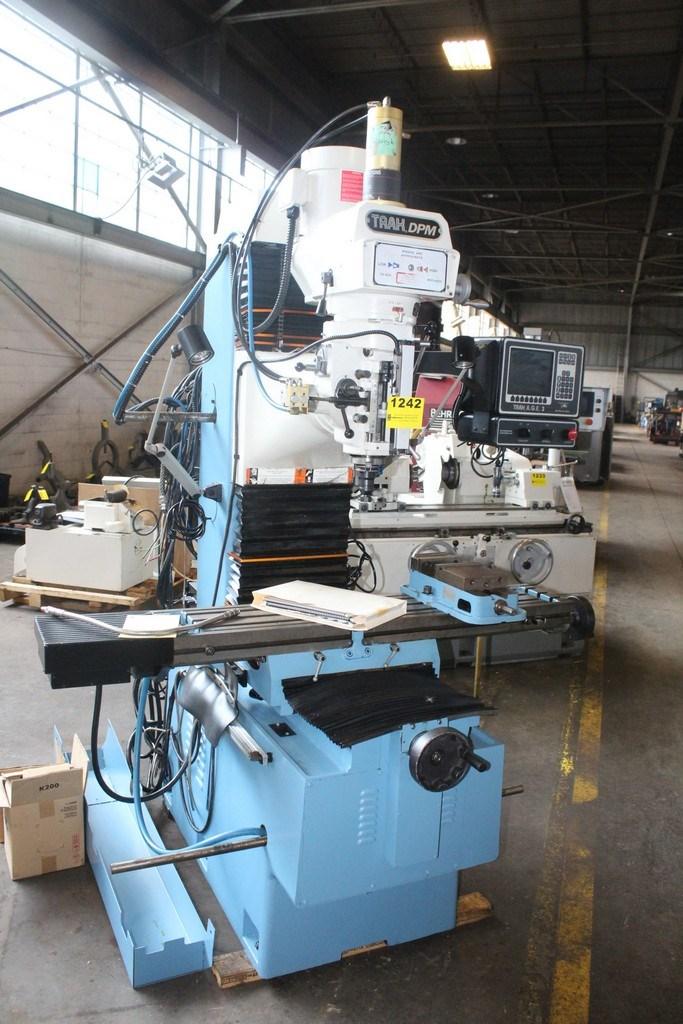

3 HP SWI SOUTHWESTERN INDUSTRIES TRAK DPM 3 AXIS CNC MILL: STOCK 11156

Stock #: 11156

Equipped With

SERIAL .................................... 99-4674
NEW ....................................... 1999

MODEL ..................................... DPM
TABLE SIZE ................................ 10" X 50"
TABLE TRAVEL .............................. X 30"
TABLE TRAVEL .............................. Y 17"
HEAD TRAVEL ............................... Z 23.5"
QUILL DIAMETER ............................ 3-15/16"
SPINDLE TAPER ............................. #40 NST
SPEED RANGE ............................... 70 TO 4200 RPM
SPINDLE NOSE TO TABLE ..................... 0 TO 23-1/2"
SPINDLE CENTER TO COLUMN FACE ............. 19"
QUILL TRAVEL .............................. 5"
HEAD SWIVEL LEFT/RIGHT .................... 90 DEG.
MAXIMUM WORKPIECE WEIGHT .................. 1320 LBS.
SPINDLE DRIVE ............................. 3 HP 220/3/60
CONTROL ................................... TRAK A.G.E. 3 AXIS CNC
PORT ......................................
RS232
POWER DRAW BAR ............................ YES
VISE ...................................... YES
AUTOMATIC LUBRICATION SYSTEM .............. YES
GLASS SCALES .............................. YES
WORK LIGHT ................................ YES

Buy Machines

3 HP SWI SOUTHWESTERN INDUSTRIES TRAK DPM 3 AXIS CNC MILL: STOCK 11156

Stock # 11156

Share Machine
Print Details

Machine Specifications

SERIAL .................................... 99-4674
NEW ....................................... 1999

MODEL ..................................... DPM
TABLE SIZE ................................ 10" X 50"
TABLE TRAVEL .............................. X 30"
TABLE TRAVEL .............................. Y 17"
HEAD TRAVEL ............................... Z 23.5"
QUILL DIAMETER ............................ 3-15/16"
SPINDLE TAPER ............................. #40 NST
SPEED RANGE ............................... 70 TO 4200 RPM
SPINDLE NOSE TO TABLE ..................... 0 TO 23-1/2"
SPINDLE CENTER TO COLUMN FACE ............. 19"
QUILL TRAVEL .............................. 5"
HEAD SWIVEL LEFT/RIGHT .................... 90 DEG.
MAXIMUM WORKPIECE WEIGHT .................. 1320 LBS.
SPINDLE DRIVE ............................. 3 HP 220/3/60
CONTROL ................................... TRAK A.G.E. 3 AXIS CNC
PORT ......................................
RS232
POWER DRAW BAR ............................ YES
VISE ...................................... YES
AUTOMATIC LUBRICATION SYSTEM .............. YES
GLASS SCALES .............................. YES
WORK LIGHT ................................ YES

Specifications
Weight 4100 pounds
