Overview

SERIAL ........................... 99-4693
NEW .............................. 1999
MODEL ............................ TRAK DPM

TABLE SIZE ....................... 10" X 50"

TABLE TRAVEL ..................... X 30"

TABLE TRAVEL ..................... Y 17"

HEAD TRAVEL ...................... Z 23.5"

QUILL DIAMETER ................... 3-15/16"

SPINDLE TAPER .................... #40 NST

SPEED RANGE ...................... 70 TO 4200 RPM

SPINDLE NOSE TO TABLE ............ 0 TO 23-1/2"

SPINDLE CENTER TO COLUMN FACE .... 19"

QUILL TRAVEL ..................... 5"

HEAD SWIVEL LEFT/RIGHT ........... 90 DEG.

CONTROL .......................... TRAK A.G.E. 3 AXIS CNC

PORT ............................. RS232

POWER DRAW BAR ................... YES

AUTOMATIC LUBRICATION SYSTEM ..... YES

GLASS SCALES ..................... YES

WORK LIGHT ....................... YES
SPINDLE DRIVE .................... 3 HP

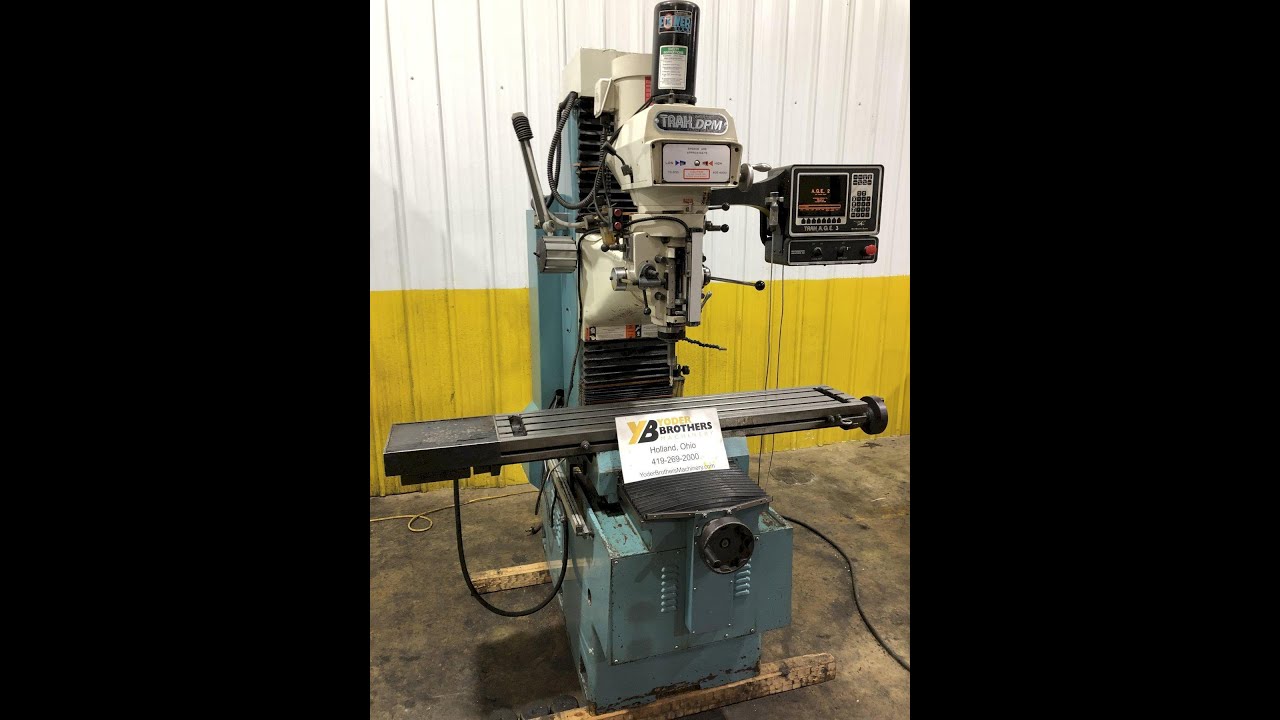

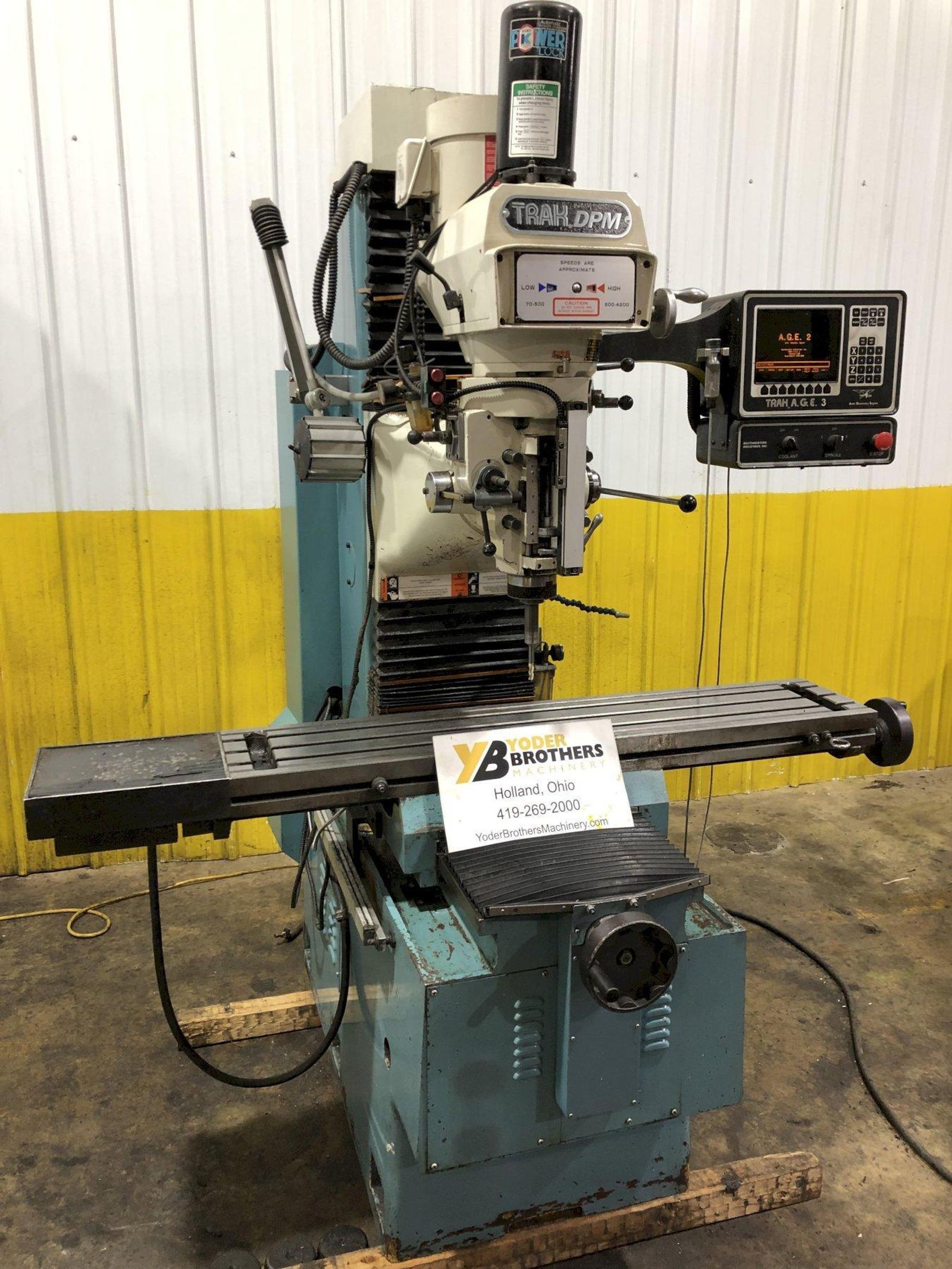

3 HP SOUTHWESTERN INDUSTRIES (SWI) 3 AXIS AGE3 CNC TRAK DPM VERTICAL MILL: STOCK #18801

Brand
SOUTHWESTERN INDUSTRIES

Type
Millers, Vertical

Stock No.
18801

Make an Offer

Request a Quote

Print Details

Contact Us

844-4YoBros | 419-269-2000

Yoder@YoderBrothersMachinery.com

419-269-2000
10559 Geiser Road
Holland, OH 43528

Machine Information

3 HP SOUTHWESTERN INDUSTRIES (SWI) 3 AXIS AGE3 CNC TRAK DPM VERTICAL MILL: STOCK #18801

Stock #: 18801

Equipped With

SERIAL ........................... 99-4693
NEW .............................. 1999
MODEL ............................ TRAK DPM

TABLE SIZE ....................... 10" X 50"
TABLE TRAVEL ..................... X 30"
TABLE TRAVEL ..................... Y 17"
HEAD TRAVEL ...................... Z 23.5"
QUILL DIAMETER ................... 3-15/16"
SPINDLE TAPER .................... #40 NST
SPEED RANGE ...................... 70 TO 4200 RPM
SPINDLE NOSE TO TABLE ............ 0 TO 23-1/2"
SPINDLE CENTER TO COLUMN FACE .... 19"
QUILL TRAVEL ..................... 5"
HEAD SWIVEL LEFT/RIGHT ........... 90 DEG.
CONTROL .......................... TRAK A.G.E. 3 AXIS CNC
PORT ............................. RS232
POWER DRAW BAR ................... YES
AUTOMATIC LUBRICATION SYSTEM ..... YES
GLASS SCALES ..................... YES
WORK LIGHT ....................... YES
SPINDLE DRIVE .................... 3 HP
