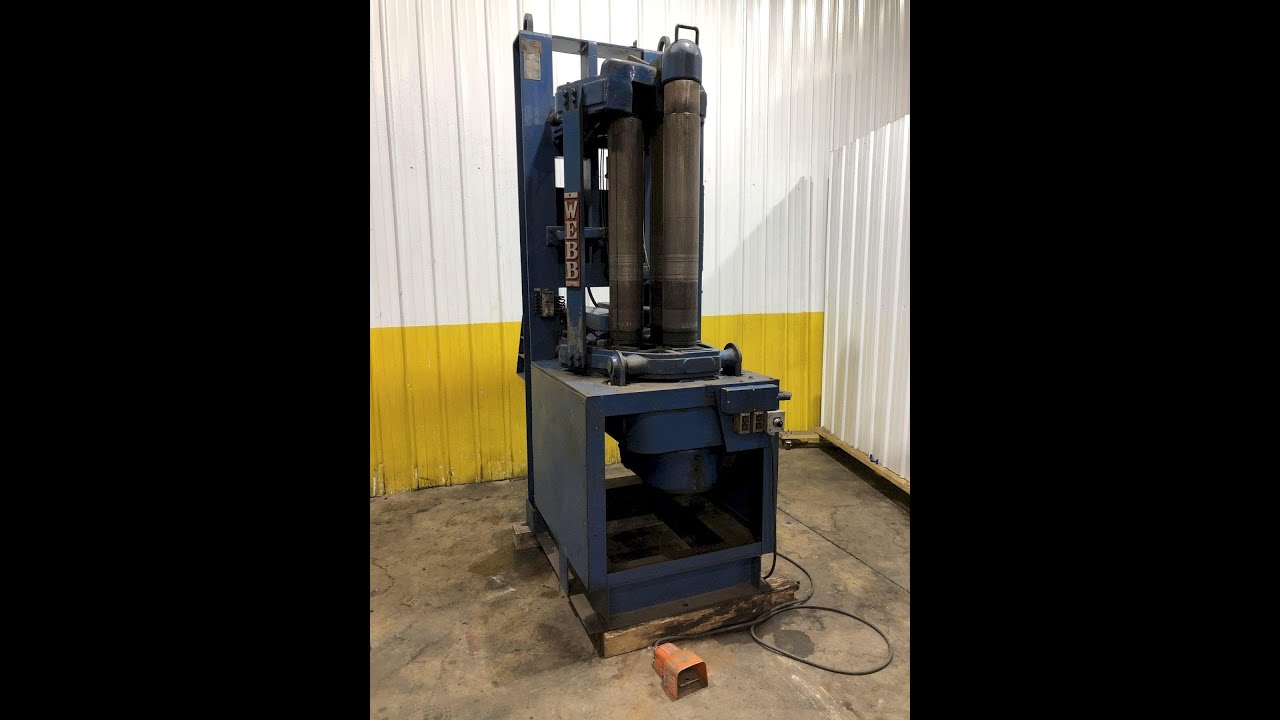

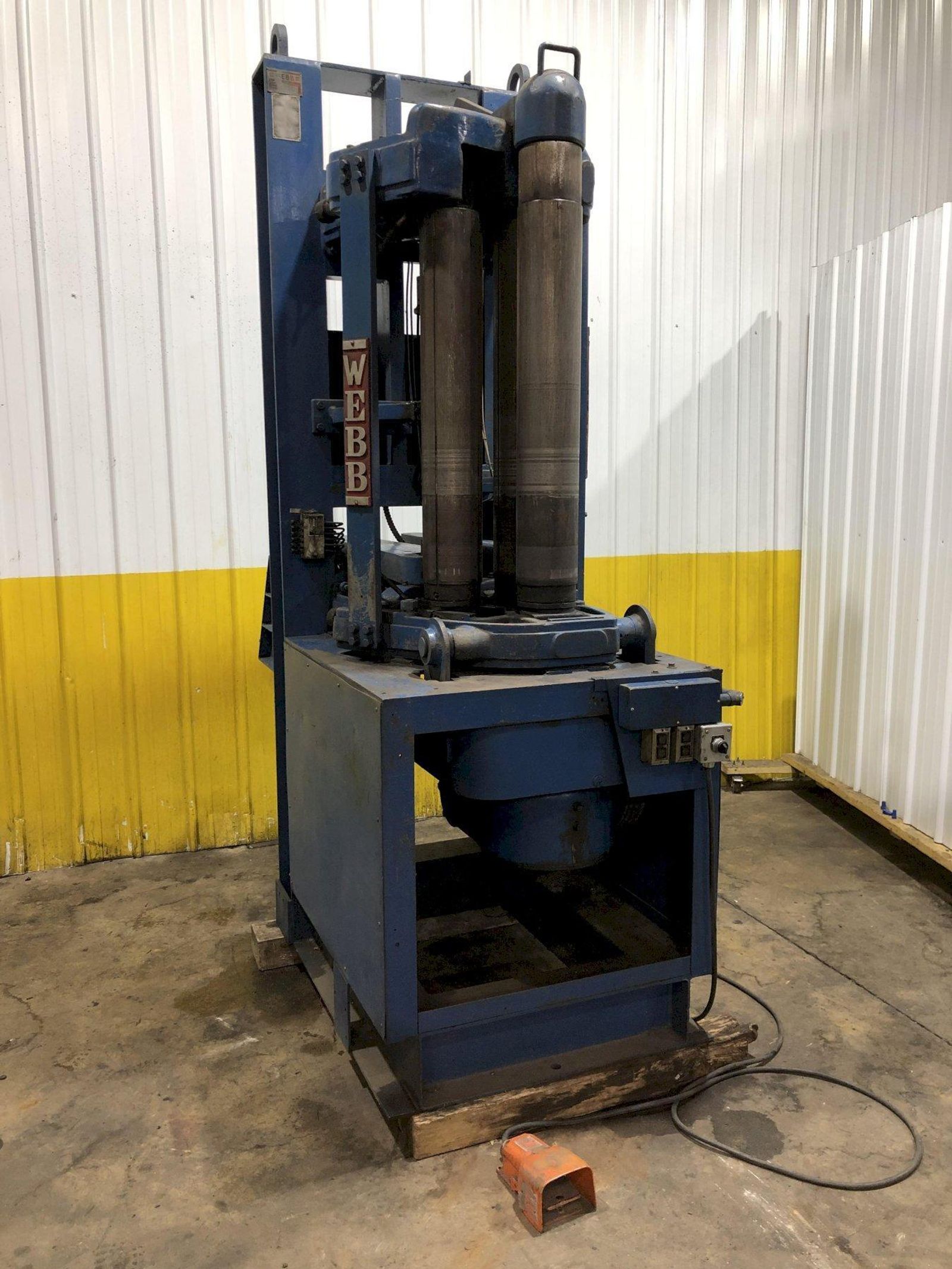

Serial ....................... 5980 (WLRX)
Model ........................ R3LRV6503
Capacity ..................... 3' x 1/4" Mild Steel
Roll Diameters ............... 6-1/2"
Roll Length .................. 37-1/2"
Rolling Speed ................ 17 F.P.M
Air Drop End & Automatic Balancing Beam
Power Bottom & Rear Roll Adjustment
Roll Position Indicators & Pushbuttons For Up;Down
Pushbuttons For Main Motor Forward; Reverse; Stop
Foot Pedal
1 HP Bottom Roll Adjustment Motor
3 HP Rear Rol1:Adjustment Motor
5 HP Main Drive Motor
Additional Capacity
30" x 5/16" to 18" diameter
20" x 3/8" to 30" diameter
14" x 7/16" to 14" diameter
10" x 1/2" to 10" diameter
| Specifications | ||
|---|---|---|
| Dimensions | 112" Tall x 48" Deep x 38" L-R | |
| Weight | 6500 pounds | |
Brand
WEBB
Type
Rolls, Angle Bending
Stock No.
18201
 |
419-269-2000 |
