Machine Information

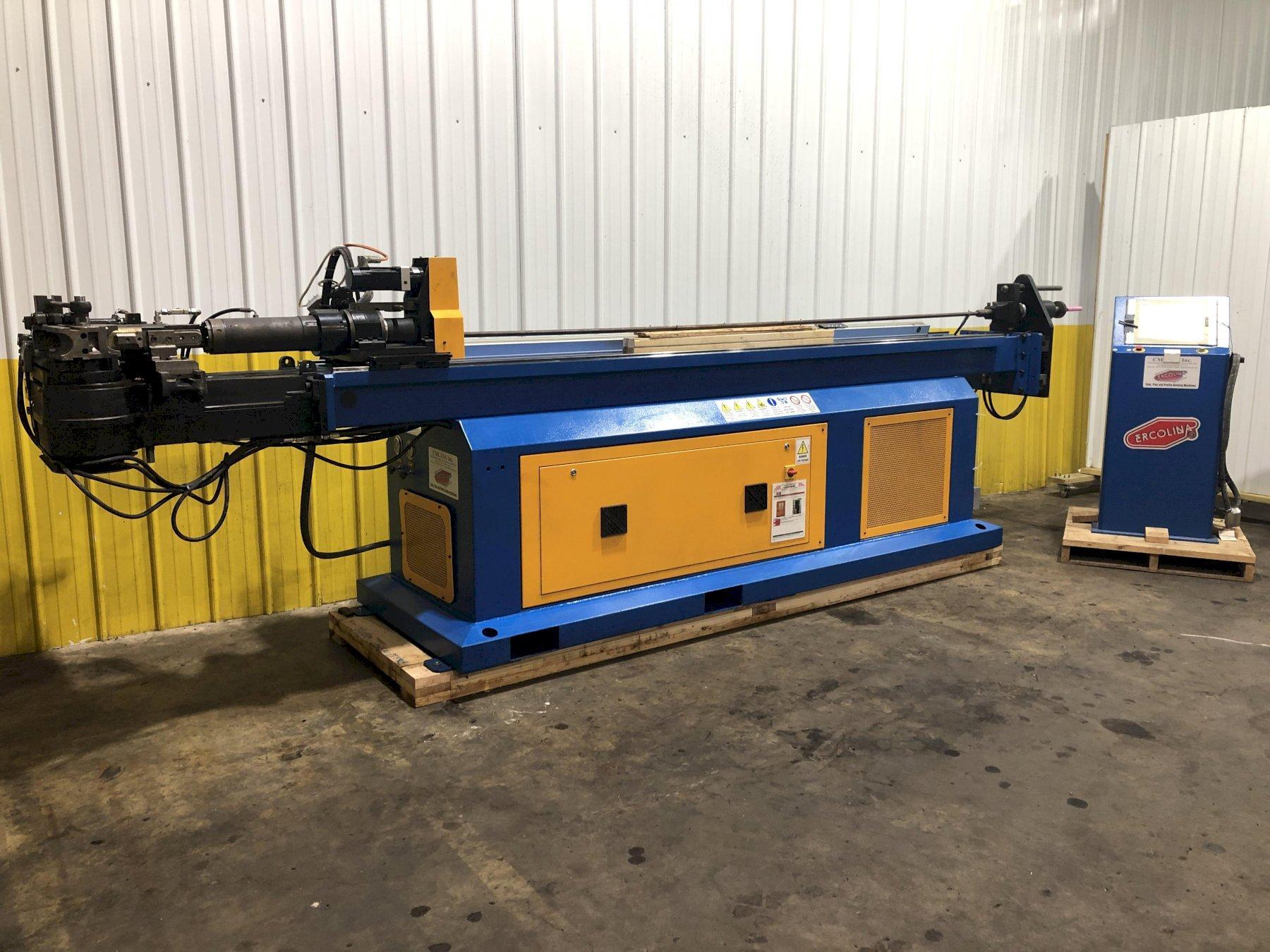

3" ERCOLINA MODEL #76CNC6V5 CNC MANDREL TYPE TUBE BENDER, NEW IN 2013: STOCK #16804

Stock #: 16804

Equipped With

SERIAL ......................... 5413014
MODEL .......................... EB76CNC6V5
YEAR NEW ....................... 2013
MILD STEEL TUBE CAPACITY ....... 3" (.083 WALL)
STAINLESS TUBE CAPACITY ........ 3" (.065 WALL)
SQUARE TUBE CAPACITY ........... 2" (.065 WALL)
MAX PIPE CAPACITY .............. 2" SCH 40

TOOLING INCLUDED FOR:  1.75", 2", 2.5" & 3"

FEATURES INCLUDE:

AUTOMATIC/MANUAL BENDING SEQUENCING
INDEPENDENT PRESSURE & CLAMP DIE ADJ
PROGRAMMABLE CARRIAGE MOVEMENT FOR TIGHT RADII
STANDARD RIGHT HAND BENDING DIRECTION
INTERACTIVE TOUCH SCREEN W/AUTO & MANUAL OPERATING MODES
SYSTEM DIAGNOSTICS & MULTIPLE LANGUAGE CAPABILITY
PROGRAMMABLE MATERIAL SPRINGBACK SETTINGS FOR EACH BEND ANGLE
USB FOR UNLIMITED PROGRAM MEMORY STORAGE
OPTIONAL FILE IMPORTATION OF IGES & DXG FILES-CONSULT

ACCEPTS YBC & XYZ INPUT VALUES:
Y - FEEDING ELECTRIC SERVO
B - ROATION ELECTRIC SERVO
C - BENDING HYDRAULIC CNC



Buy Machines

3" ERCOLINA MODEL #76CNC6V5 CNC MANDREL TYPE TUBE BENDER, NEW IN 2013: STOCK #16804

Stock # 16804

Share Machine
Print Details

Machine Specifications

SERIAL ......................... 5413014
MODEL .......................... EB76CNC6V5
YEAR NEW ....................... 2013
MILD STEEL TUBE CAPACITY ....... 3" (.083 WALL)
STAINLESS TUBE CAPACITY ........ 3" (.065 WALL)
SQUARE TUBE CAPACITY ........... 2" (.065 WALL)
MAX PIPE CAPACITY .............. 2" SCH 40

TOOLING INCLUDED FOR:  1.75", 2", 2.5" & 3"

FEATURES INCLUDE:

AUTOMATIC/MANUAL BENDING SEQUENCING
INDEPENDENT PRESSURE & CLAMP DIE ADJ
PROGRAMMABLE CARRIAGE MOVEMENT FOR TIGHT RADII
STANDARD RIGHT HAND BENDING DIRECTION
INTERACTIVE TOUCH SCREEN W/AUTO & MANUAL OPERATING MODES
SYSTEM DIAGNOSTICS & MULTIPLE LANGUAGE CAPABILITY
PROGRAMMABLE MATERIAL SPRINGBACK SETTINGS FOR EACH BEND ANGLE
USB FOR UNLIMITED PROGRAM MEMORY STORAGE
OPTIONAL FILE IMPORTATION OF IGES & DXG FILES-CONSULT

ACCEPTS YBC & XYZ INPUT VALUES:
Y - FEEDING ELECTRIC SERVO
B - ROATION ELECTRIC SERVO
C - BENDING HYDRAULIC CNC




Specifications
