Stock #: 18158
SERIAL 0731
NEW 08.1987
MODEL 3 SD END FINISHER
Square & Debur, Non-Ferrous & Annealed Ferrous 1/8″-3″ OFDFlare, Non Ferrous 1/8″-3″OD x .125″ max W.T.Flare, Annealed Ferrous 1/8″ – 3″OD x .125″ max W.T.Bead, Non Ferrous 1/4″-3/8″OD x .035″ max W.T.Bead, Non Ferrous 7/16″-1 3″OD x .065″ max W.T.Bead, Annealed Ferrous 1/4″ – 3/8″ OD x .035″ max W.T.Bead, Annealed Ferrous 7/16″ – 3″ OD x .065″ max W.T.Pneumatic 80 to 120 PSIGSpindle Speed, Variable 0 to 500RPMJaws Heat treated alloy steel pneumatic close
Stock # 18158
SERIAL 0731
NEW 08.1987

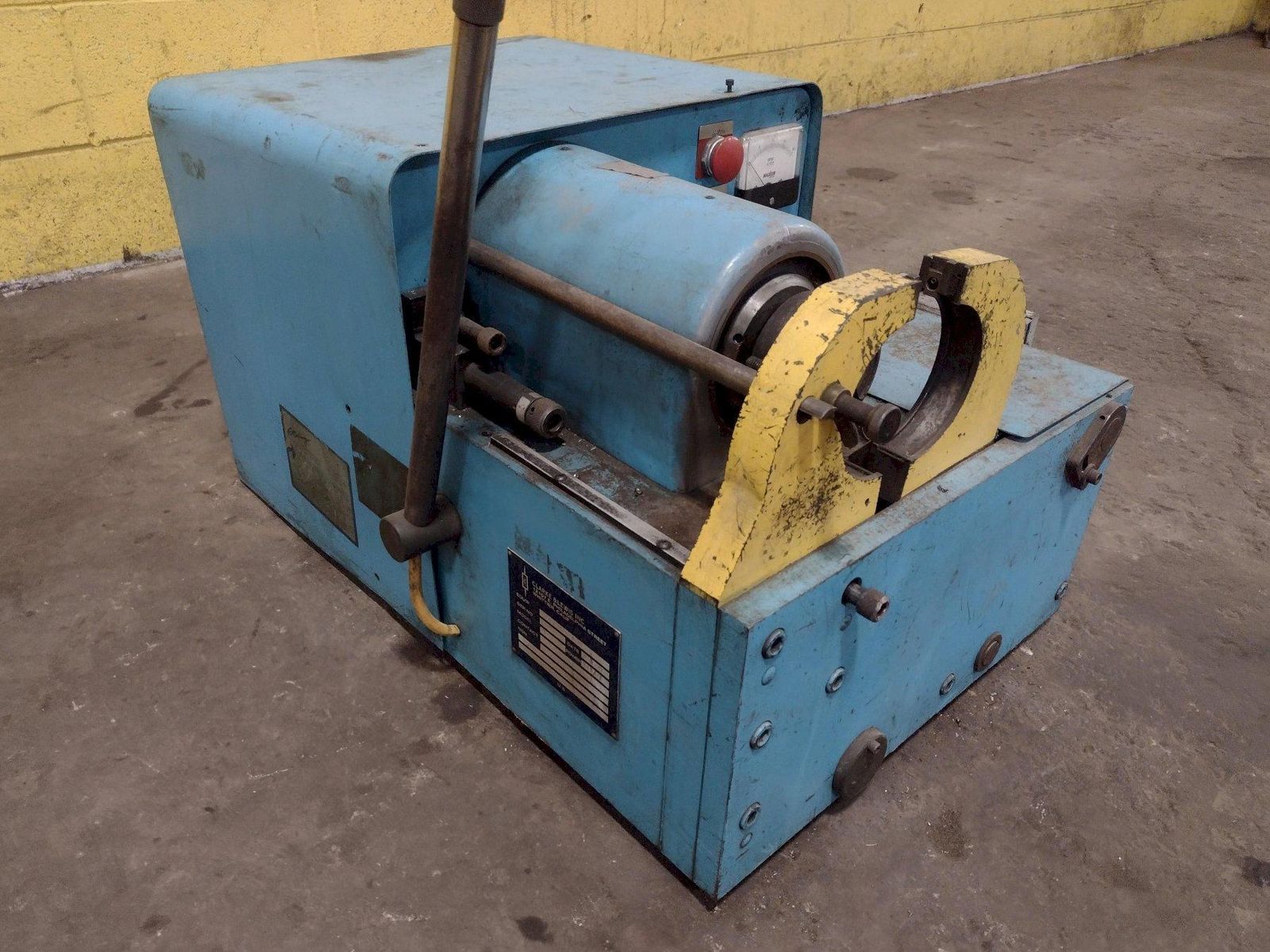

MODEL 3 SD END FINISHER
Square & Debur, Non-Ferrous & Annealed Ferrous 1/8″-3″ OFD
Flare, Non Ferrous 1/8″-3″OD x .125″ max W.T.
Flare, Annealed Ferrous 1/8″ – 3″OD x .125″ max W.T.
Bead, Non Ferrous 1/4″-3/8″OD x .035″ max W.T.
Bead, Non Ferrous 7/16″-1 3″OD x .065″ max W.T.
Bead, Annealed Ferrous 1/4″ – 3/8″ OD x .035″ max W.T.
Bead, Annealed Ferrous 7/16″ – 3″ OD x .065″ max W.T.
Pneumatic 80 to 120 PSIG
Spindle Speed, Variable 0 to 500RPM
Jaws Heat treated alloy steel pneumatic close
| Specifications | ||
|---|---|---|
| Dimensions | 22″W x 31″D x 12″H | |
| Weight | 675 pounds | |
