Machine Information

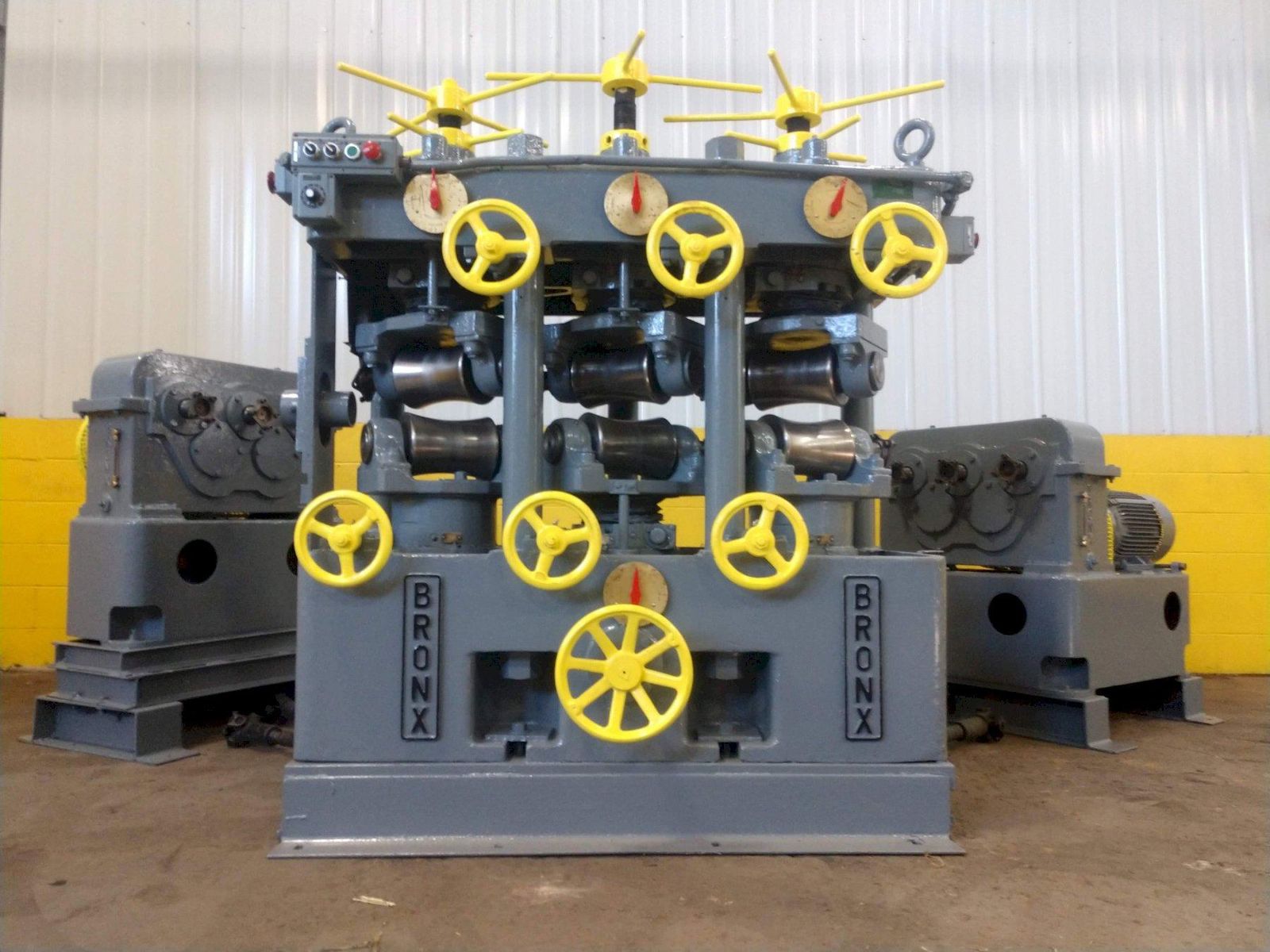

3" BRONX MODEL #CR6 TUBE & PIPE 6 ROLL ROTARY STRAIGHTENER: STOCK #10622

Stock #: 10622

Equipped With

Model ..................... CR6
Number of Rolls ........... 6-Roll
Roll Size ................. 5" Wide x 9" Long
Roll Design ............... Cross Roll, Vertically Opposed
Maximum Diameter .......... 3"
Minimum Diameter .......... .394"
Maximum Wall Thickness .... .197"
Maximum Diameter Admitted . 3"
Feed Direction ............ Right to Left
Manual Roll Adjustment .... Yes
Number of Gearboxes ....... 2, 10 HP Each
