Machine Information

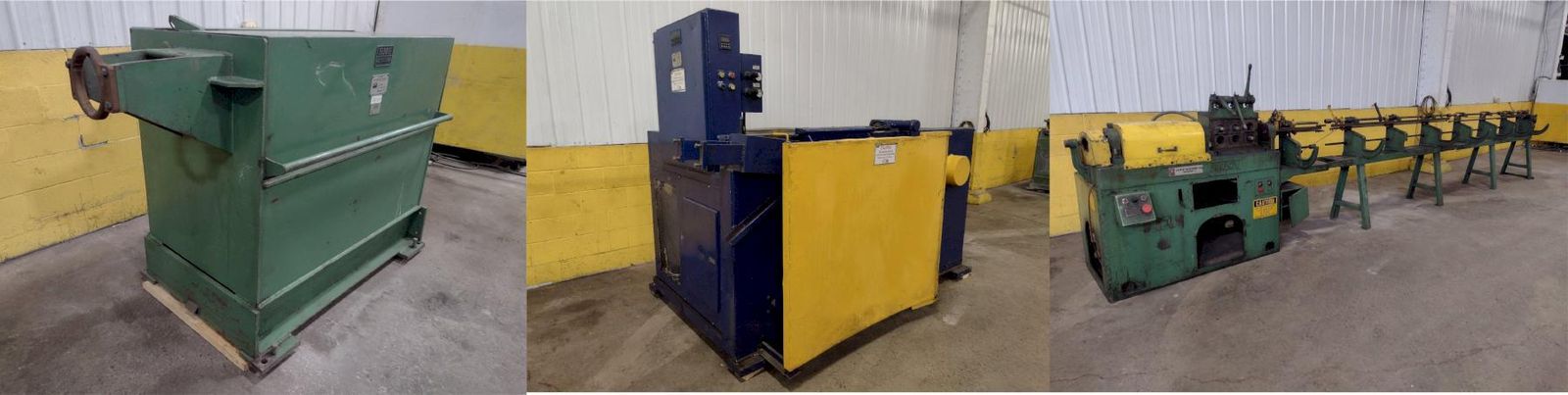

3/8" WIRE RMG & LEWIS: DESCALE, DRAW, STRATGHTEN & CUT LINE: STOCK 16186

Stock #: 16186

Equipped With

RMG DESCALER:
SERIAL ........................ 97084263
MODEL  ........................ MD-14 L2R
Wire Capacity Size Range ...... 7/32"  (5.5mm) - 9/16" (14mm)
Left to Right Wire Flow ....... YES
Entrance Guide Assembly ....... YES
Production Rate ............... Up to 500 FPM

RMG DRAWER:
Capstan ....................... 36"
Maximum Speed ................. 200FPM
Maximum Diameter .............. 5/8" (16mm)
Motor.......................... 50 HP

LEWIS STRAIGHTEN & CUT:
MODEL ........................ 8CV
WIRE DIAMETER ................ 5/32"  TO 3/8"
CUT OFF LENGTH ............... 3-1/2" TO 48"
SPEED ........................ 100-200 FPM
Exit Rolls ................... YES
AC MOTOR AND CONTROLS ........ YES
GEARED TRANSMISSION AND MECHANICAL TRIP

Buy Machines

3/8" WIRE RMG & LEWIS: DESCALE, DRAW, STRATGHTEN & CUT LINE: STOCK 16186

Stock # 16186

Share Machine
Print Details

Machine Specifications

RMG DESCALER:
SERIAL ........................ 97084263
MODEL  ........................ MD-14 L2R
Wire Capacity Size Range ...... 7/32"  (5.5mm) - 9/16" (14mm)
Left to Right Wire Flow ....... YES
Entrance Guide Assembly ....... YES
Production Rate ............... Up to 500 FPM

RMG DRAWER:
Capstan ....................... 36"
Maximum Speed ................. 200FPM
Maximum Diameter .............. 5/8" (16mm)
Motor.......................... 50 HP

LEWIS STRAIGHTEN & CUT:
MODEL ........................ 8CV
WIRE DIAMETER ................ 5/32"  TO 3/8"
CUT OFF LENGTH ............... 3-1/2" TO 48"
SPEED ........................ 100-200 FPM
Exit Rolls ................... YES
AC MOTOR AND CONTROLS ........ YES
GEARED TRANSMISSION AND MECHANICAL TRIP
