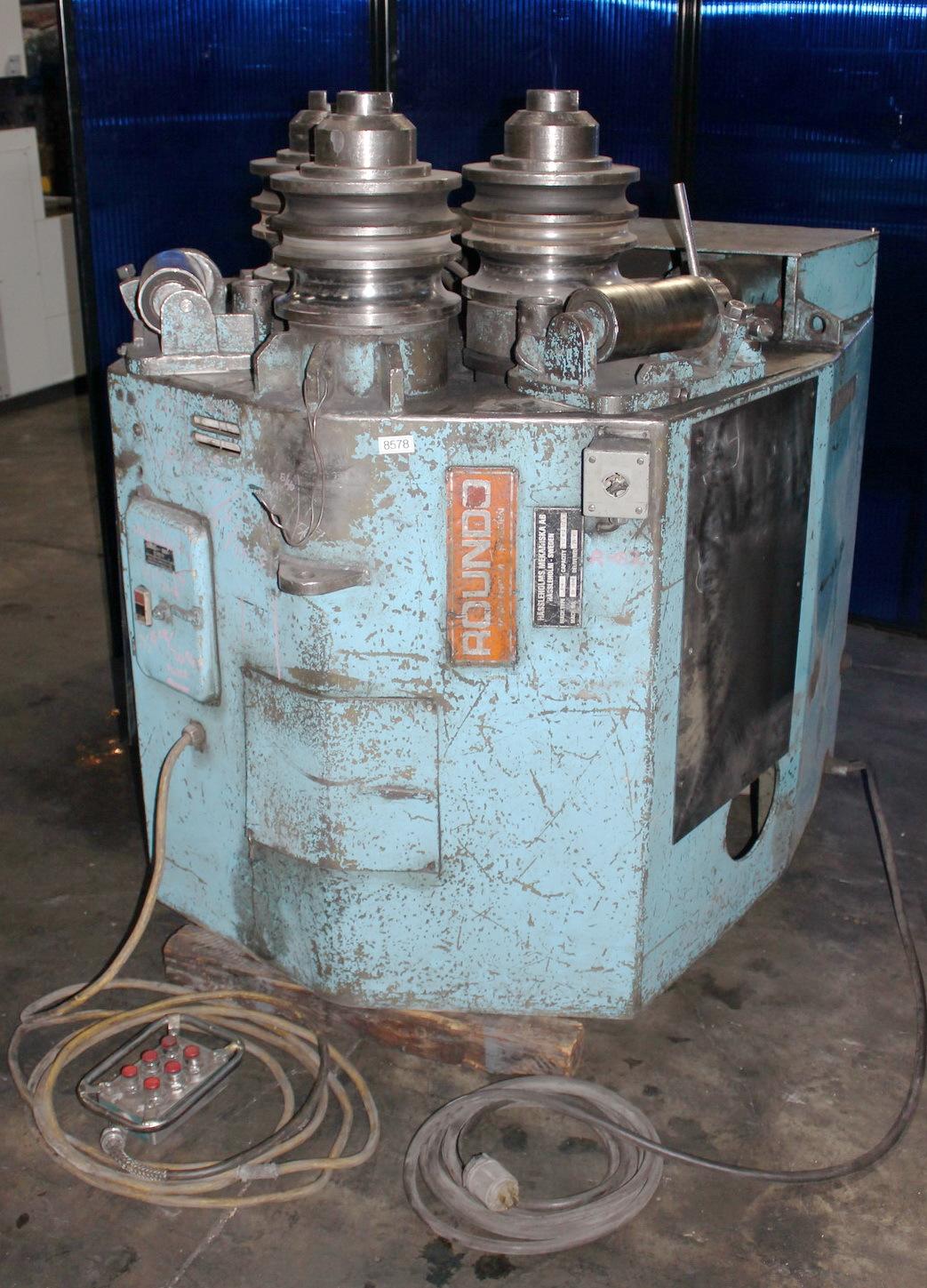

3.5" x 3.5" x 3/8" ROUNDO MODEL #R-4 HYDRAULIC ANGLE BENDING ROLL: STOCK 10416

Stock #: 10416

Equipped With

Model:....................... R-4
Manufacturer:................ Roundo
Serial #:.................... OY-1686
New:......................... 1979


Specifications

Capacity (Mild Steel):
Leg Out:..................... 3.5" x 3.5" x 3/8"
Leg In:...................... 3" x 3" x 3/8"
Flat Iron:................... 1" x 7"
On Edge:..................... 1" x 3.5"
Pipe (Schedule 40):.......... 2.5"
Square Bar:.................. 1.75"
Round Bar:................... 2"
Diameter Of Bending Rolls:... 11"
Rolling Speed:............... 33 FPM
Dimensions (L x W x H):...... 49" x 46" x 54"
Weight:...................... 5,400 Lbs.

Equipped with

- Remote Hand Pendant Control
- Horizontal/Vertical Operation
- Guide Rolls
- Hydraulic Lower Rolls Adjustment
- Horsepower: 9

Buy Machines

3.5" x 3.5" x 3/8" ROUNDO MODEL #R-4 HYDRAULIC ANGLE BENDING ROLL: STOCK 10416

Stock # 10416

Share Machine
Print Details

Machine Specifications

Model:....................... R-4
Manufacturer:................ Roundo
Serial #:.................... OY-1686
New:......................... 1979


Specifications

Capacity (Mild Steel):
Leg Out:..................... 3.5" x 3.5" x 3/8"
Leg In:...................... 3" x 3" x 3/8"
Flat Iron:................... 1" x 7"
On Edge:..................... 1" x 3.5"
Pipe (Schedule 40):.......... 2.5"
Square Bar:.................. 1.75"
Round Bar:................... 2"
Diameter Of Bending Rolls:... 11"
Rolling Speed:............... 33 FPM
Dimensions (L x W x H):...... 49" x 46" x 54"
Weight:...................... 5,400 Lbs.

Equipped with

- Remote Hand Pendant Control
- Horizontal/Vertical Operation
- Guide Rolls
- Hydraulic Lower Rolls Adjustment
- Horsepower: 9

Specifications
Angle Capacity 3.5 inches
Angle Capacity 3.5 inches
Angle Capacity .375 inches
Pipe Capacity 2.5 inches
(Init/Dbl Pinch or Pyramid) double
Hyd/Mech hydraulic
Operation (Horz, Vert, Horz/Vert) both
Power 9 horsepower
