SERIAL ............. VB 90 ELEC RH 860874 LSB 11/11

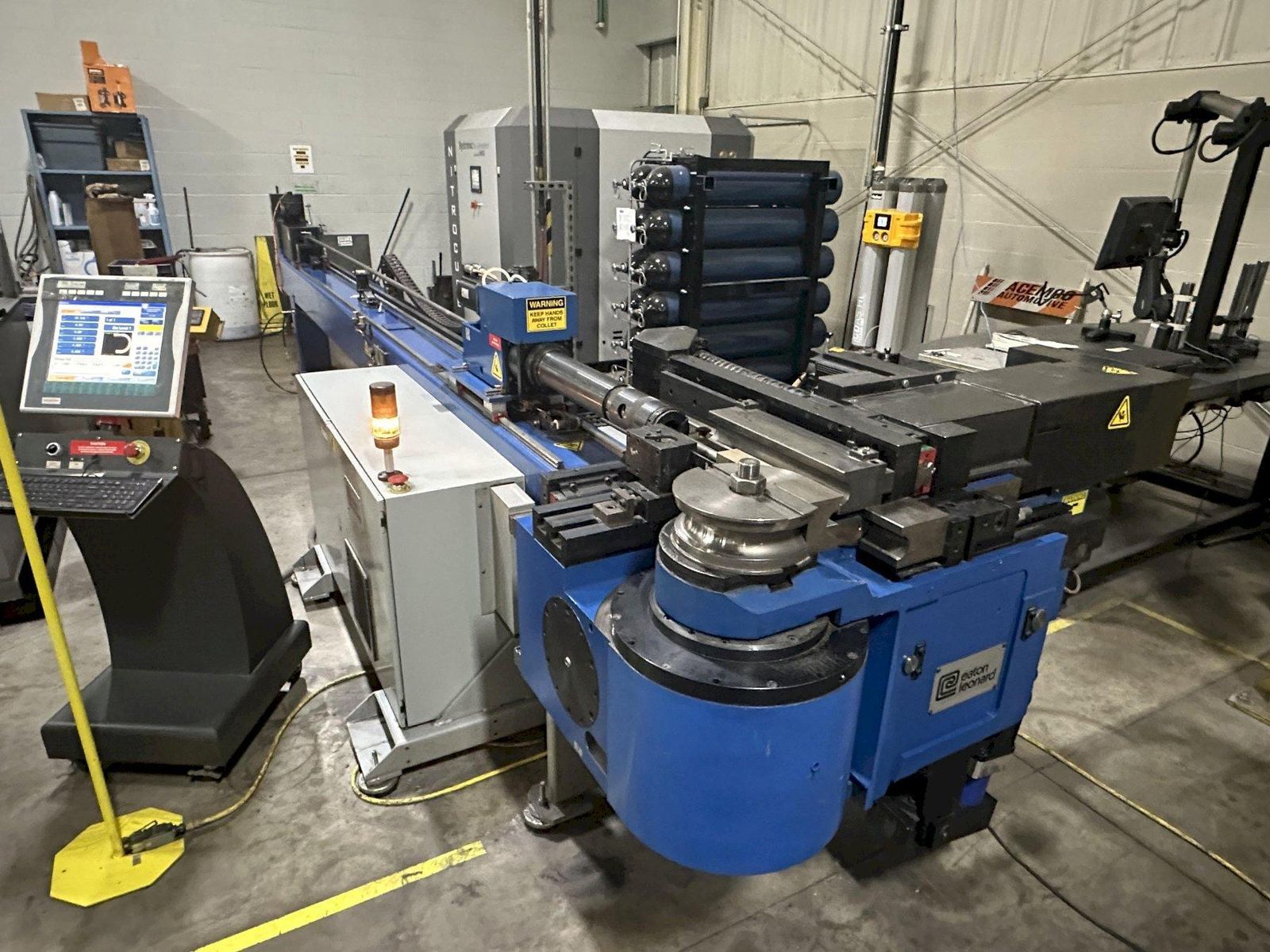

MODEL .............. VB 90 ELEC
YEAR ............... 11/2011
TUBE LENGTH ........ 78" (TUBE OVER MANDREL)
MAXIMUM TUBE OD
- STAINLESS STEEL .. 3.54" X .083"
- MILD STEEL ....... 3.54" X .109"
BEND ANGLE ......... 195 DEGREES
CENTERLINE HEIGHT .. 2" TO 2.5"
BEND SPEED ......... 15 RPM (C AXIS)
DBB SPEED .......... 3500" PER MIN (Y AXIS)
POB SPEED .......... 65 RPM (B AXIS)
HOURS .............. 1830 HOURS
MOTOR .............. 460V
Brand
EATON LEONARD
Type
Benders, Pipe, Tube & Bar
Stock No.
18104
 |
419-269-2000 |
Stock #: 18104
SERIAL ............. VB 90 ELEC RH 860874 LSB 11/11
MODEL .............. VB 90 ELEC
YEAR ............... 11/2011
TUBE LENGTH ........ 78" (TUBE OVER MANDREL)
MAXIMUM TUBE OD
- STAINLESS STEEL .. 3.54" X .083"
- MILD STEEL ....... 3.54" X .109"
BEND ANGLE ......... 195 DEGREES
CENTERLINE HEIGHT .. 2" TO 2.5"
BEND SPEED ......... 15 RPM (C AXIS)
DBB SPEED .......... 3500" PER MIN (Y AXIS)
POB SPEED .......... 65 RPM (B AXIS)
HOURS .............. 1830 HOURS
MOTOR .............. 460V
