Machine Information

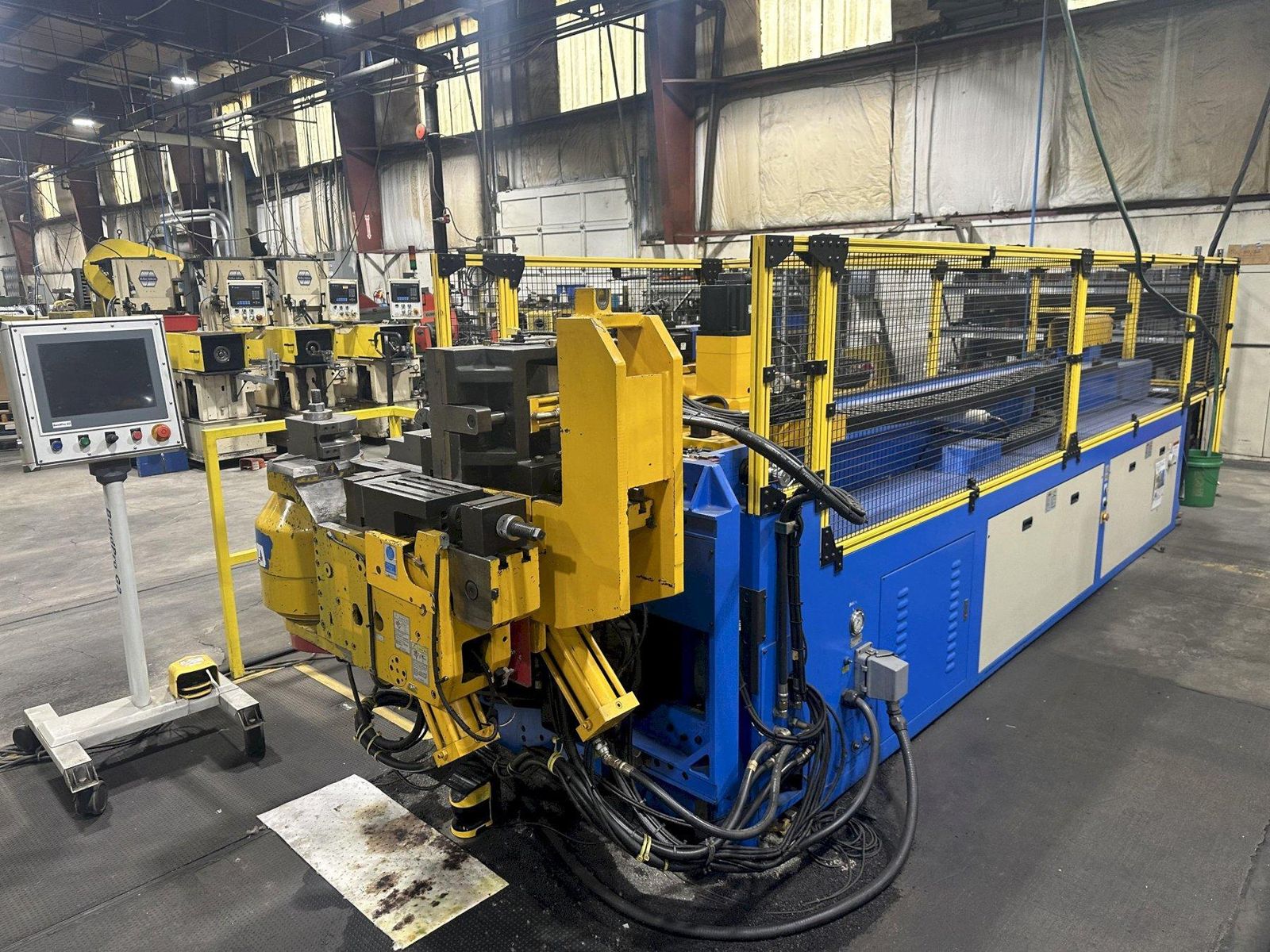

3.15" (80mm) CSM MODEL #CNC80TMRE-RBE ELECTRIC HYDRAULIC NC TUBE & PIPE BENDER: STOCK #19669

Stock #: 19669

Equipped With

MODEL ............................... CNC80TMRE-RBE
SERIAL .............................. 101202

ROUND TUBE / MILD STEEL
OD .................................. 80mm (3.15")
WT .................................. 2.8
CLR ................................. 40-280 (~1-1/2" - 11")
MANDREL LENGTH ...................... 4000 (~157-1/2")
RADII CAPACITY ...................... 3
PSH BEND ............................ ACT
BOOSTER ............................. RBE
DIMENTION / MM L * W * H (INCHES) ... 6700mm X 1500mm X 1800mm (APPROX. 263-3/4" X 59" X 70-7/8")

- AUTOMATIC MANDREL LUBRICATION
- ANTICIPATED MANDREL RETRACTION
- CARRIAGE (Y-AXIS) BY SERVO MOTOR WITH PROGRAMMABLE SPEED
- COLLET (B-AXIS) GRIP BY HYDRAULIC, ROTATION BY SERVO MOTOR
- TOOLS/RADII SHIFTING: MOTION UP-DOWN BY HYDRAULIC, MOTION LEFT-RIGHT BY SERVO MOTOR
- BEND-ARM (C-AXIS) BY SERVO MOTOR WITH EXCLUSIVE TRANSMISSION GEARS. TOLERANCE WITHIN +/-0.01°
- CLAMP DIE BY HYDRAULIC
- PRESSURE DIE BY HYDRAULIC
- STANDING PEDESTAL - SERVES EMERGENCY STOP & REMOTE CONTROL
- INDUSTRIAL PC ASSORTED WITH TOUCH-SCREEN DISPLAY, CAPABLE OF BENDING SIMULATION, 3D PREVIEW AND COLLISION DETECTION
- PROGRAMMABLE SPEED FOR Y-B-C AXIS
- WITH USB PORT, EASY FOR DATA TRANSFER
- CONVERTIBLE BETWEEN MANUAL/AUTOMATIC MODE
- CONVERTIBLE BETWEEN INCH/METRIC SETTING
- CONVERTIBLE BETWEEN XYZ/YBC AXES
