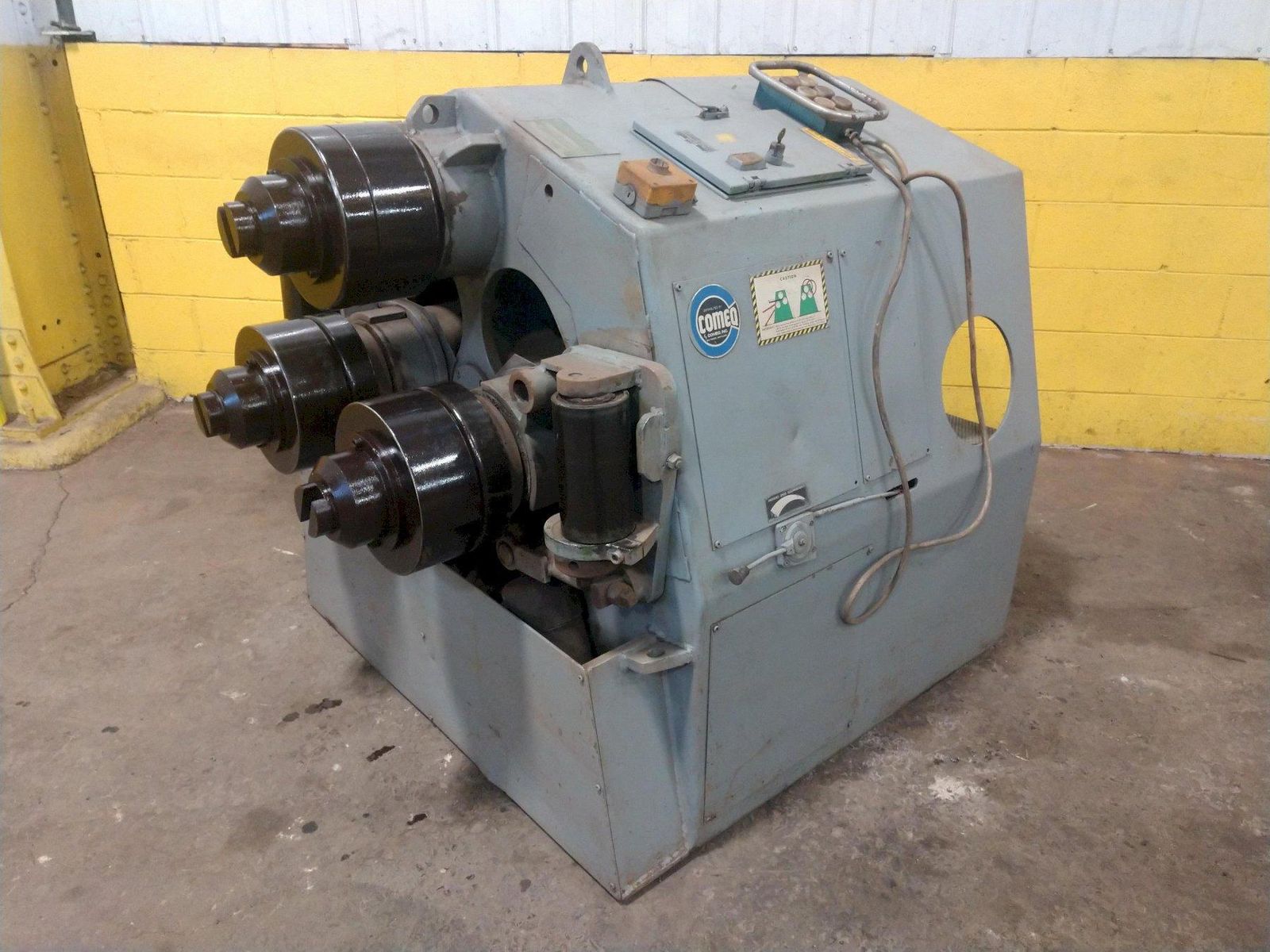

Stock #: 14095
SERIAL .............. 833259MODEL ............... R4YEAR ................ 1984
Capacity (Mild Steel):
Leg Out:..................... 3.5" x 3.5" x 3/8"
Leg In:...................... 3" x 3" x 3/8"
Flat Iron:................... 1" x 7"
On Edge:..................... 1" x 3.5"
Pipe (Schedule 40):.......... 2.5"
Square Bar:.................. 1.75"
Round Bar:................... 2"
Diameter Of Bending Rolls:... 11"
Rolling Speed:............... 33 FPM
Equipped with:
- Remote Hand Pendant Control
- Horizontal/Vertical Operation
- Guide Rolls
- Hydraulic Lower Rolls Adjustment
- Horsepower: 9
Stock # 14095
Capacity (Mild Steel):
Leg Out:..................... 3.5" x 3.5" x 3/8"
Leg In:...................... 3" x 3" x 3/8"
Flat Iron:................... 1" x 7"
On Edge:..................... 1" x 3.5"
Pipe (Schedule 40):.......... 2.5"
Square Bar:.................. 1.75"
Round Bar:................... 2"
Diameter Of Bending Rolls:... 11"
Rolling Speed:............... 33 FPM
Equipped with:
- Remote Hand Pendant Control
- Horizontal/Vertical Operation
- Guide Rolls
- Hydraulic Lower Rolls Adjustment
- Horsepower: 9
Specifications | ||
---|---|---|
Hyd/Mech | hydraulic | |
Operation (Horz, Vert, Horz/Vert) | both | |
Dimensions | 6 X 5 X 5ft | |
Weight | 5400 pounds |
