Machine Information

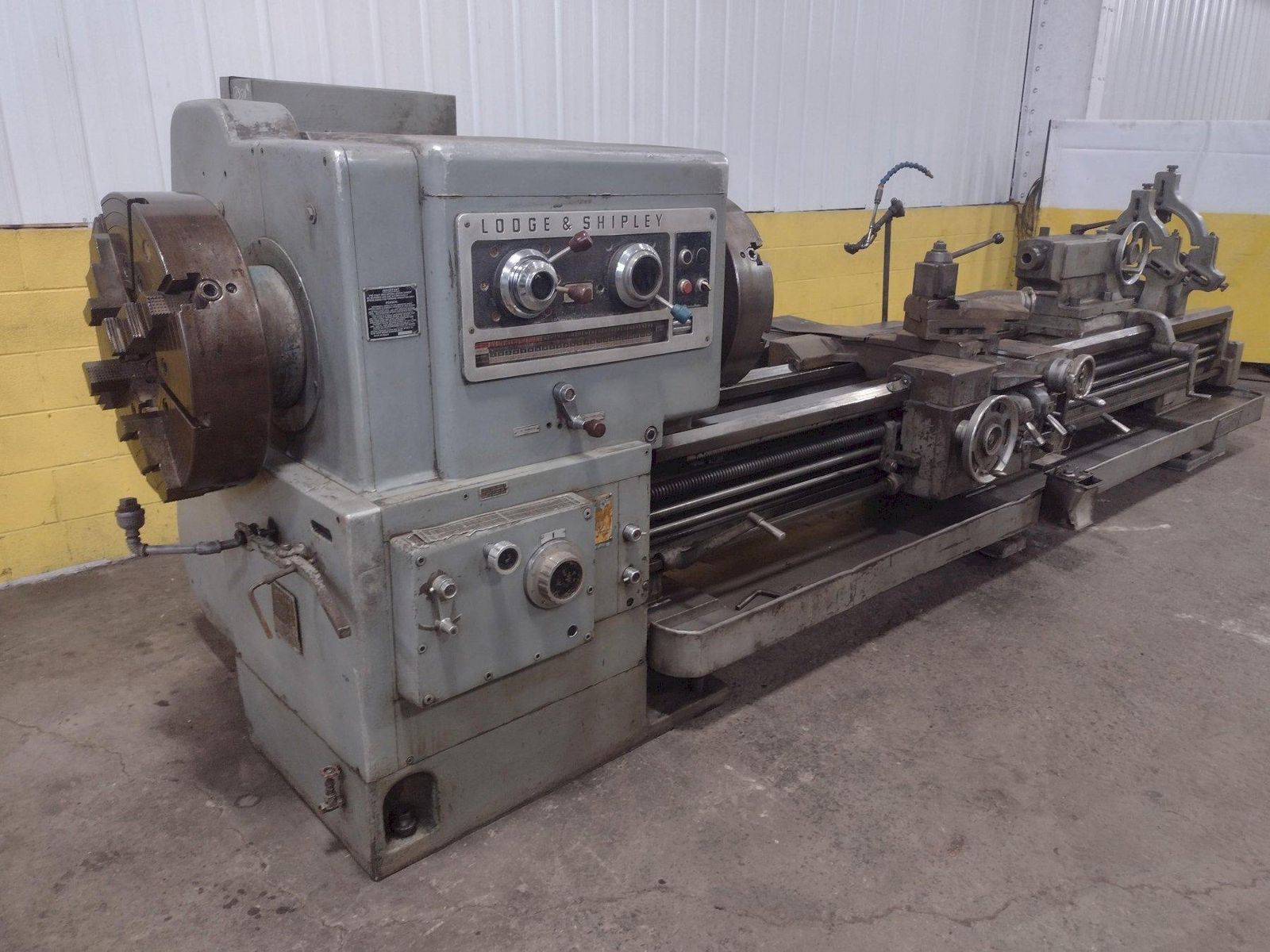

28" X 120" LODGE & SHIPLEY 8-7/8" HOLLOW SPINDLE OIL COUNTRY ENGINE LATHE: STOCK #15564

Stock #: 15564

Equipped With

SERIAL .......................... 49817
MODEL ........................... 2516
SWING OVER THE BED .............. 27-7/8"
SWING OVER THE CROSS SLIDE ...... 20"
DISTANCE BETWEEN CENTERS ........ 120"
SPINDLE SPEEDS .................. 8 - 451 RPM
HOLLOW SPINDLE HOLE ............. *** 8-7/8" ***
NUMBER OF ENGLISH THREADS ....... (55) 1 TO 64 TPI
RANGE OF FEEDS .................. 2.5 TO .160 IPR
TAPER ATTACHMENT ................ YES
THREAD DIAL ..................... YES
CHUCKS FRONT & REAR ............. 21" 4 JAW
STEADY REST ..................... 14" 3 POINT
STEADY REST ..................... 7-1/2" ROLLER
TRAVEL DIAL ..................... YES
SWIVEL COUMPOND ................. YES
CHIP PANS WITH COOLANT .......... YES
MOTOR ........................... 20 HP

Buy Machines

28" X 120" LODGE & SHIPLEY 8-7/8" HOLLOW SPINDLE OIL COUNTRY ENGINE LATHE: STOCK #15564

Stock # 15564

Share Machine
Print Details

Machine Specifications

SERIAL .......................... 49817
MODEL ........................... 2516
SWING OVER THE BED .............. 27-7/8"
SWING OVER THE CROSS SLIDE ...... 20"
DISTANCE BETWEEN CENTERS ........ 120"
SPINDLE SPEEDS .................. 8 - 451 RPM
HOLLOW SPINDLE HOLE ............. *** 8-7/8" ***
NUMBER OF ENGLISH THREADS ....... (55) 1 TO 64 TPI
RANGE OF FEEDS .................. 2.5 TO .160 IPR
TAPER ATTACHMENT ................ YES
THREAD DIAL ..................... YES
CHUCKS FRONT & REAR ............. 21" 4 JAW
STEADY REST ..................... 14" 3 POINT
STEADY REST ..................... 7-1/2" ROLLER
TRAVEL DIAL ..................... YES
SWIVEL COUMPOND ................. YES
CHIP PANS WITH COOLANT .......... YES
MOTOR ........................... 20 HP

Specifications
Weight 17350 pounds
