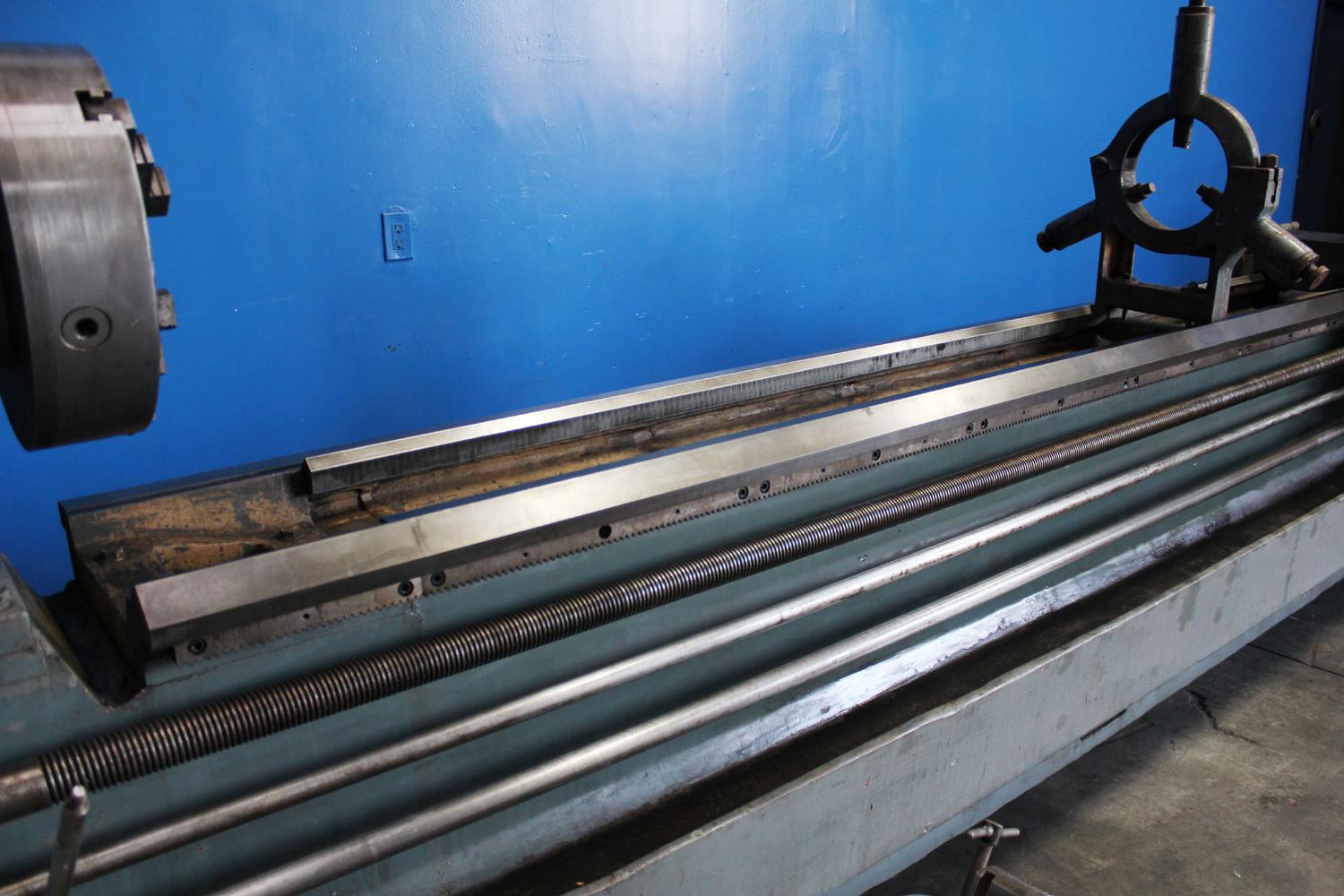

27"(36"GAP) X 240" GEMINIS GAP BED ENGINE LATHE: STOCK #10901

Stock #: 10901

Equipped With

SERIAL ...................... 4977
MODEL ....................... GE-650
SWING OVER BED .............. 27"
SWING IN GAP ................ 36"
SWING OVER CROSS SLIDE ...... 16"
DISTANCE BETWEEN CENTERS .... 240" (20')
SPINDLE SPEEDS .............. (18) 16 TO 1,250 RPM
SPINDLE NOSE ................ D1-8
HOLE THROUGH SPINDLE ........ 3-1/4"
THREADS ..................... 1 TO 112 TPI
THREADS, METRIC ............. 0.5 TO 30 MM
FEEDS ....................... 0.007" TO 0.0942"
CROSS SLIDE TRAVEL .......... 12"
TAILSTOCK QUILL TAPER ....... #5 MT
TAILSTOCK QUILL TRAVEL ...... 8"
CHUCK ....................... 3 JAW & 4 JAW
STEADY REST ................. YES
TOOL POST ................... YES
RAPID TRAVERSE ON CARRIAGE .. YES
HORSEPOWER .................. 17.5

Buy Machines

27"(36"GAP) X 240" GEMINIS GAP BED ENGINE LATHE: STOCK #10901

Stock # 10901

Share Machine
Print Details

Machine Specifications

SERIAL ...................... 4977
MODEL ....................... GE-650
SWING OVER BED .............. 27"
SWING IN GAP ................ 36"
SWING OVER CROSS SLIDE ...... 16"
DISTANCE BETWEEN CENTERS .... 240" (20')
SPINDLE SPEEDS .............. (18) 16 TO 1,250 RPM
SPINDLE NOSE ................ D1-8
HOLE THROUGH SPINDLE ........ 3-1/4"
THREADS ..................... 1 TO 112 TPI
THREADS, METRIC ............. 0.5 TO 30 MM
FEEDS ....................... 0.007" TO 0.0942"
CROSS SLIDE TRAVEL .......... 12"
TAILSTOCK QUILL TAPER ....... #5 MT
TAILSTOCK QUILL TRAVEL ...... 8"
CHUCK ....................... 3 JAW & 4 JAW
STEADY REST ................. YES
TOOL POST ................... YES
RAPID TRAVERSE ON CARRIAGE .. YES
HORSEPOWER .................. 17.5
