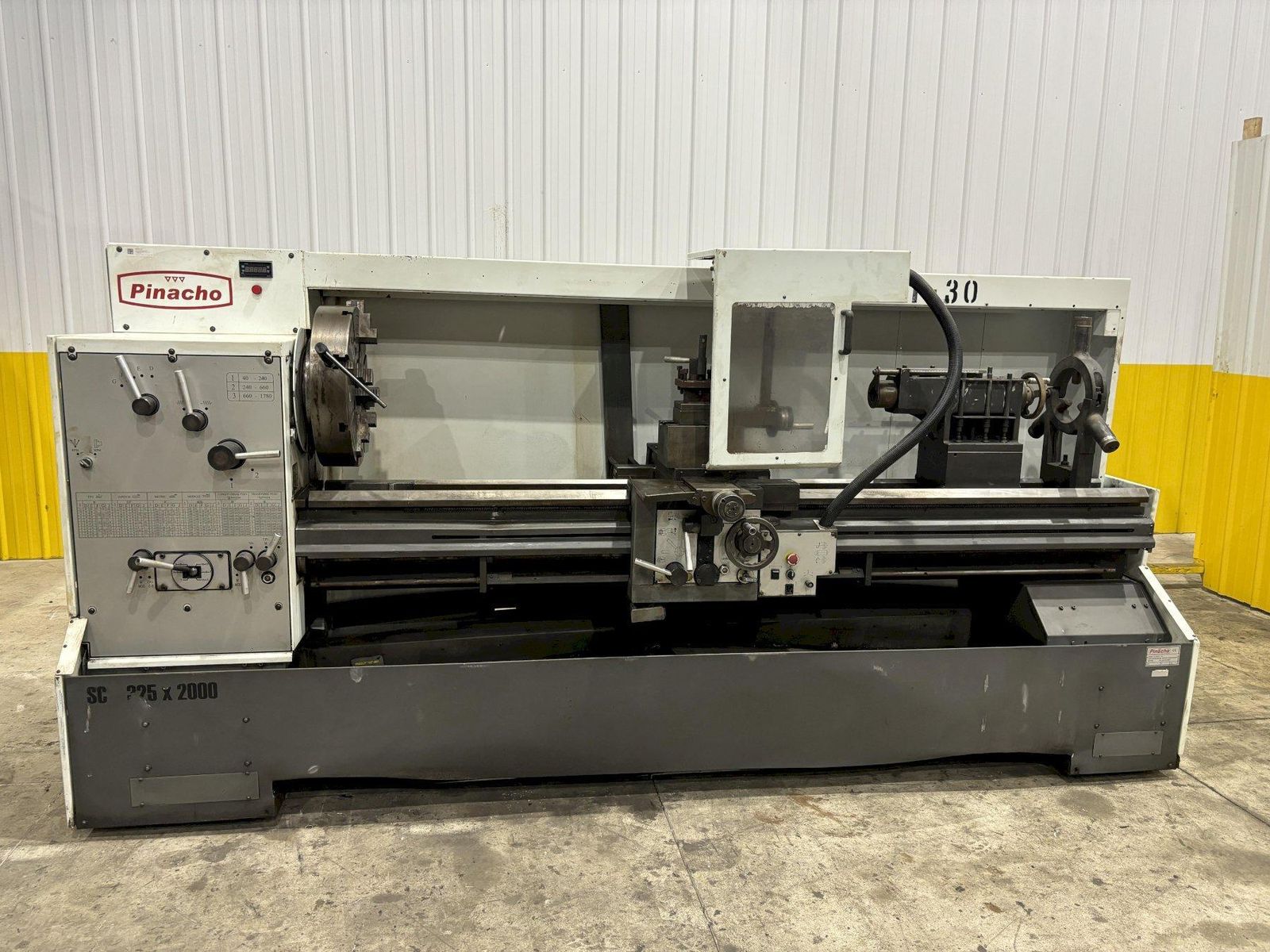

26" X 80" PINACHO MODEL #SC-325 GAP BED MANUAL ENGINE LATHE, NEW 2013: STOCK #21138

Overview

26" X 80" PINACHO MODEL #SC-325 GAP BED MANUAL ENGINE LATHE, NEW 2013: STOCK #21138

SERIAL .............................. 58380
Model ............................... SC325
Year ................................ 2013

Centre distance ..................... 80"

Centre height ....................... 13"

Swing over bed ...................... 26"

Swing over gap ...................... 36"

Gap length in front of face plate ... 9"

Bed width ........................... 14"

Swing over carriage ................. 23"

Swing over cross slide .............. 18"

Cross slide travel .................. 12-3/4"

Tool post slide travel .............. 6"

Maximum tool dimensions ............. 1" x 1"

Headstock Main spindle bore ......... 3" / 6"

Main spindle nose / Camlock ......... A2 - 11 / 11

Main spindle morse taper (MT) ....... 5

Speed range (rpm) ................... 30 - 1700

No. of speed range .................. 3

Speed range 1 (rpm) ................. 50 - 120

Speed range 2 (rpm) ................. .120 - 290

Speed range 3 (rpm) ................. 290 - 800

Norton box No. threads and feeds .... 55

Longitudinal feeds .................. 0.05 - 1.5

Cross feeds ......................... 0.025 - 0.752

Metric threads ...................... 0.5 - 15

Whitworth threads in T.P.I .......... 60 - 2

Modular threads ..................... 0.25 - 7.5

Pitch diametral threads ............. 120 - 4

Ø35 lead screw rod pitch ............ 1/4"

Tail stock barrel diameter .......... 3-3/4"

Tail stock barrel travel ............ 8-1/2"

Tail stock morse taper (MT) ......... 5

Fixed Steady capacity ............... 7-1/4"

Follow Rest capacity ................ 5"

Main Motor Power (kw) ............... 7.5

Pump Motor Power (kw) ............... 0.1

Capacity of coolant tank (Lts) ...... 151

Overall Dimensions

Length .............................. 150"

Width ............................... 44"

Height .............................. 72"

Weight (lbs.) ....................... 5512
