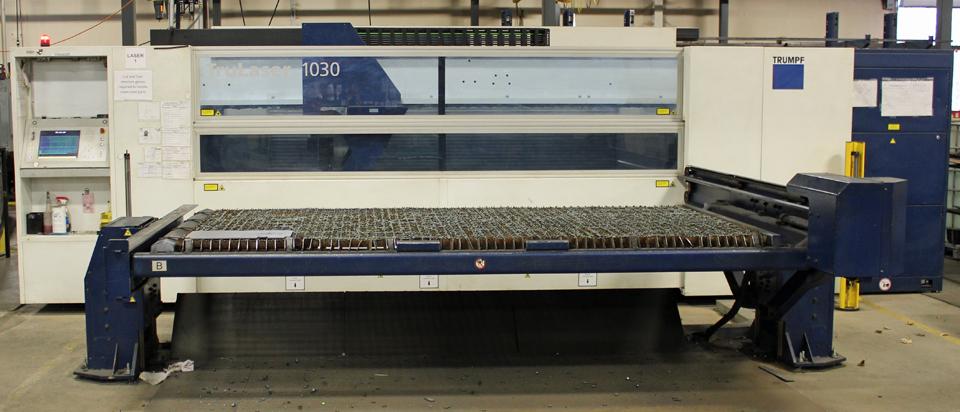

2500 WATT TRUMPF MODEL 1030 (5' X 10') FLYING OPTIC CNC LASER CUTTING SYSTEMS: STOCK 10315

Stock #: 10315

Equipped With

Trumpf 1030 2.5KW Laser Cutting System, 2012

Trumpf 1030 5’ X 10’ 2500 Watt Flying Optic CNC Laser Cutting System
With Siemens CNC Controller, Trumpf Trucoax 2500 Watt Resonator,
Automatic Front
Loading Pallet Changer,
Light Curtains And Beam On Hours Under 7K

INCLUDES: Siemens CNC Controller,
Trumpf Trucoax 2500 Watt Resonator,
Automatic Front Loading Pallet Changer,
Light Curtains


GENERAL SPECIFICATIONS
Travels: X 120”, Y 60”, Z 3”
Workplace Maximum Weight: 1,587 Lbs.
Maximum Speeds: Individual Axis 2,362 In/Min
Combined Axis 3,346 In/Min
CNC Control: Siemens Sinumerik 840D
Resonator: TruCoax 2500
Beam On Time 7779:11
Laser On Time 21109:49
Max Power: 2,500 Watts
Cutting Capacities:
Mild Steel: 0.6”
Stainless Steel: 0.3”
Aluminum: 0.25”
Dimensions: 291” X 110” X 90”
Weight: 19,400 Lbs.


Buy Machines

2500 WATT TRUMPF MODEL 1030 (5' X 10') FLYING OPTIC CNC LASER CUTTING SYSTEMS: STOCK 10315

Stock # 10315

Share Machine
Print Details

Machine Specifications

Trumpf 1030 2.5KW Laser Cutting System, 2012

Trumpf 1030 5’ X 10’ 2500 Watt Flying Optic CNC Laser Cutting System
With Siemens CNC Controller, Trumpf Trucoax 2500 Watt Resonator,
Automatic Front
Loading Pallet Changer,
Light Curtains And Beam On Hours Under 7K

INCLUDES: Siemens CNC Controller,
Trumpf Trucoax 2500 Watt Resonator,
Automatic Front Loading Pallet Changer,
Light Curtains


GENERAL SPECIFICATIONS
Travels: X 120”, Y 60”, Z 3”
Workplace Maximum Weight: 1,587 Lbs.
Maximum Speeds: Individual Axis 2,362 In/Min
Combined Axis 3,346 In/Min
CNC Control: Siemens Sinumerik 840D
Resonator: TruCoax 2500
Beam On Time 7779:11
Laser On Time 21109:49
Max Power: 2,500 Watts
Cutting Capacities:
Mild Steel: 0.6”
Stainless Steel: 0.3”
Aluminum: 0.25”
Dimensions: 291” X 110” X 90”
Weight: 19,400 Lbs.


Videos
Specifications
Sheet-W 60 inches
Sheet-L 120 inches
Wattage 2500 horsepower
X-Travel 120 inches
Y-Travel 60 inches
Z-Travel 3 inches
CNC Control yes
Type of CNC Control Siemens Sinumerik 840D
Dimensions 291” X 110” X 90”
Weight 19400 pounds
