Machine Information

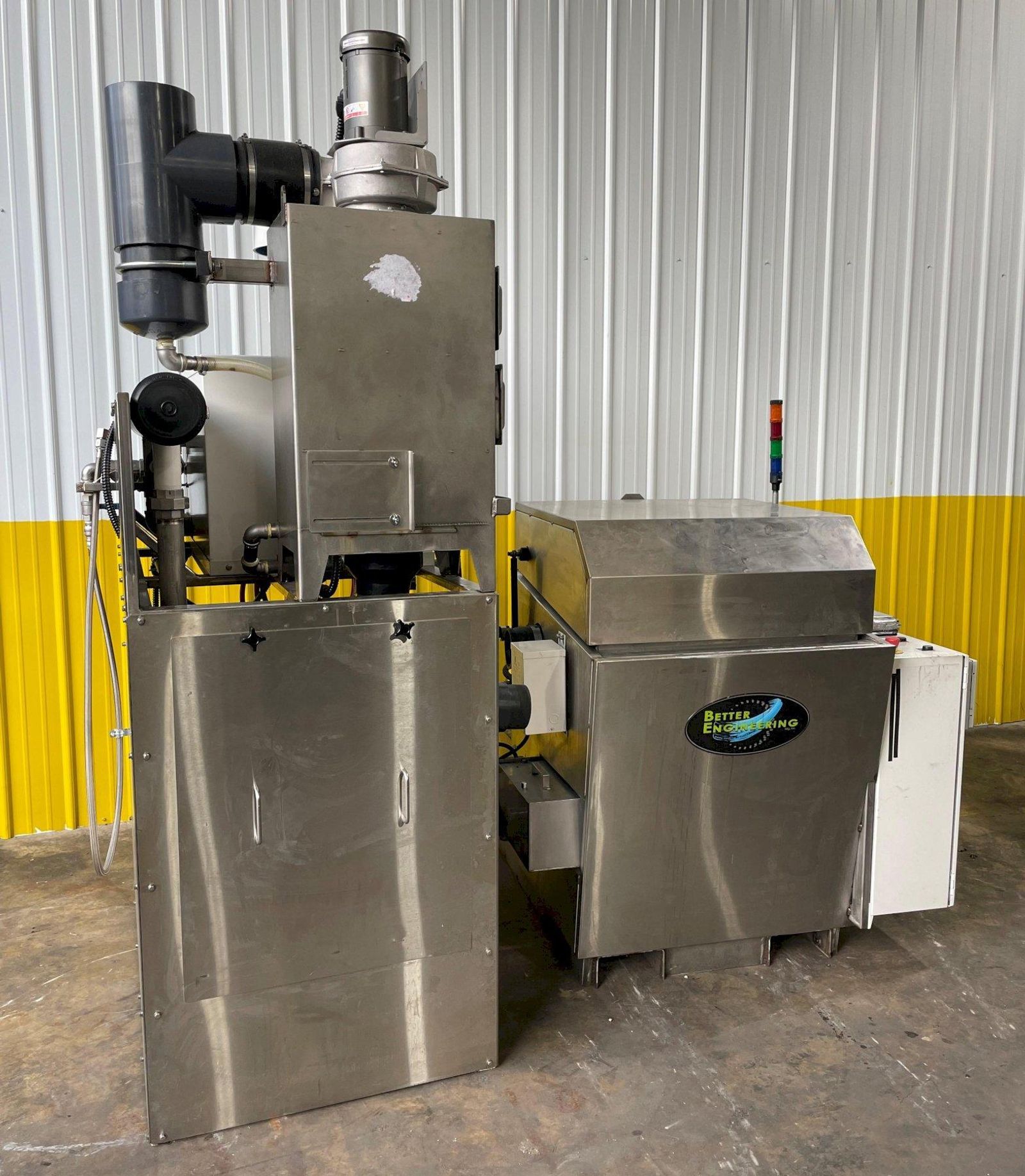

25" X 18" BETTER ENGINEERING MODEL #T-2500 TOP LOADING ROTARY PARTS WASHER: STOCK #15565

Stock #: 15565

Equipped With

Serial ................... 22945
Year New ................. 03/2019
Model .................... T-2500
Top Loading Design ....... Yes
Basket Turntable ......... 25" Diameter
Work Piece Height ........ 18" max
Table Weight Capacity .... 500 lbs
Number of Stages ......... 3: Wash, Rinse, Air Heat
Wash Temp Controller ..... Yes, Digital
Rinse Temp Controller .... Yes, Digital
Air Heat Temp Controller . Yes, Digital
Heated Tank .............. Yes
Oil Skimmer .............. Yes
Steam Exhaust ............ Yes
Power Lid Open & Close ... Yes
Tank Size ................ 50 Gallons
Pump Motor ............... 3.0 hp
Table Drive Motor ........

OPTIONS INCLUDED:
- ARC-22 RINSE SYSTEM: When the wash cycle ends, there is a programmed pause to allow the wash solution to return to the “wash tank” and then the parts are sprayed with fresh water (3-5 GPM). The rinse water is atomically diverted to an outside drain connection and  recirculated in a separate 50 gallon tank (stainless steel.)

- RGB-11 AIR DRYING SYSTEM: After the wash or wash/rinse sequence, the parts are dried by blasting them with ambient or hot air.

- ASX-11 STEAM EXHAUST SYSTEM: Evacuates the steam before you open the door or lid. A two (2) position selector switch allows the blower to start running at the beginning of a cycle or at the end. ASX-11 blowers have a TEFC motor and a cast aluminum fan body.

Buy Machines

25" X 18" BETTER ENGINEERING MODEL #T-2500 TOP LOADING ROTARY PARTS WASHER: STOCK #15565

Stock # 15565

Share Machine
Print Details

Machine Specifications

Serial ................... 22945
Year New ................. 03/2019
Model .................... T-2500
Top Loading Design ....... Yes
Basket Turntable ......... 25" Diameter
Work Piece Height ........ 18" max
Table Weight Capacity .... 500 lbs
Number of Stages ......... 3: Wash, Rinse, Air Heat
Wash Temp Controller ..... Yes, Digital
Rinse Temp Controller .... Yes, Digital
Air Heat Temp Controller . Yes, Digital
Heated Tank .............. Yes
Oil Skimmer .............. Yes
Steam Exhaust ............ Yes
Power Lid Open & Close ... Yes
Tank Size ................ 50 Gallons
Pump Motor ............... 3.0 hp
Table Drive Motor ........

OPTIONS INCLUDED:
- ARC-22 RINSE SYSTEM: When the wash cycle ends, there is a programmed pause to allow the wash solution to return to the “wash tank” and then the parts are sprayed with fresh water (3-5 GPM). The rinse water is atomically diverted to an outside drain connection and  recirculated in a separate 50 gallon tank (stainless steel.)

- RGB-11 AIR DRYING SYSTEM: After the wash or wash/rinse sequence, the parts are dried by blasting them with ambient or hot air.

- ASX-11 STEAM EXHAUST SYSTEM: Evacuates the steam before you open the door or lid. A two (2) position selector switch allows the blower to start running at the beginning of a cycle or at the end. ASX-11 blowers have a TEFC motor and a cast aluminum fan body.
