Machine Information

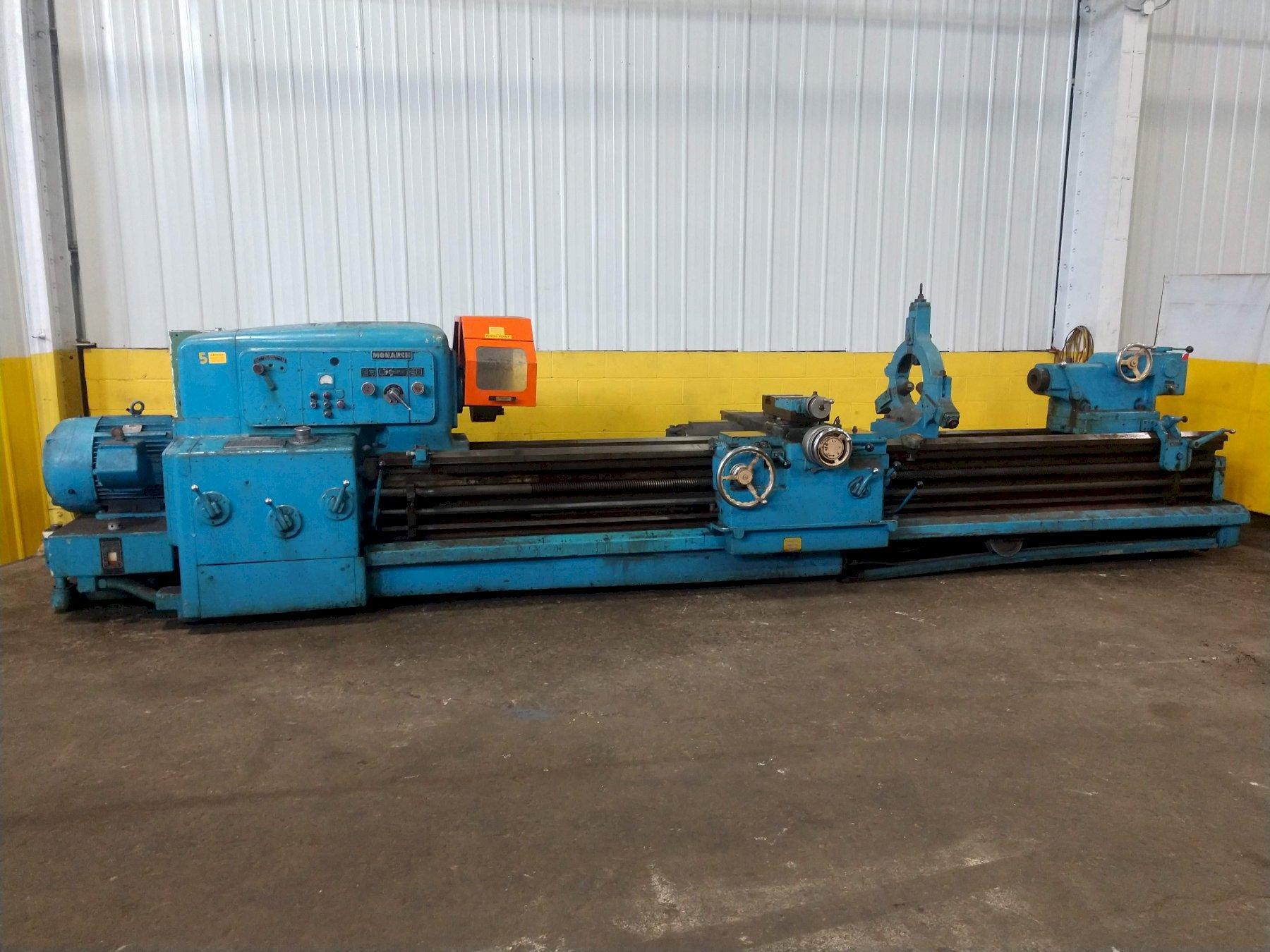

25" X 144" MONARCH MODEL #2516-144 HEAVY DUTY ENGINE LATHE: STOCK #14833

Stock #: 14833

Equipped With

SERIAL .................... 45680
MODEL ..................... 2516 X 144
SWING OVER WAYS ........... 25"
SWING OVER CROSS SLIDE .... 16"
DISTANCE BETWEEN CENTERS .. 144"
SPINDLE SPEEDS ............ (36) 66 TO 833 RPM
FEEDS ..................... (66) .0030" TO .1683" IPR
THREADS ................... (66) 1/2 TO 28 TPI
DIAMETER OF SPINDLE HOLE .. 3-1/16"
CHUCK ..................... 16" 3-JAW

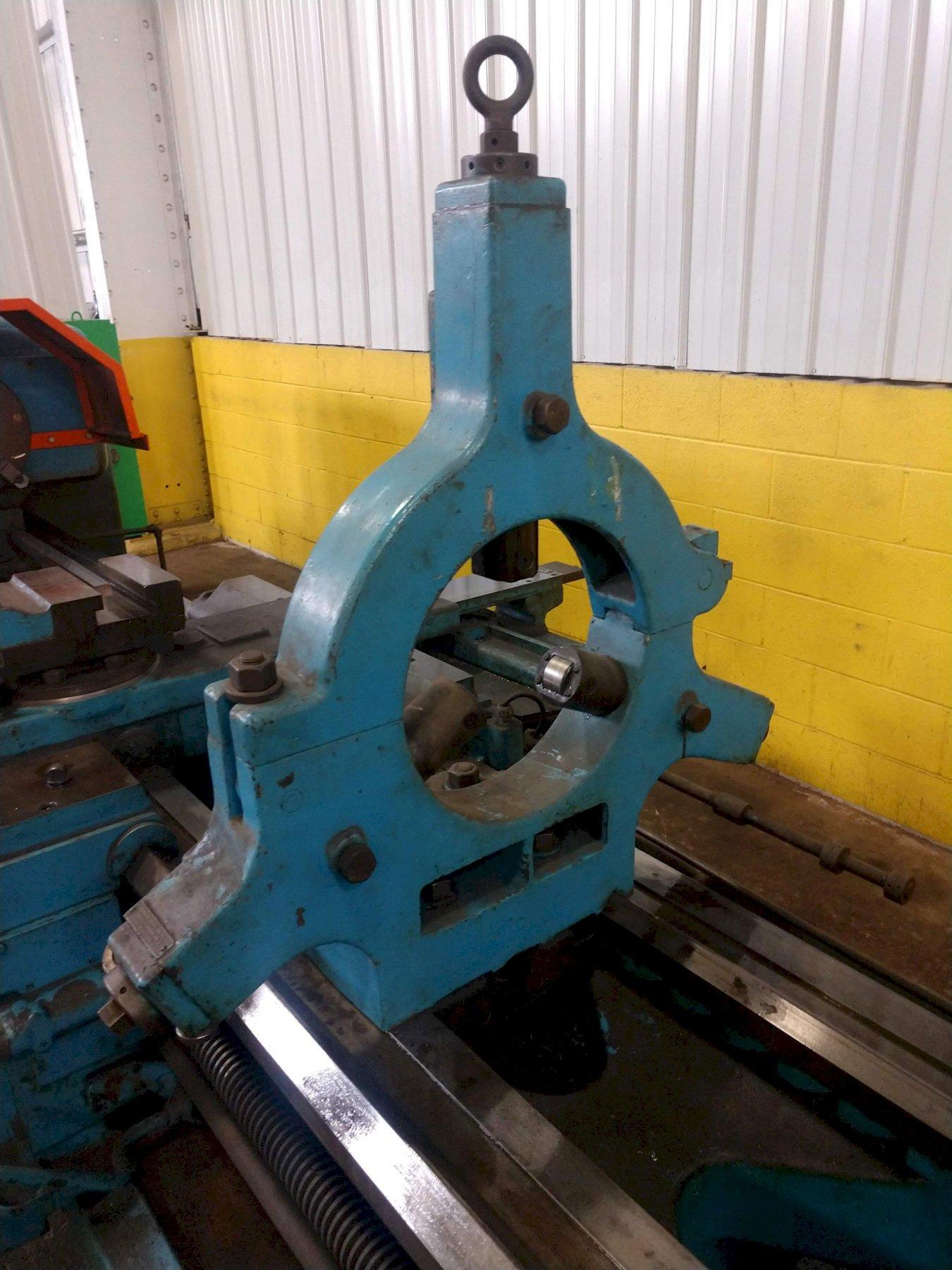

STEADY REST ............... 12" ROLLER TYPE
THREAD DIAL ............... YES
TAPER ATTACHMENT .......... YES
COOLANT ................... YES
SPLASH GAURD .............. YES
MOTOR ..................... 40 HP

Buy Machines

25" X 144" MONARCH MODEL #2516-144 HEAVY DUTY ENGINE LATHE: STOCK #14833

Stock # 14833

Share Machine
Print Details

Machine Specifications

SERIAL .................... 45680
MODEL ..................... 2516 X 144
SWING OVER WAYS ........... 25"
SWING OVER CROSS SLIDE .... 16"
DISTANCE BETWEEN CENTERS .. 144"
SPINDLE SPEEDS ............ (36) 66 TO 833 RPM
FEEDS ..................... (66) .0030" TO .1683" IPR
THREADS ................... (66) 1/2 TO 28 TPI
DIAMETER OF SPINDLE HOLE .. 3-1/16"
CHUCK ..................... 16" 3-JAW
STEADY REST ............... 12" ROLLER TYPE
THREAD DIAL ............... YES
TAPER ATTACHMENT .......... YES
COOLANT ................... YES
SPLASH GAURD .............. YES
MOTOR ..................... 40 HP

Specifications
