Machine Information

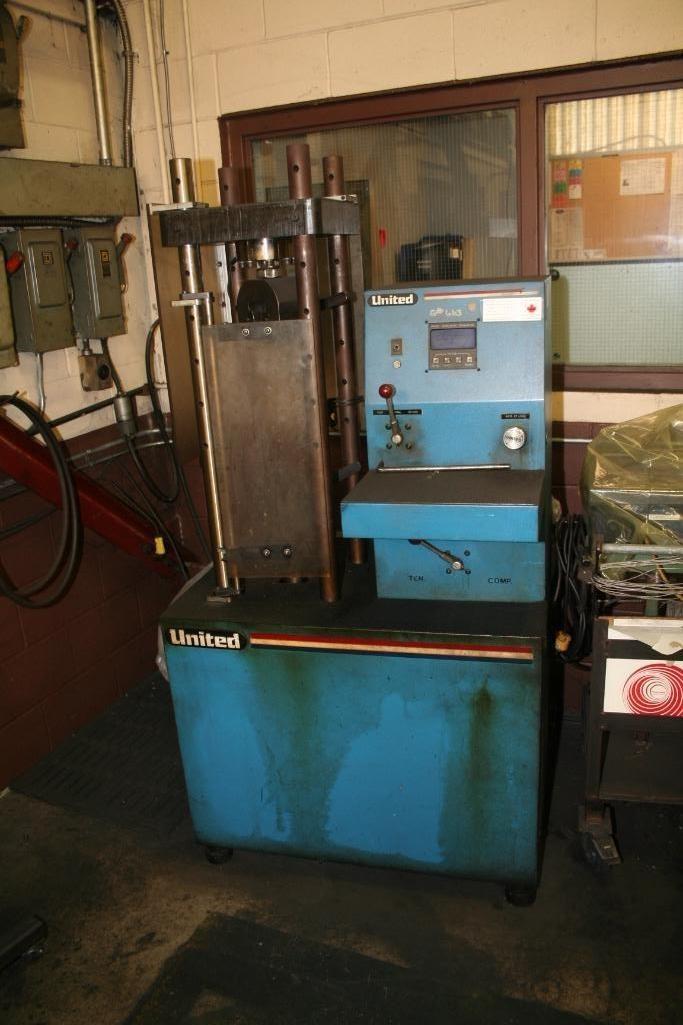

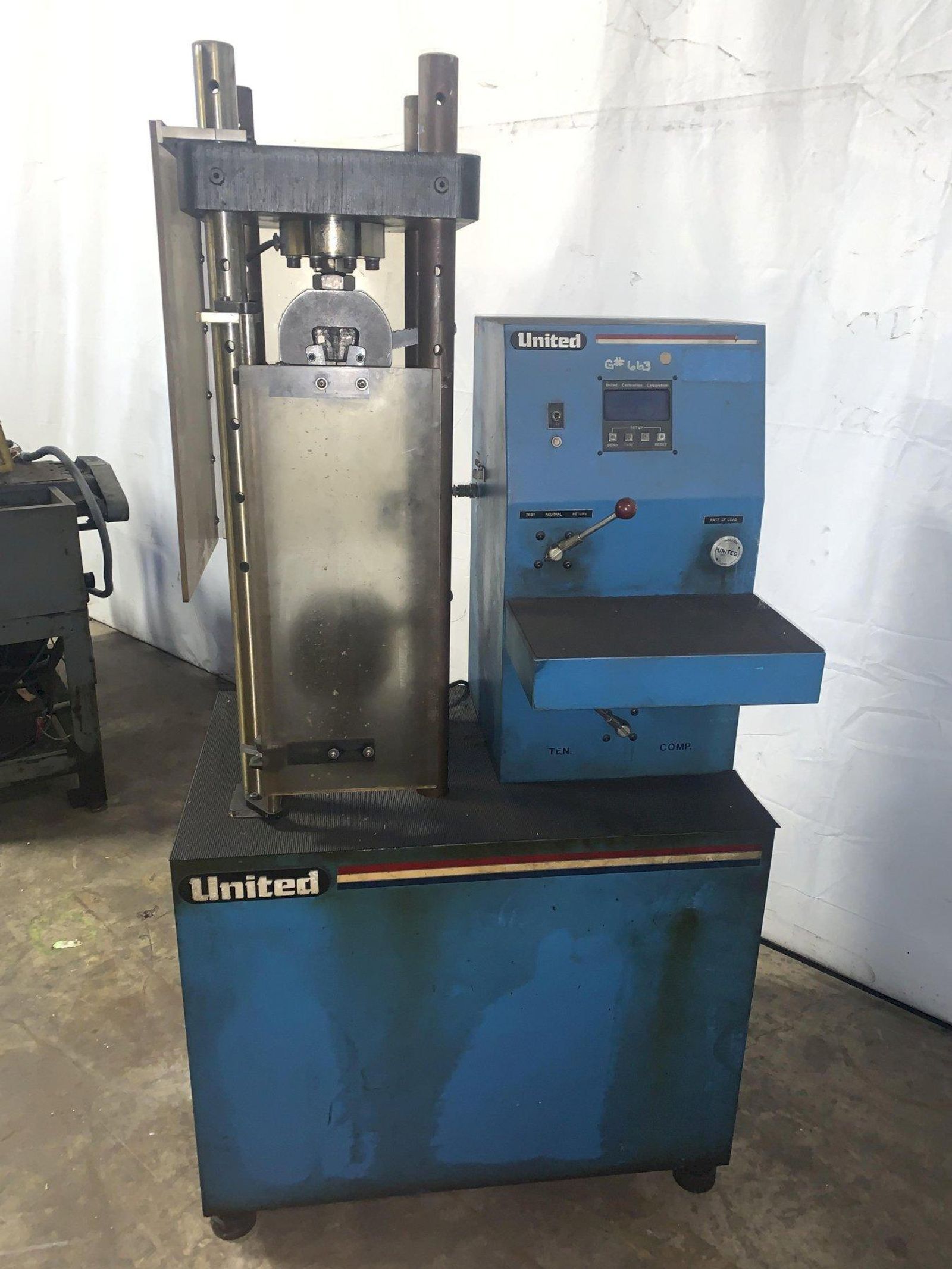

300 kN UNITED MODEL #LCH-60 SPEEDY TESTER: STOCK #10858

Stock #: 10858

Equipped With

SERIAL .................... 496407
MODEL ..................... LCH-60
LOAD CELL ................. 300 KN
CAPACITY:.................. 67,440 LBF
RETURN:.................... 5 IN PER MIN.
PISTON TRAVEL:............. 8 IN
COLUMN HEIGHT:............. 41 IN
UNITED LCH FRAME .......... LCH-300

WEIGHT:.................... 1380 LBS
DIMENSIONS:................ 24"L x 36"W x 72"H


United LCH Speedy Tester

Features & Benefits


Load Rate: Variable. Approx. 100 lbs. (0.44 kN)/min. to a maximum of 40,000 lbs. (178 kN/min)
Return Speed: 4 inches (102mm) per minute
Piston Travel: 4.75 inches (121mm)
Column Height: 30 inches (762mm)
Power Req: 120V, 60Hz, 20A or 240V, 50HZ, 10A
Weight: 160 lbs. (72.6Kg) excluding grips
Dimensions: 23” wide x 42” high x 12” deep

Standard Features

Automatic rate-of-load display
Digital display with resolution of one pound
RS-232C port
Peak load detection—displays and freezes highest reading obtained
Overload protection system
Interchangeable load cell capability—standardization feature allows interchangeability of load cells without recalibration
Easily adjustable crosshead
High accuracy—within ±0.5% of indicated load + 0.005% of capacity
Quality construction—constructed of highest grade materials and U.S. made, precision components
JOG sample pre-load system
