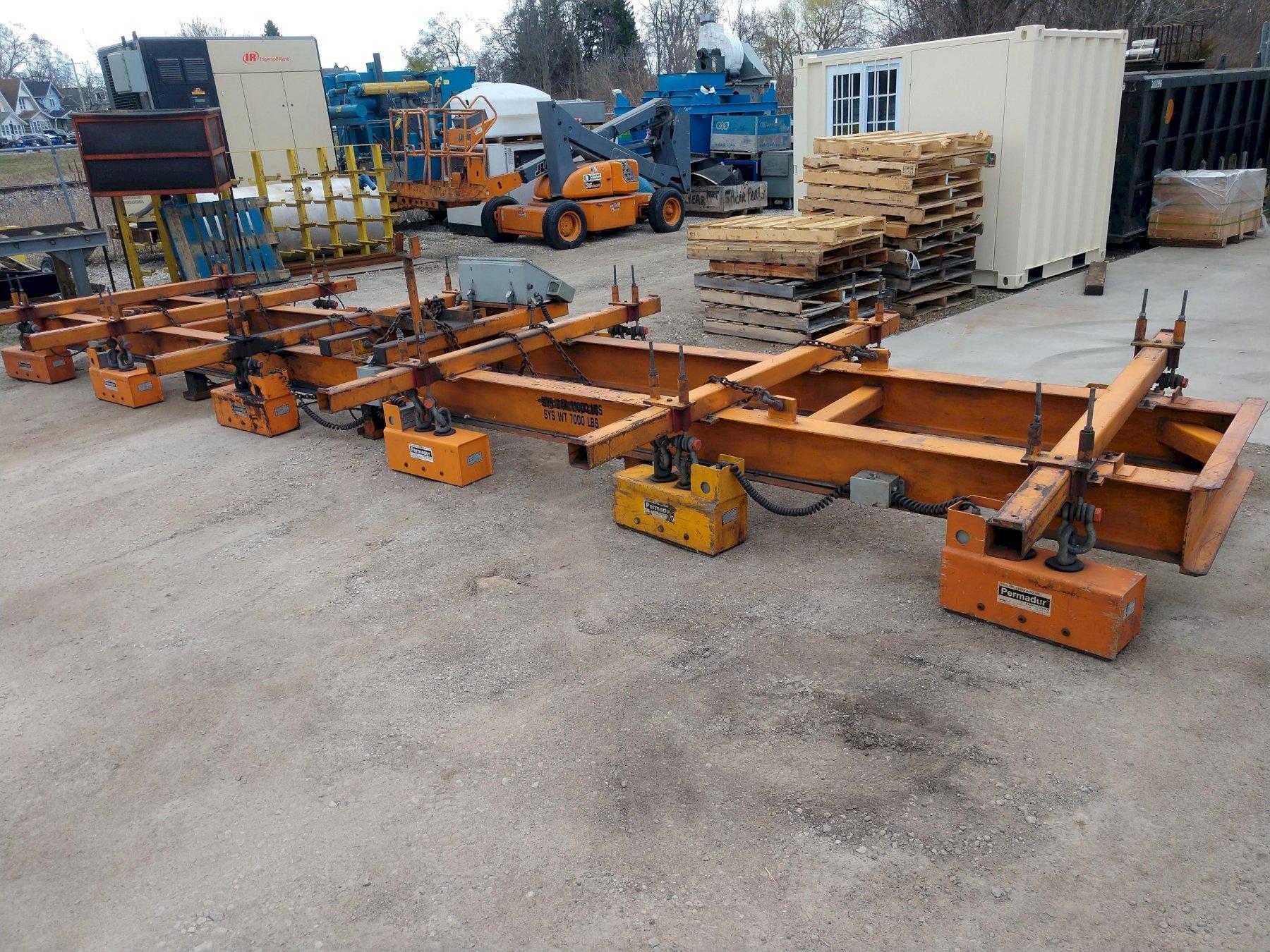

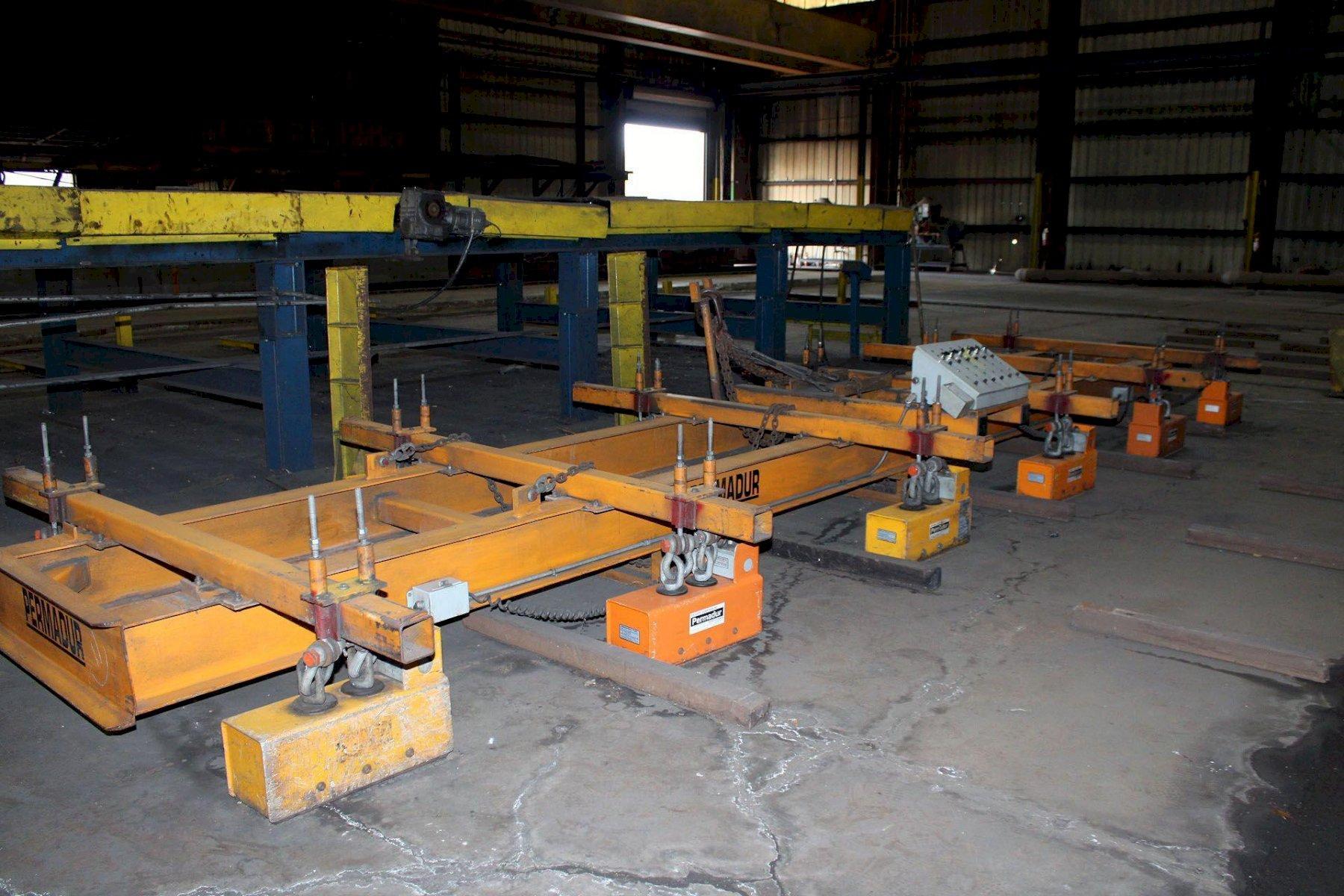

8,825 LBS PERMADUR MODEL 612 PLATE LIFTING MAGNET HANDLING SYSTEM (90”-149”W x 317”-372”L x 7/16”-9/16”Thick): STOCK #14386

Stock #: 14386

Equipped With

SERIAL .............. 002754
NEW ................. 01/2008
MODEL ............... 612 PLATE HANDLER
LIFTING CAPACITY .... 8,825 LBS
NUMBER OF MAGNETS ... 12
MAGNET MODEL ........ TP-2000
CONTROL STATION ..... YES
PENDANT CONTROL ..... YES
LOAD BEAM ........... 26' LONG


RATED SYSTEM CAPACITY .. 90”-149”W X 317”-372”L X 7/16”-9/16” THICK
(WITH ALL MAGNETS OPERATING & IN FULL CONTACT WITH THE MILD STEEL PLATE)

8,825 LBS PERMADUR MODEL 612 PLATE LIFTING MAGNET HANDLING SYSTEM (90”-149”W x 317”-372”L x 7/16”-9/16”Thick): STOCK #14386

Stock # 14386

Request a Quote

Share Machine

Print Details

Make an Offer
















Download Images

View All Images

Machine Specifications

SERIAL .............. 002754
NEW ................. 01/2008
MODEL ............... 612 PLATE HANDLER
LIFTING CAPACITY .... 8,825 LBS
NUMBER OF MAGNETS ... 12
MAGNET MODEL ........ TP-2000
CONTROL STATION ..... YES
PENDANT CONTROL ..... YES
LOAD BEAM ........... 26' LONG

RATED SYSTEM CAPACITY .. 90”-149”W X 317”-372”L X 7/16”-9/16” THICK
(WITH ALL MAGNETS OPERATING & IN FULL CONTACT WITH THE MILD STEEL PLATE)
