Machine Information

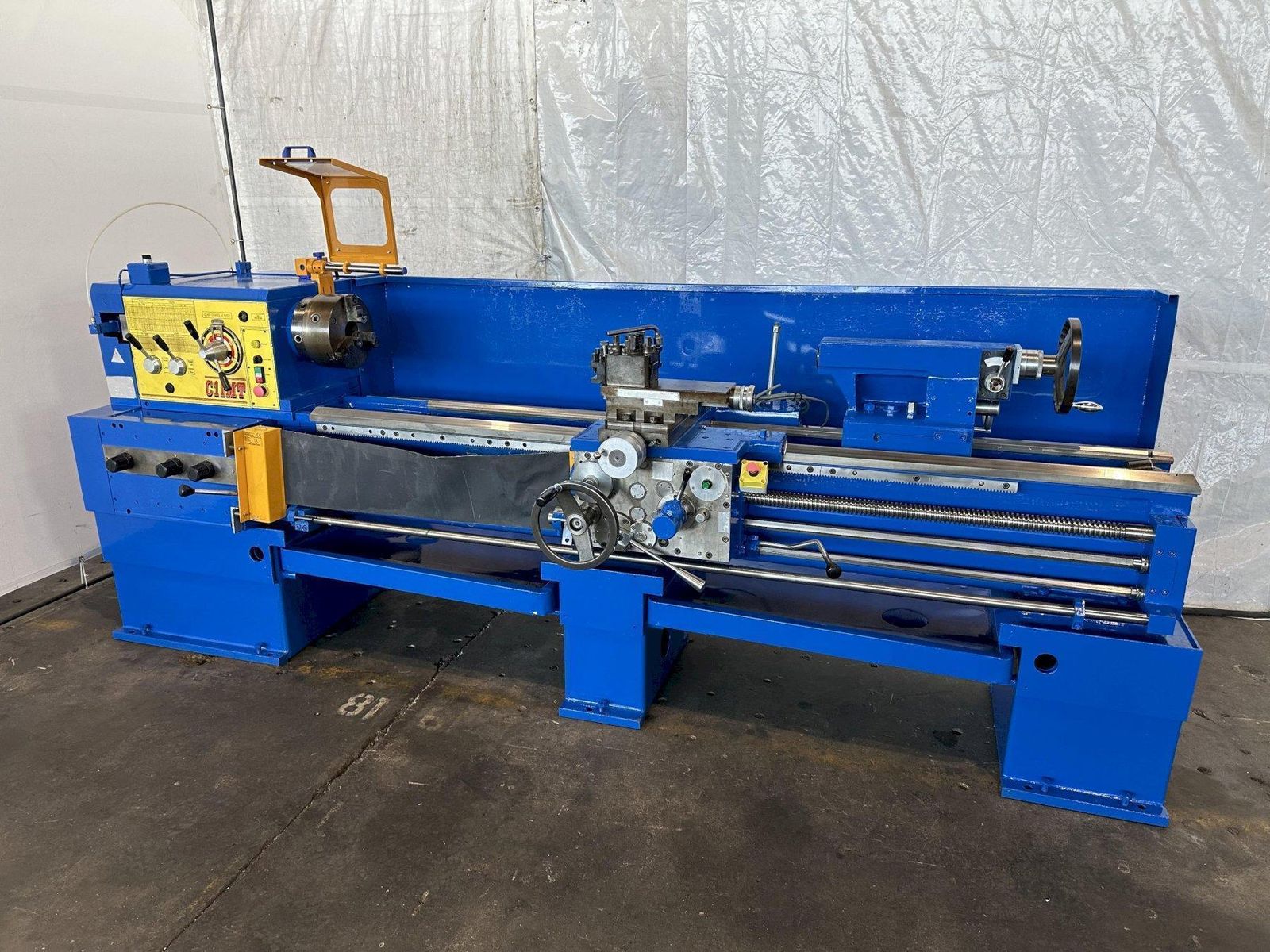

24" X 78" MASHTROY MODEL #C11MT GAP BED ENGINE LATHE, 3" HOLE: STOCK #17236

Stock #: 17236

Equipped With

SERIAL .................... 17904
MODEL ..................... C11MT
YEAR OF MFG ............... 1998
SWING OVER BED ............ 24"
SWING OVER SLIDE .......... 15.75"
SWING IN GAP .............. 31"
DISTANCE BETWEEN CENTERS .. 78.75"
SPINDLE BORE .............. 3.14"
SPINDLE SPEEDS ............ (16) 11.5 TO 2,000 RPM
# OF FEEDS ................ 160
METRIC THREADS ............ (80) .25 TO 120 MM
US IMPERIAL THREADS ....... (80) 1/4 TO 120 TPI
CROSS SLIDE TRAVEL ........ 12.5"
QUILL TAPER ............... #5 MT
QUILL TRAVEL .............. 9"
CHUCK ..................... 10" 3 JAW
MOTOR ..................... 7.5 HP
