Overview

MODEL ...................... G2472
TABLE SIZE ................. 24" x 72"
LONGITUDINAL TABLE TRAVEL .. 84"
CROSS SPINDLE HEAD TRAVEL .. 27"
VERTICAL CAPACITY .......... 30" UNDER 20" WHEEL
TABLE SPEEDS ............... 125 FPM MAXIMUM
CROSS FEED (INTERMITTENT) .. 1/32" TO 3"
GRINDING WHEEL ............. 20" x 6"
CHUCKS ..................... (2) 24" x 36" Electro Magnetic
CHUCK CONTROL .............. VARIABLE
DRESSER .................... OVER THE WHEEL
COOLANT SYSTEM ............. YES
SPLASH GUARDS .............. YES
MOTOR ...................... 60 HP

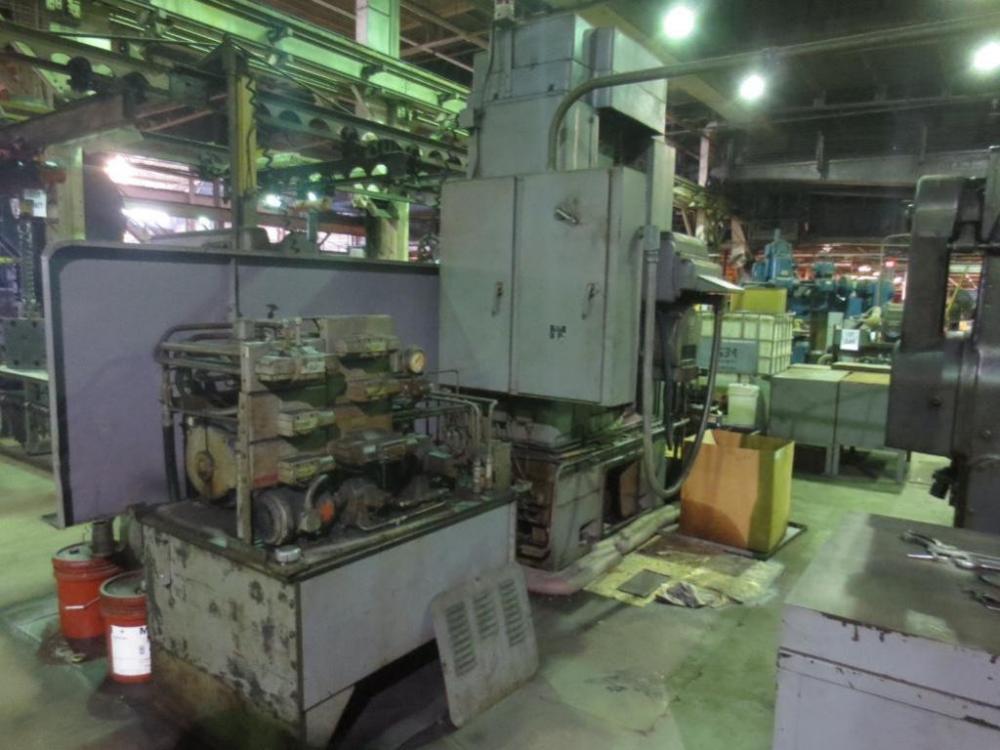

24" X 72" MATTISON HYDRAULIC SURFACE GRINDER STOCK #10890

Brand
MATTISON

Type
Grinders, Surface, Rotary

Stock No.
10890

Related Listings

419-269-2000
10559 Geiser Road
Holland, OH 43528

Machine Information

24" X 72" MATTISON HYDRAULIC SURFACE GRINDER STOCK #10890

Stock #: 10890

Equipped With

MODEL ...................... G2472
TABLE SIZE ................. 24" x 72"
LONGITUDINAL TABLE TRAVEL .. 84"
CROSS SPINDLE HEAD TRAVEL .. 27"
VERTICAL CAPACITY .......... 30" UNDER 20" WHEEL
TABLE SPEEDS ............... 125 FPM MAXIMUM
CROSS FEED (INTERMITTENT) .. 1/32" TO 3"
GRINDING WHEEL ............. 20" x 6"
CHUCKS ..................... (2) 24" x 36" Electro Magnetic
CHUCK CONTROL .............. VARIABLE
DRESSER .................... OVER THE WHEEL
COOLANT SYSTEM ............. YES
SPLASH GUARDS .............. YES
MOTOR ...................... 60 HP
