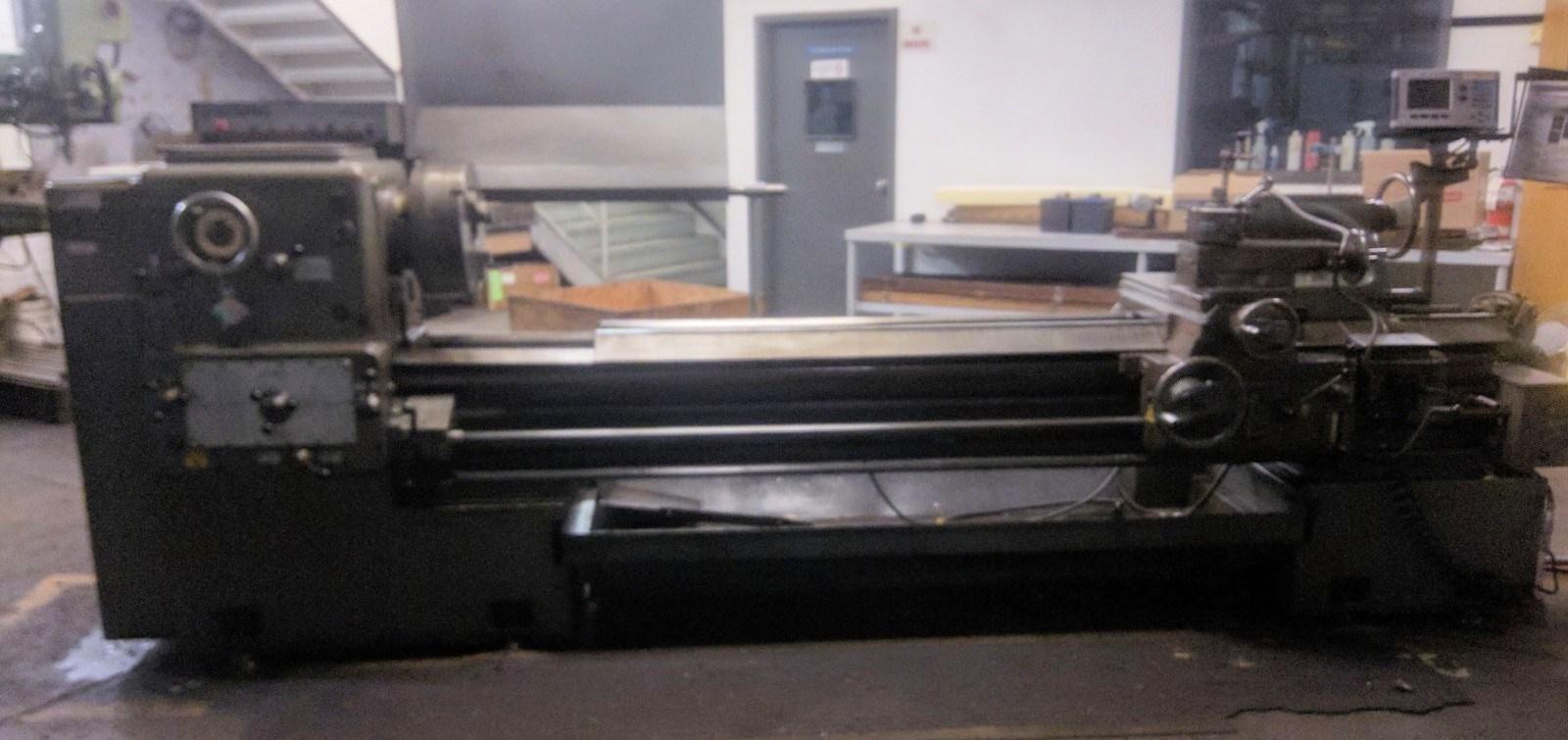

24" X 72" GRAZIANO SAG 22 ENGINE LATHE: STOCK #11342

Stock #: 11342

Equipped With

SERIAL ............................ 97052
MODEL ............................. SAG 22
SWING OVER BED .................... 24"
SWING OVER CROSS SLIDE ............ 15"
DISTANCE BETWEEN CENTERS .......... 102"
SPINDLE HOLE ...................... 3.25"
SPINDLE SPEEDS .................... (13) 30 TO 1500 RPM
STANDARD THREADS .................. 3 TO 44 TPI
STANDARD FEEDS .................... .00186 TO .02854 IPR
METRIC THREADS .................... .375 TO 5.5 MM
METRIC FEEDS ...................... .00118 TO .0968 MMPR
MODULAR THREADS ................... .25 TO 2.75
THREAD DIAL ....................... YES
RAPID TRAVERSE .................... YES
CHIP PANS WITH COOLANT ............ YES
CHUCK ............................. 14.5" 3 JAW
ACCURITE DIGITAL READ OUTS ........ 2 AXIS
MOTOR ............................. 30 HP
