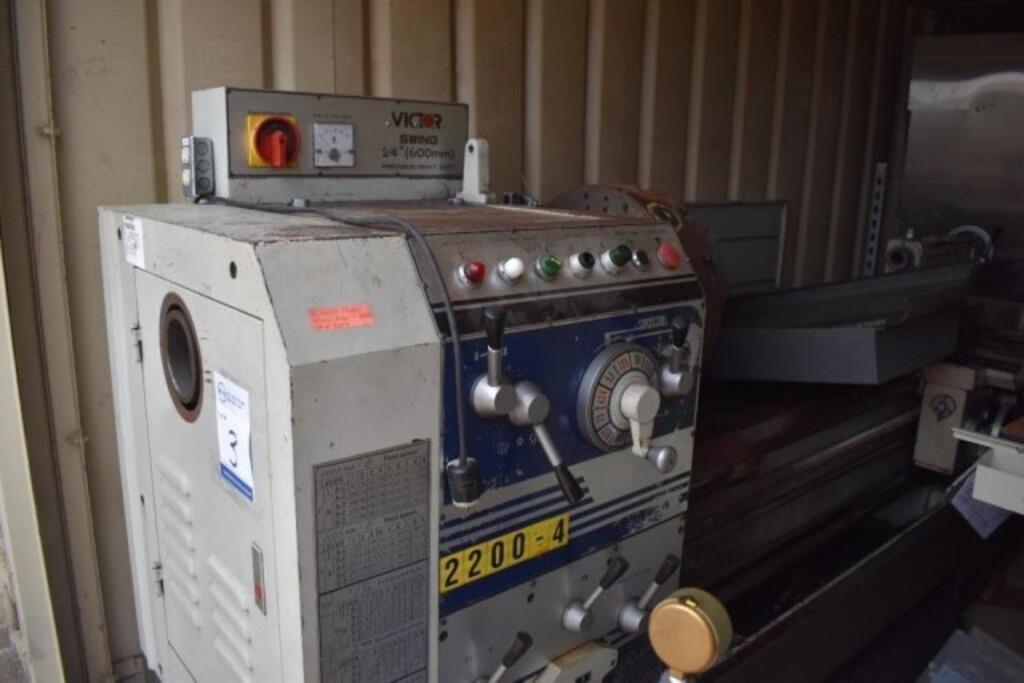

Stock #: 16861
Manufacturer: VictorModel: 2460TSerial: 0359
Swing over bed 23-5/8"Swing over cross slide 15"Swing over gap 32-1/4"Bed width 16-1/2"Spindle bore diameter 4.13"Spindle bore taper 108 x 1 : 20Taper of center in sleeve M.T. #5Spindle nose D1-11Number of spindle speeds 12 StepsRange of spindle speeds 25 ~ 1,200 rpmSpeed selections 25, 38, 53, 75, 108, 149, 214, 308, 424, 603, 860, 1200Range of longitudinal feeds 0.0012" ~ 0.0287"/rev.Range of cross feeds 0.0004" ~ 0.0118"/rev.Inch threads 2 ~ 56 TPI x 45 kindsMetric threads0.5 ~ 14 mm x 31 kindsCross slide travel 13"Compound slide travel 8-1/4"Tailstock taper center M.T. #5Tailstock quill travel 7"Main motor 20 HP 3 PhaseCoolant pump 1/8 HP
Features:
- High precision hardened and ground spindle
- Hardened and precision ground induction bedways with high tension mechanize casting iron
- The spindle is supported by 3 bearings (2 taper roller bearings and one ball bearing)
- 4-1/8" large spindle bore with D1-11 camlock spindle nose
- Rapid and positive magnetic disc brake system is operated by emergency switch control or foot brake
- All running parts are lubricated by a pressure pump in gearbox
- Sliding, surfacing, and screw-cutting motions are fully interlocked in the apron
- A cone-clutch device in the apron to prevent overload
- Dual speed tailstock quill (ratio 1:1 and 1:4) provides easy drilling operation
- 4-way power rapid traverse
- Ampere meter for power consumption monitoring
- Jog button for easy spindle speed changes
- 20 HP main motor
Standard Accessories:
- Removable gap
- Tailstock with duo speed quill
- Coolant system
- Chuck cover with limit switch
- D.P. / module thread change gears
- Threading dial indicator
- Dead center M.T. #5
- Leveling screws and pads
- Manual and parts list
Machine Includes:
- Steady rest with rollers
- 4-way tool post
- Face plate
- Micro bed stop
- Halogen work light
- Chuck cover w/ limit switch
Stock # 16861
Features: Standard Accessories: Machine Includes:Manufacturer: Victor
Model: 2460T
Serial: 0359
Swing over bed 23-5/8"
Swing over cross slide 15"
Swing over gap 32-1/4"
Bed width 16-1/2"
Spindle bore diameter 4.13"
Spindle bore taper 108 x 1 : 20
Taper of center in sleeve M.T. #5
Spindle nose D1-11
Number of spindle speeds 12 Steps
Range of spindle speeds 25 ~ 1,200 rpm
Speed selections 25, 38, 53, 75, 108, 149, 214, 308, 424, 603, 860, 1200
Range of longitudinal feeds 0.0012" ~ 0.0287"/rev.
Range of cross feeds 0.0004" ~ 0.0118"/rev.
Inch threads 2 ~ 56 TPI x 45 kinds
Metric threads
0.5 ~ 14 mm x 31 kinds
Cross slide travel 13"
Compound slide travel 8-1/4"
Tailstock taper center M.T. #5
Tailstock quill travel 7"
Main motor 20 HP 3 Phase
Coolant pump 1/8 HP
