Machine Information

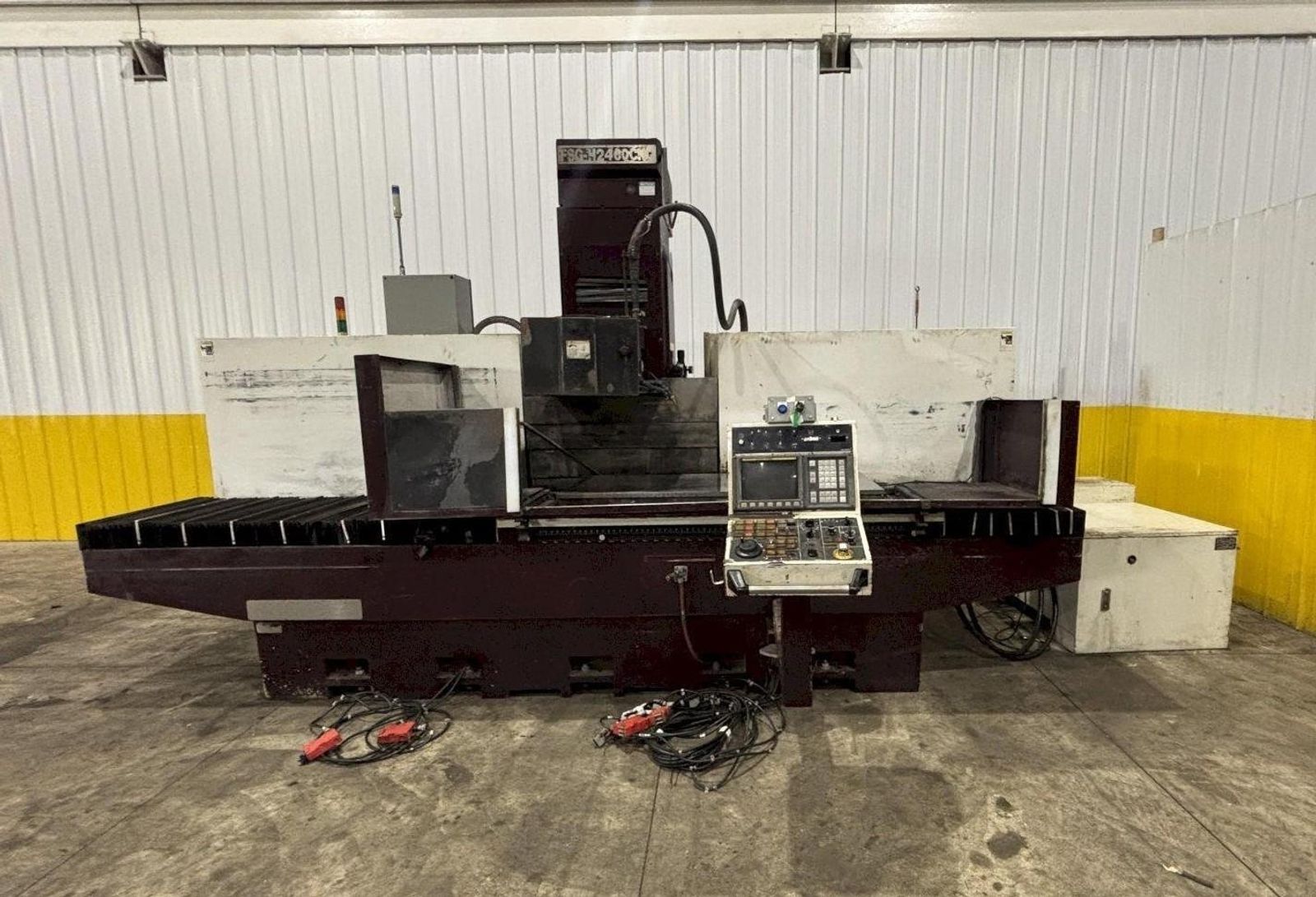

24" X 60" FALCON CHEVALIER MODEL #FSG2460 CNC HORIZONTAL SURFACE GRINDER: STOCK #22791

Stock #: 22791

Equipped With

MODEL .......................... FSG 2460 CNC
TABLE SIZE ..................... 24" X 60"
GRINDING CAPACITY .............. 24" X 60"
DISTANCE SPINDLE TO TABLE TOP .. 33.46"
TABLE LOAD ..................... 3,960 LBS.
STANDARD GRINDING WHEEL ........ 16" X 3" X 5"
TABLE SPEED VARIABLE ........... 16 TO 82 FPM
RAPID TRAVEL TO WHEEL HEAD ..... 0 TO 19.7 IPM
CNC CONTROL ....................  FANUC OM
GRINDING CYCLES ................ CRISS CROSS MODE, SURFACE MODE, PLUNGE MODE, PITCH MODE
LUBRICATION .................... AUTOMATIC
WHEEL DRESSER AND COMPENSATION . AUTOMATIC
OIL COOLER ..................... HARBOR
COOLANT SYSTEM ................. YES
WAYS ........................... HARDENED AND GROUND
WHEEL HEAD MOTOR ............... 15 HP A.C.
HYDRAULIC PUMP MOTOR ........... 5 HP A.C.
