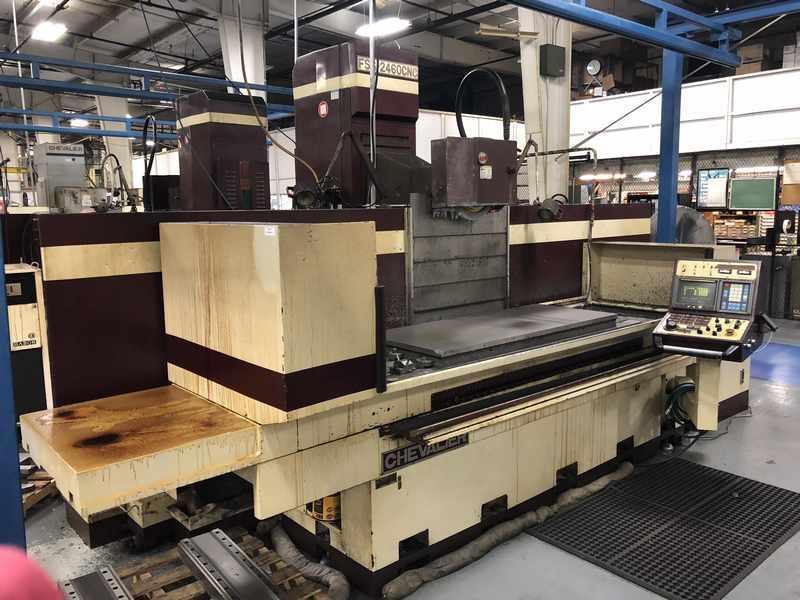

24" X 60" FALCON CHEVALIER MODEL #FSG2460 CNC HORIZONTAL SURFACE GRINDER: STOCK 13192

Stock #: 13192

Equipped With

SERIAL -------------------------------------- J2872001
MODEL --------------------------------------- FSG 2460 CNC

TABLE SIZE ---------------------------------- 24" X 60"
GRINDING CAPACITY --------------------------- 24" X 60"
DISTANCE SPINDLE CENTER TO TABLE TOP -------- 33.46"
TABLE LOAD ---------------------------------- 3,960 LBS.
STANDARD GRINDING WHEEL --------------------- 16" X 3" X 5"
TABLE SPEED VARIABLE ------------------------ 16 TO 82 FPM
RAPID TRAVEL TO WHEEL HEAD ------------------ 0 TO 19.7 IPM
FANUC OM CNC CONTROL GRINDING CYCLES -------- CRISS CROSS MODE, SURFACE MODE, PLUNGE MODE, PITCH MODE
LUBRICATION --------------------------------- AUTOMATIC
WHEEL DRESSING AND COMPENSATION ------------- AUTOMATIC
OIL COOLER ---------------------------------- HARBOR
COOLANT SYSTEM AND PAPER FILTER ------------- YES
CROSSFEED, ELEVATING LEADSCREW, GUIDE WAYS -- HARDENED AND GROUND
WHEEL HEAD MOTOR ---------------------------- 15 HP A.C.

HYDRAULIC PUMP MOTOR ------------------------ 5 HP A.C.

Buy Machines

24" X 60" FALCON CHEVALIER MODEL #FSG2460 CNC HORIZONTAL SURFACE GRINDER: STOCK 13192

Stock # 13192

Share Machine
Print Details

Machine Specifications

SERIAL -------------------------------------- J2872001
MODEL --------------------------------------- FSG 2460 CNC

TABLE SIZE ---------------------------------- 24" X 60"
GRINDING CAPACITY --------------------------- 24" X 60"
DISTANCE SPINDLE CENTER TO TABLE TOP -------- 33.46"
TABLE LOAD ---------------------------------- 3,960 LBS.
STANDARD GRINDING WHEEL --------------------- 16" X 3" X 5"
TABLE SPEED VARIABLE ------------------------ 16 TO 82 FPM
RAPID TRAVEL TO WHEEL HEAD ------------------ 0 TO 19.7 IPM
FANUC OM CNC CONTROL GRINDING CYCLES -------- CRISS CROSS MODE, SURFACE MODE, PLUNGE MODE, PITCH MODE
LUBRICATION --------------------------------- AUTOMATIC
WHEEL DRESSING AND COMPENSATION ------------- AUTOMATIC
OIL COOLER ---------------------------------- HARBOR
COOLANT SYSTEM AND PAPER FILTER ------------- YES
CROSSFEED, ELEVATING LEADSCREW, GUIDE WAYS -- HARDENED AND GROUND
WHEEL HEAD MOTOR ---------------------------- 15 HP A.C.

HYDRAULIC PUMP MOTOR ------------------------ 5 HP A.C.

Specifications
Dimensions 149"(LR) X 118"(FB) X 109"(H)
Weight 17820 pounds
