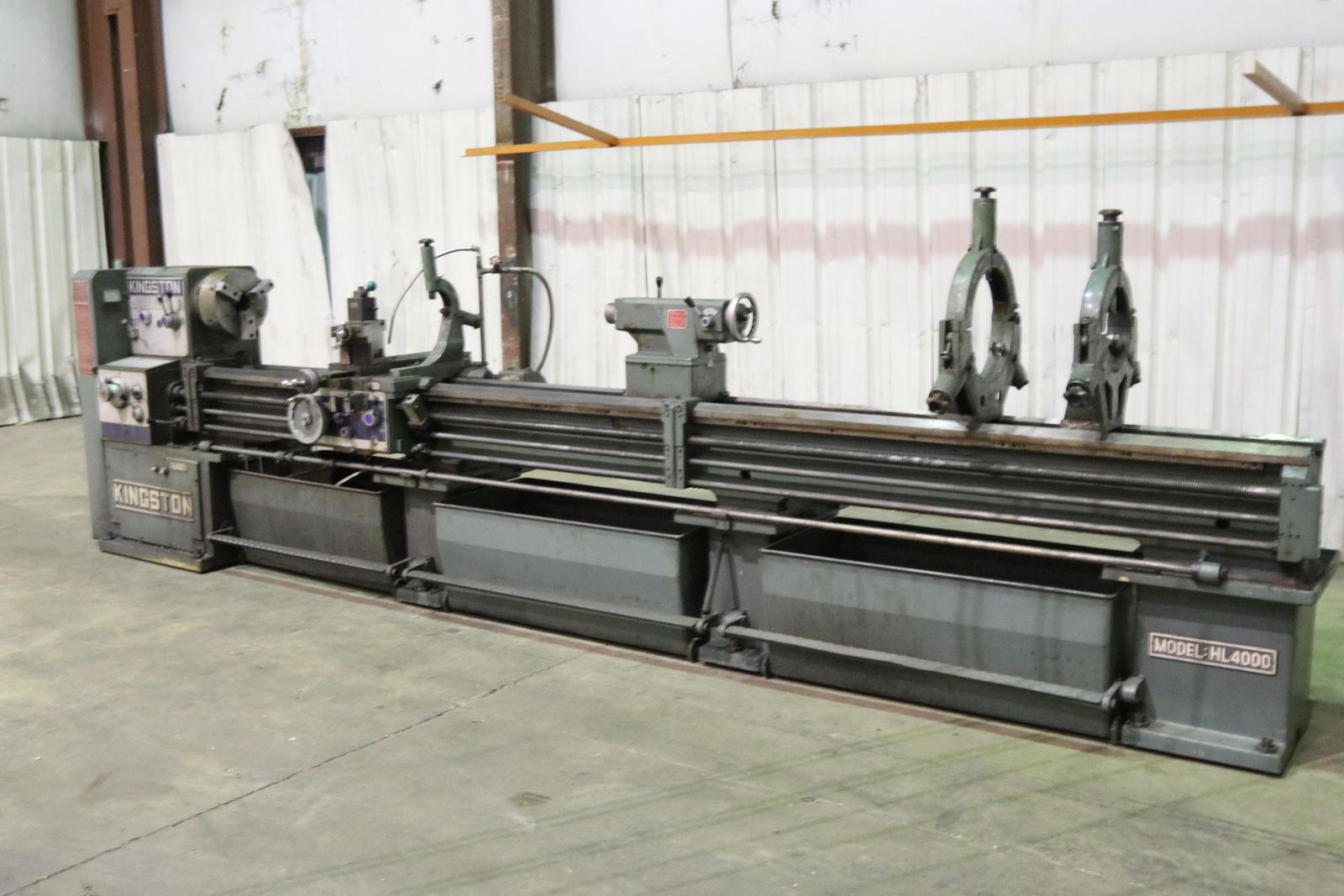

MODEL:.................. HL4000
SWING:.................. 24"
SWING OVER CROSS:....... 16.5"
SWING IN GAP:........... 31.5"
CENTERS:................ 160"
SPINDLE BORE:........... 3.12"
SPINDLE SPEEDS:......... (12) 25 TO 1500 RPM
FEEDS:.................. (76) 0.003 - 0.00424 IPR
THREADS:................ (40) 4 TO 56 TPI
METRIC THREADS:......... (20) .5 TO 7 MM
CROSS SLIDE TRAVEL:..... 14.18"
MAIN MOTOR:............. 10 HP
| Specifications | ||
|---|---|---|
| Main Motor | 10 | |
| Swing | 24 inches | |
| Centers | 160 inches | |
| Spindle Bore | 3.12 inches | |
| Power | 10 horsepower | |
| Swing Over Cross Slide | 16.5 inches | |
| CNC Control | no | |
| Dimensions | 18’ x 3’ x 5’ L x W x H | |
Brand
KINGSTON
Type
Lathes, Engine
Stock No.
10027
 |
419-269-2000 |
Stock #: 10027
MODEL:.................. HL4000
SWING:.................. 24"
SWING OVER CROSS:....... 16.5"
SWING IN GAP:........... 31.5"
CENTERS:................ 160"
SPINDLE BORE:........... 3.12"
SPINDLE SPEEDS:......... (12) 25 TO 1500 RPM
FEEDS:.................. (76) 0.003 - 0.00424 IPR
THREADS:................ (40) 4 TO 56 TPI
METRIC THREADS:......... (20) .5 TO 7 MM
CROSS SLIDE TRAVEL:..... 14.18"
MAIN MOTOR:............. 10 HP
