Machine Information

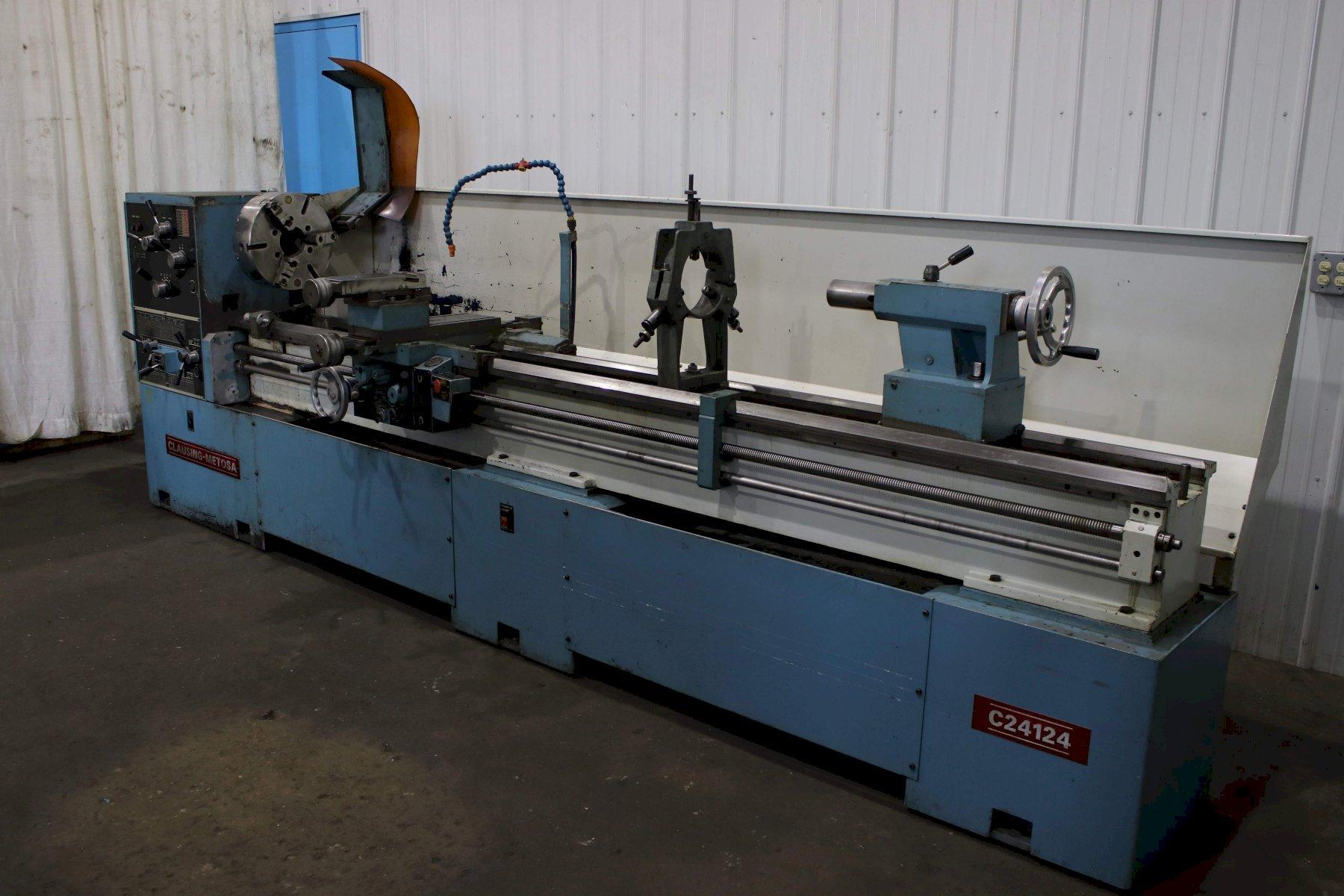

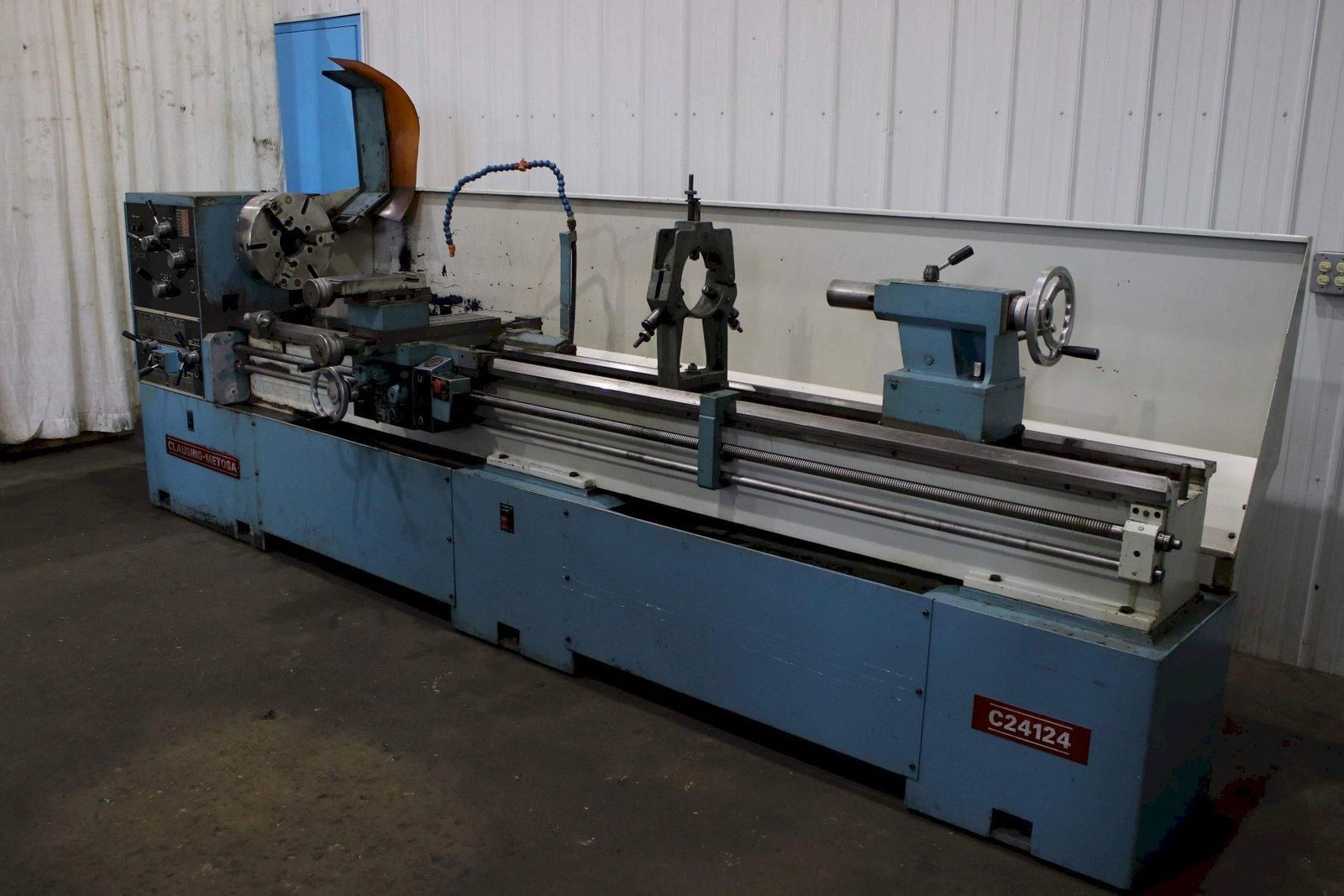

24" X 124" CLAUSING METOSA MODEL C24-124 ENGINE LATHE WITH METRIC THREADING & 3.25" HOLE: STOCK #14652

Stock #: 14652

Equipped With

SERIAL ............................. 22819
MODEL .............................. C24-124
SWING OVER WAYS .................... 24"
DISTANCE BETWEEN CENTERS ........... 124"
SPINDLE SPEEDS ..................... (16) 45 TO 1600 RPM
DIAMETER OF SPINDLE HOLE ........... 3-1/4"
CHUCK .............................. 18" 3 JAW
THREAD DIAL ........................ YES
STEDY REST ......................... ROLLER TYPE
SIZE OF TAPER IN TAIL STOCK ........ #5 MT
HARDEN WAYS ........................ YES
FORWARD & REVERSING ................ YES
COOLANT ............................ YES
MOTOR .............................. 12.5 HORSEPOWER

Buy Machines

24" X 124" CLAUSING METOSA MODEL C24-124 ENGINE LATHE WITH METRIC THREADING & 3.25" HOLE: STOCK #14652

Stock # 14652

Share Machine
Print Details

Machine Specifications

SERIAL ............................. 22819
MODEL .............................. C24-124
SWING OVER WAYS .................... 24"
DISTANCE BETWEEN CENTERS ........... 124"
SPINDLE SPEEDS ..................... (16) 45 TO 1600 RPM
DIAMETER OF SPINDLE HOLE ........... 3-1/4"
CHUCK .............................. 18" 3 JAW
THREAD DIAL ........................ YES
STEDY REST ......................... ROLLER TYPE
SIZE OF TAPER IN TAIL STOCK ........ #5 MT
HARDEN WAYS ........................ YES
FORWARD & REVERSING ................ YES
COOLANT ............................ YES
MOTOR .............................. 12.5 HORSEPOWER
