SERIAL .................... OY 1805
MODEL ..................... PS310-S24
NEW ....................... 1979
CAPACITY .................. 24' X .25"
LENGTH OF ROLLS ........... 24'6"
TOP ROLL DIAMETER ......... 14.5”
BOTTOM ROLLS DIAMETER ..... 12.25”
DROP END .................. HYDRUALIC
BOTTOM ROLLS .............. INDIVIDUAL HYDRAULIC ADJUSTMENT
PENDANT CONTROL ........... YES
MOTOR ..................... 20 HP
| Specifications | ||
|---|---|---|
| Dimensions | 33’ Long x 61” Wide x 78” H | |
| Weight | 50000 pounds | |

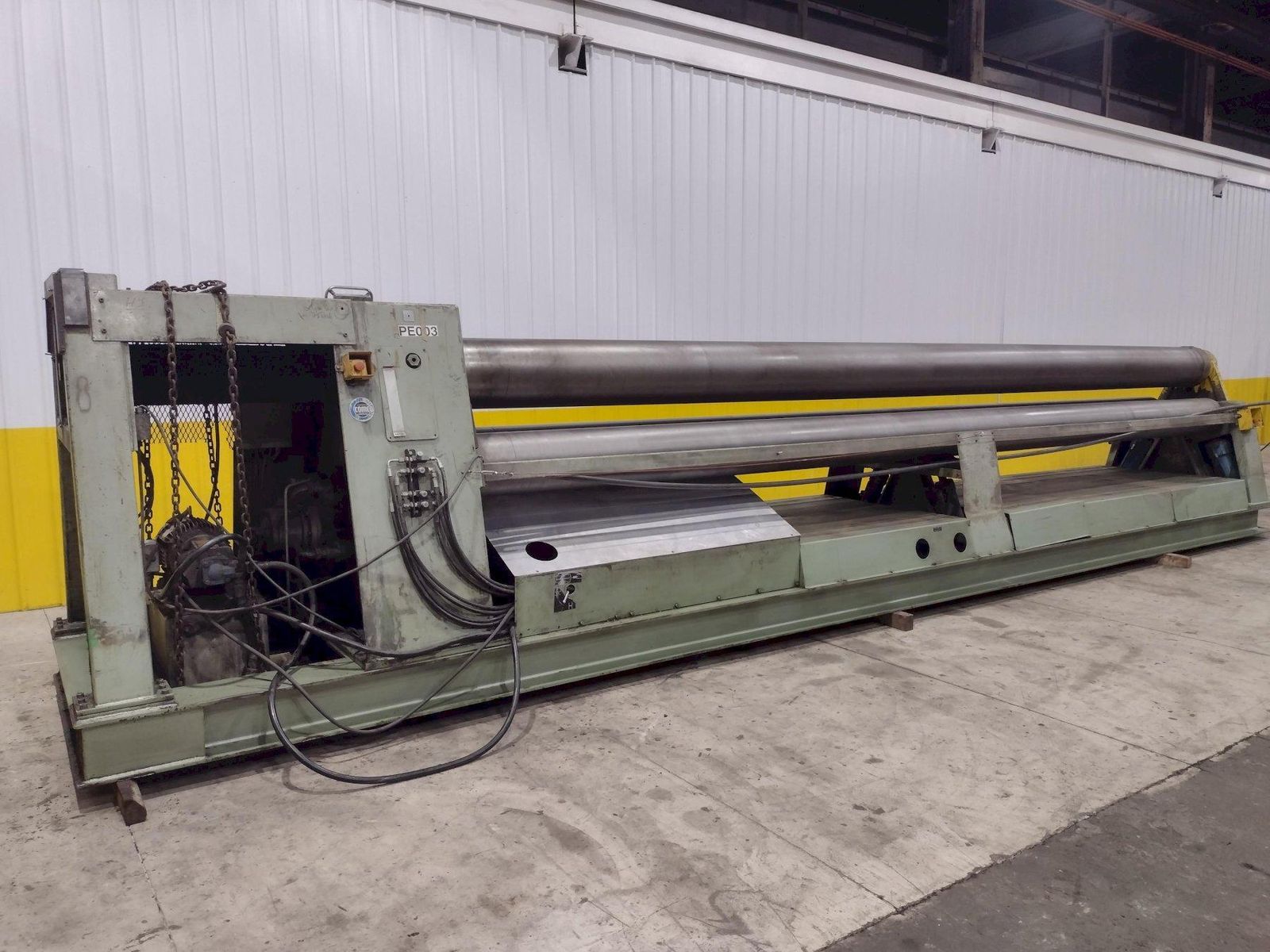

Brand
ROUNDO
Type
Rolls, Plate Bending (incld Pinch)
Stock No.
21849
 |
419-269-2000 |
Stock #: 21849
SERIAL .................... OY 1805
MODEL ..................... PS310-S24
NEW ....................... 1979
CAPACITY .................. 24' X .25"
LENGTH OF ROLLS ........... 24'6"
TOP ROLL DIAMETER ......... 14.5”
BOTTOM ROLLS DIAMETER ..... 12.25”
DROP END .................. HYDRUALIC
BOTTOM ROLLS .............. INDIVIDUAL HYDRAULIC ADJUSTMENT
PENDANT CONTROL ........... YES
MOTOR ..................... 20 HP
